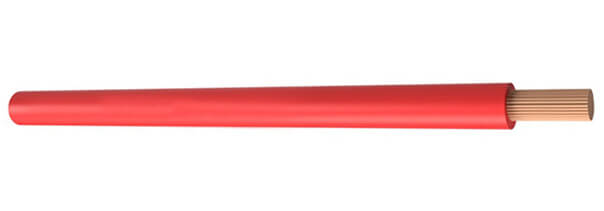

FLR Automotive Cable Description
FLR cables are available with insulation materials including PVC, polyamide, silicone rubber, XLPE, and EVA, depending on the application. They are flexible, flame-retardant, and resistant to acids, oils, gasoline, diesel, and UV rays.
FLLR cables offer excellent cold-weather resistance, with a minimum operating temperature of -40°C. They also provide heat resistance from +85°C to over 200°C. For higher heat resistance and thermal stress resistance, FLRYW cables are available, while cold-weather cables are called FLRYK.
FLLR cables are suitable for low-voltage wiring in automobiles, motorcycles, and other motor vehicles, including wiring harnesses, engine compartments, and lighting systems.
FLR Automotive Cable Construction
| FLRY-A Cable | FLRYY Truck Cable | FLRYK Cable | FLRYW-A Cable | FLRYW-B Cable | FLRYWd Cable | FLRYDY Cable | FLRYWK Cable | |
|---|---|---|---|---|---|---|---|---|
| Conductor | Flexible copper conductor, plain or tinned (concentric lay) | Fine-wire bare copper conductor | Cu-ETP1 Bare Copper | Cu-ETP1 Bare Copper (Type A) | Cu-ETP1 Bare Copper (Type B) | Cu-ETP1 Bare Copper | Bare Copper ETP1 | |
| Insulation | PVC (Polyvinyl Chloride) (thin wall) | Cold-resistant special PVC (Polyvinyl Chloride) | PVC (Polyvinyl Chloride) | |||||
| FLR2X-A Cable | FLR2X-B Cable | FLR4Y-A Cable | FLR5Y-A Cable | FLR5Y-B Cable | FLR6Y-A Cable | FLR6Y-B Cable | |
|---|---|---|---|---|---|---|---|
| Conductor | Annealed stranded copper (Type A) | Annealed stranded copper (Type B) | Cu-ETP1 Bare Copper | Silver Plated Copper (Type A) | Silver Plated Copper (Type B) | Cu-ETP1 Bare Copper (Type A) | Cu-ETP1 Bare Copper (Type B) |
| Insulation | XLPE (Cross-Linked Polyethylene) | PA (Polyamide) | PTFE (Polytetrafluoroethylene) | FEP (Tetrafluoroethylene hexafluoropropylene) | |||
| FLR7Y-A Cable | FLR7Y-B Cable | FLR9Y-A Cable | FLR9Y-B Cable | FLR12Y-A Cable | FLR12Y-B Cable | |
|---|---|---|---|---|---|---|
| Conductor | Cu-ETP1 Bare Copper (Type A) | Cu-ETP1 Bare Copper (Type B) | Cu-ETP1 Bare Copper (Type A) | Cu-ETP1 Bare Copper (Type B) | Bare Copper ETP1 (Type A) | Bare Copper ETP1 (Type B) |
| Insulation | ETFE (Ethylene Tetrafluoroethylene) | PP (Polypropylene) | TPE-E (Thermoplastic Elastomer) | |||
| FLR13Y-A Cable | FLR13Y-B Cable | FLR14Y Cable | FLR51Y-A Cable | FLR51Y-B Cable | FLR4Y-B Cable | FLRY-B Cable | |
|---|---|---|---|---|---|---|---|
| Conductor | Bare Copper ETP1 (Type A) | Sliver or Nickel plated copper | Plain, Tinned, Silver or Nickel plated copper (Type A) | Plain, Tinned, Silver or Nickel plated copper (Type B) | Cu-ETP1 Bare Copper | Flexible copper conductor, plain or tinned (concentric lay) | |
| Insulation | TPE-E (Thermoplastic Elastomer) | PFA (Perfluoroalkoxy) | PFA (Perfluoroalkoxy Alkanes) | PA (Polyamide) | PVC (Polyvinyl Chloride) (thin wall) | ||
FLR Automotive Cable Characteristics
| FLRY-A Cable | FLRYY Cable | FLRYK Cable | FLRYW-A Cable | FLRYW-B Cable | FLRYWd Cable | FLRYDY Cable | FLRYWK Cable | |
|---|---|---|---|---|---|---|---|---|
| Temperature Rating | Fixed: -40°C to +105°C | Fixed: -40°C to +85°C | -50°C to +105°C | -50°C to +125°C | -40°C to +105°C | -50°C to +105°C | ||
| FLR2X-A Cable | FLR2X-B Cable | FLR4Y-A Cable | FLR5Y-A Cable | FLR5Y-B Cable | FLR6Y-A Cable | FLR6Y-B Cable | |
|---|---|---|---|---|---|---|---|
| Temperature Rating | -40°C to +125°C | -40°C to +105°C | -40°C to +260°C | -65°C to +210°C | |||
| FLR7Y-A Cable | FLR7Y-B Cable | FLR9Y-A Cable | FLR9Y-B Cable | FLR12Y-A Cable | FLR12Y-B Cable | |
|---|---|---|---|---|---|---|
| Temperature Rating | -45°C to +180°C | -40°C to +125°C | -40°C to +150°C | |||
| FLR13Y-A Cable | FLR13Y-B Cable | FLR14Y Cable | FLR51Y-A Cable | FLR51Y-B Cable | FLR4Y-B Cable | FLRY-B Cable | |
|---|---|---|---|---|---|---|---|
| Temperature Rating | -40°C to +150°C | -80°C to +260°C | -40°C to +250°C | -40°C to +105°C | |||
FLR Automotive Cable Code according to DIN 72551
- FL: Automotive Cable
- R: Reduced thickness insulation according to DIN ISO 6722, Part 4
- Y: Soft-PVC (plasticised)
- YW: Soft-PVC (plasticised) Heat resistant and Hot Pressure resistant
- YK: Soft-PVC (plasticised) Cold resistant
- D: Copper wire spiral screen
- A: Symmetric conductor structure according to ISO 6722-1
- B: Asymmetric conductor structure according to ISO 6722-1
- 2X: Cross-linked Polyethylene (XLPE)
- 2G: Silicone Rubber (SiR)
- 4Y: Polyamide (PA)
- c: Ethylene Vinyl Acetate (EVA)
- 5Y: Polytetrafluoroethylene (PFTE)
- 6Y: Tetrafluoroethylene Hexafluoropropylene (FEP)
- 7Y: Ethylene Tetrafluoroethylene (EFTE)
- 9Y: Polypropylene (PP)
- 12Y: Thermoplastic Polyester Elastomer (TPE-E)
- 13Y: Thermoplastic Polyester Elastomer (TPE-E) – Limited hydrolysis resistance
- 14Y: Perfluoroalkoxy Alkanes (PFA)
- 51Y: Perfluoroalkoxy Alkanes (PFA)
- FLRY-A Cable

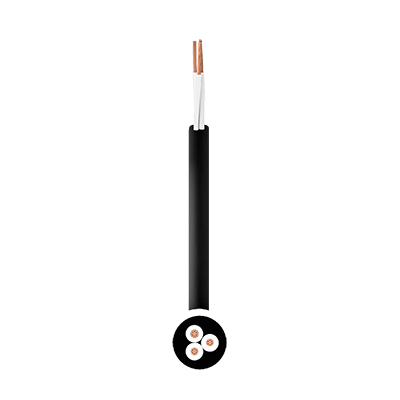

- FLRYY Truck Cable

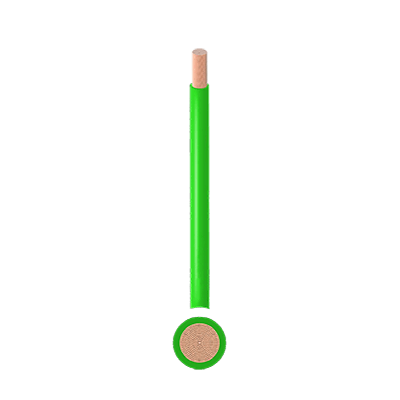

- FLRYK Cable
- FLRYW-A Cable
- FLRYW-B Cable

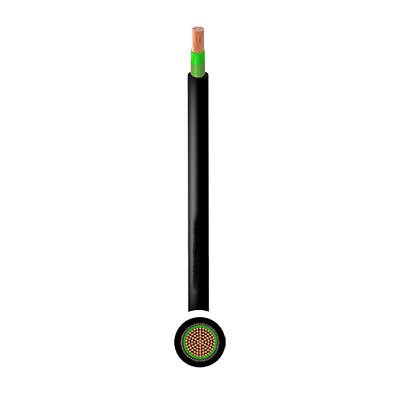

- FLRYWd Cable
- FLRYDY Cable

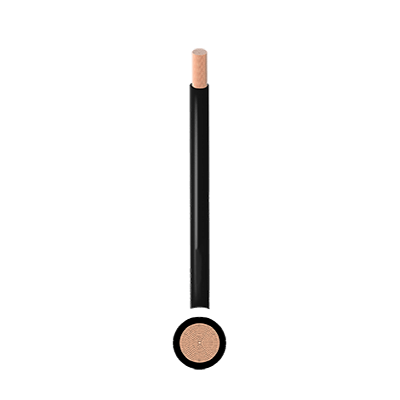

- FLRYWK Cable
- FLR2X-A Cable

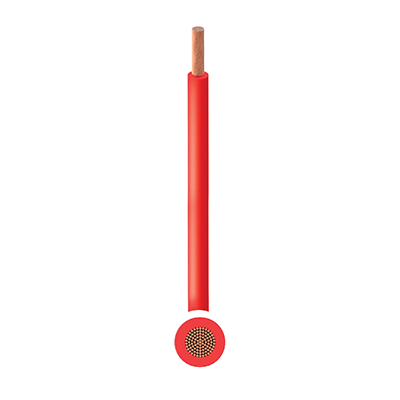

- FLR2X-B Cable

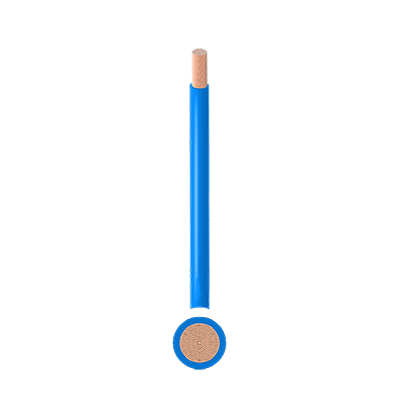

- FLR4Y-A Cable
- FLR5Y-A Cable
- FLR5Y-B Cable
- FLR6Y-A Cable
- FLR6Y-B Cable

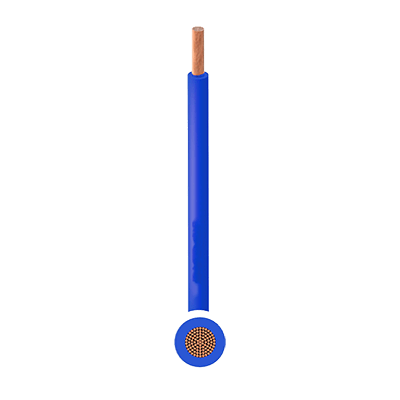

- FLR7Y-A Cable
- FLR7Y-B Cable
- FLR9Y-A Cable

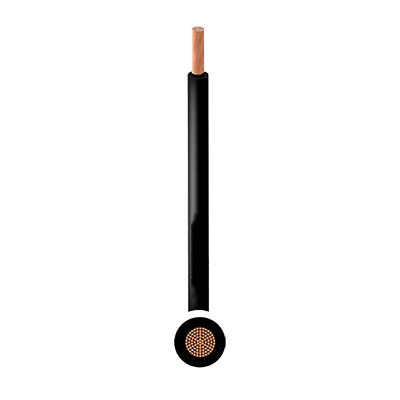

- FLR9Y-B Cable

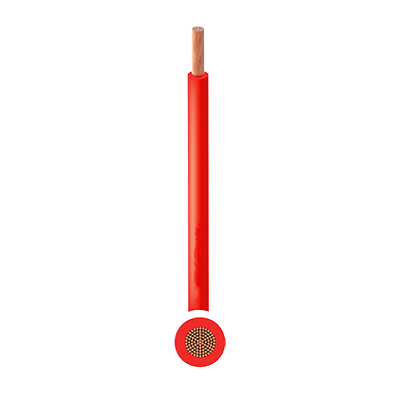

- FLR12Y-A Cable
- FLR12Y-B Cable
- FLR13Y-A Cable
- FLR13Y-B Cable
- FLR14Y Cable
- FLR51Y-A Cable

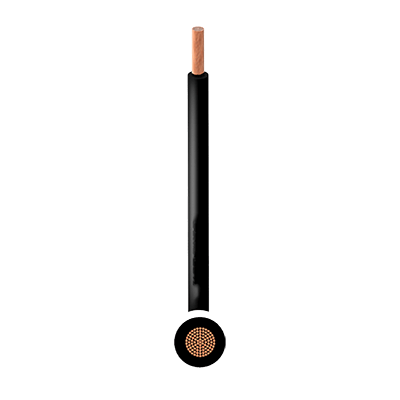

- FLR51Y-B Cable
- FLR4Y-B Cable

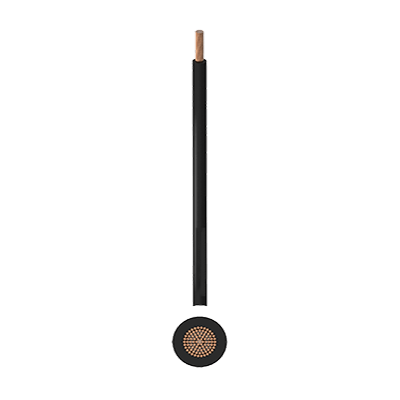

- FLRY-B Cable
| NOMINAL CROSS SECTIONAL AREA mm² | NO. OF STRANDS | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 0.22 | 7 | 1.2 | 3.2 |
| 0.35 | 7 | 1.3 | 4.4 |
| 0.5 | 19 | 1.6 | 6.3 |
| 0.75 | 19 | 1.9 | 9.3 |
| 1 | 19 | 2.1 | 11.8 |
| 1.5 | 19 | 2.4 | 16.8 |
| 2 | 19 | 2.6 | 21.9 |
| 2.5 | 19 | 3 | 26.2 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | AWG NO. | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | 0.5 | 20 | 4.8 | 40 |
| 2 | 1 | 17 | 6 | 56 |
| 2 | 1 | 17 | 6 | 56 |
| 2 | 1.5 | 16 | 6.6 | 66 |
| 2 + 2 | 0.75 + 1.5 | 18 | 7 | 91 |
| 3 | 0.75 | 17 | 5.3 | 52.4 |
| 3 | 1 | 17 | 6.3 | 66 |
| 3 + 4 | 2.5 + 1.5 | 14 | 10.3 | 221 |
| 4 | 1 | 17 | 6.8 | 80 |
| 4 | 1.5 | 16 | 7.5 | 106 |
| 4 + 1 | 6 + 1.5 | 18 | 13.7 | 411 |
| 5 | 1 | 17 | 7.5 | 98 |
| 5 + 1 | 1 + 2.5 | 17 | 9 | 132 |
| 7 | 0.75 | 18 | 7.3 | 101 |
| 7 | 1.5 | 16 | 10.3 | 185 |
| 8 + 5 | 1.5 + 2.5 | 16 | 14.8 | 360 |
| 9 + 4 | 1.5 + 2.5 | 16 | 14.8 | 350 |
| 10 + 3 | 1.5 + 2.5 | 16 | 12.5 | 366 |
| 10 + 3 + 2 | 1.5 + 2.5 + 1.5 | 16 | 14.4 | 393 |
| 11 + 3 | 1.5 + 2.5 | 16 | 13.5 | 365 |
| NUMBER OF CORES | NOMINAL CROSS- SECTIONAL AREA mm² | NOMINAL NO.AND DIAMETER WIRES No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL THICKNESS INSULATION WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.21 | 1 | 37.7 | 0.22 | 1.4 | 1.6 | 7 |
| 1 | 1 | 32/0.21 | 1.4 | 18.5 | 0.3 | 2.3 | 2.1 | 12 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1 | 2.5 | 50/0.26 | 2.1 | 7.6 | 0.7 | 3.5 | 3.7 | 33 |
| NO. CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND DIAMETER OF WIRES no./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS OF WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 7/0.26 | 0.8 | 54.4 | 0.2 | 1.2 | 1.3 | 5 |
| 1 | 0.5 | 19/0.19 | 1 | 37.1 | 0.22 | 1.4 | 1.6 | 7 |
| 1 | 0.75 | 19/0.23 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 19/0.26 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.25 | 19/0.30 | 1.7 | 14.9 | 0.24 | 2.1 | 2.3 | 12 |
| 1 | 1.5 | 19/0.32 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2 | 19/0.38 | 2 | 9.42 | 0.28 | 2.5 | 2.8 | 22 |
| NO. CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND DIAMETER OF WIRES no./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | MAXIMUM ELECTRICAL RESISTANCE AT 20°C mΩ/m | NOMINAL INSULATION THICKNESS OF WALL mm | NOMINAL OVERALL DIAMETER mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 54.4 | 0.2 | 1.2 | 1.4 | 5 |
| 1 | 0.5 | 16/0.21 | 1 | 37.1 | 0.22 | 1.4 | 1.6 | 6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.25 | 16/0.33 | 1.7 | 14.9 | 0.24 | 2.1 | 2.3 | 12 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1 | 2 | 28/0.31 | 2 | 9.42 | 0.28 | 2.5 | 2.8 | 24 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.28 | 2.7 | 3 | 28 |
| 1 | 3 | 45/0.31 | 2.4 | 6.15 | 0.32 | 3.1 | 3.4 | 34 |
| 1 | 4 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.4 | 3.7 | 44 |
| 1 | 5 | 65/0.33 | 3.1 | 3.94 | 0.32 | 3.9 | 4.2 | 50 |
| 1 | 6 | 84/0.31 | 3.3 | 3.14 | 0.32 | 4 | 4.3 | 64 |
| 1 | 8 | 50/0.46 | 4.3 | 2.38 | 0.32 | 4.6 | 5 | 82 |
| 1 | 10 | 38/0.41 | 4.5 | 1.82 | 0.48 | 5.4 | 5.8 | 113 |
| 1 | 12 | 96/0.41 | 5.4 | 1.52 | 0.48 | 5.8 | 6.5 | 120 |
| 1 | 16 | 126/0.41 | 5.5 | 1.16 | 0.52 | 6.5 | 7 | 171 |
| 1 | 20 | 152/0.41 | 6.9 | 0.955 | 0.52 | 7 | 7.8 | 192 |
| 1 | 25 | 196/0.41 | 7 | 0.743 | 0.52 | 7.9 | 8.7 | 255 |
| NO. CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND DIAMETER OF WIRES no./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS OF WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 7/0.26 | 0.8 | 52 | 0.2 | 1.3 | 1.4 | 4.48 |
| 1 | 0.5 | 16/0.21 | 1 | 37.1 | 0.22 | 1.4 | 1.7 | 6.6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2 | 30/0.31 | 1.9 | 9.42 | 0.28 | 2.4 | 2.8 | 22 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.28 | 2.7 | 3 | 6 |
| 1 | 3 | 45/0.31 | 2.4 | 6.15 | 0.32 | 2.9 | 3.4 | 32.5 |
| 1 | 4 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.4 | 3.8 | 42 |
| 1 | 6 | 84/0.31 | 3.3 | 3.14 | 0.32 | 4 | 4.3 | 61 |
| 1 | 10 | 80/0.41 | 4.5 | 1.82 | 0.48 | 5.4 | 6 | 108 |
| 1 | 16 | 126/0.41 | 6.3 | 1.16 | 0.52 | 7.3 | 7.9 | 170 |
| 1 | 25 | 196/0.41 | 7.8 | 0.74 | 0.52 | 8.6 | 9.4 | 265 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL THICKNESS OUTER SHEATH mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.75 | 24/0.21 | 1.2 | 0.3 | 0.3 | 2.5 | 2.7 | 20 |
| 1 | 1 | 32/0.21 | 1.35 | 0.3 | 0.3 | 2.7 | 2.9 | 23 |
| 1 | 1.5 | 30/0.26 | 1.7 | 0.3 | 0.3 | 3 | 3.2 | 29 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 16/0.20 | 1 | 0.28 | 1.4 | 1.6 | 6 |
| 1 | 1 | 32/0.20 | 1.4 | 0.3 | 1.8 | 2.1 | 57 |
| 1 | 1.5 | 30/0.25 | 1.7 | 0.3 | 2.2 | 2.4 | 111 |
| NUMBER OF CORES | NOMINAL CROSS- SECTIONAL AREA mm² | NOMINAL NO.AND DIAMETER WIRES No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL THICKNESS INSULATION WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.22 | 7/0.21 | 0.7 | 86.5 | 0.2 | 1.15 | 1.2 | 3.4 |
| 1 | 0.35 | 7/0.27 | 0.9 | 54.4 | 0.25 | 1.2 | 1.3 | 4 |
| 1 | 0.5 | 19/0.19 | 1.1 | 37.1 | 0.28 | 1.4 | 1.6 | 7 |
| 1 | 0.75 | 19/0.24 | 1.3 | 24.7 | 0.3 | 1.7 | 1.9 | 9.5 |
| 1 | 1 | 19/0.27 | 1.5 | 18.5 | 0.3 | 1.9 | 2.1 | 12 |
| 1 | 1.5 | 19/0.33 | 1.8 | 12.7 | 0.3 | 2.2 | 2.4 | 17 |
| 1 | 2 | 19/0.38 | 2 | 9.42 | 0.28 | 2.8 | 2.85 | 26 |
| 1 | 2.5 | 37/0.28 | 2.2 | 7.6 | 0.35 | 2.7 | 3 | 27 |
| NO. CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND DIAMETER OF WIRES no./mm | MAXIMUM DIAMETER OF CONDUCTOR MAX mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS OF WALL mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 52 | 0.2 | - | 1.4 | 4.5 |
| 1 | 0.5 | 16/0.21 | 1.1 | 37.1 | 0.28 | 1.4 | 1.6 | 6.5 |
| 1 | 0.75 | 24/0.21 | 1.3 | 24.7 | 0.3 | 1.7 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.5 | 18.5 | 0.3 | 1.9 | 2.1 | 12 |
| 1 | 1.5 | 30/0.26 | 1.8 | 12.7 | 0.3 | 2.2 | 2.4 | 16.5 |
| 1 | 2 | 28/0.31 | 2 | 9.69 | 0.28 | 2.65 | 2.8 | 22 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.35 | 2.7 | 3 | 27 |
| 1 | 3 | 44/0.31 | 2.4 | 6.36 | 0.32 | 3.25 | 3.4 | 35 |
| 1 | 4 | 56/0.31 | 2.8 | 4.71 | 0.4 | 3.4 | 3.7 | 43 |
| 1 | 6 | 84/0.31 | 3.4 | 3.14 | 0.4 | 4 | 4.3 | 61 |
| 1 | 10 | 80/0.41 | 4.5 | 1.82 | 0.6 | 5.3 | 6 | 108 |
| 1 | 16 | 126/0.41 | 5.8 | 1.16 | 0.65 | 6.4 | 7.2 | 161 |
| 1 | 20 | 152/0.41 | 6.3 | 0.955 | 0.65 | 7 | 7.8 | 200 |
| 1 | 25 | 196/0.41 | 7.2 | 0.743 | 0.65 | 7.9 | 8.7 | 257 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm² | NOMINAL NO. AND DIAMETER OF WIRES No./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 7/0.26 | 0.8 | 52 | 0.2 | 1.3 | 4 |
| 1 | 0.5 | 19/0.19 | 1 | 37.1 | 0.22 | 1.6 | 6 |
| 1 | 0.75 | 19/0.23 | 1.2 | 24.7 | 0.24 | 1.9 | 8 |
| 1 | 1 | 19/0.26 | 1.35 | 18.5 | 0.24 | 2.1 | 11 |
| 1 | 1.5 | 19/0.32 | 1.7 | 12.7 | 0.24 | 2.4 | 15 |
| 1 | 2.5 | 19/0.41 | 2.2 | 7.6 | 0.28 | 3 | 24 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm | NOMINAL NO. AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.22 | 7/0.21 | 0.7 | 87.9 | 0.20 | 1.1 | 1.2 | 3 |
| 1 | 0.35 | 7/0.27 | 0.8 | 56.8 | 0.20 | 1.25 | 1.35 | 5 |
| 1 | 0.5 | 19/0.19 | 1 | 38.6 | 0.22 | 1.4 | 1.6 | 6 |
| 1 | 0.75 | 19/0.24 | 1.2 | 25.7 | 0.24 | 1.7 | 1.9 | 10 |
| 1 | 1 | 19/0.27 | 1.35 | 19.3 | 0.24 | 1.75 | 1.95 | 11 |
| 1 | 1.5 | 19/0.33 | 1.7 | 13.2 | 0.24 | 2.1 | 2.3 | 17 |
| 1 | 2.5 | 19/0.41 | 2.2 | 7.92 | 0.28 | 2.5 | 2.8 | 25 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm² | NOMINAL NO. AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 87.9 | 0.2 | 1.25 | 1.35 | 5 |
| 1 | 0.5 | 16/0.21 | 1 | 56.8 | 0.22 | 1.4 | 1.6 | 6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 38.6 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.4 | 25.7 | 0.24 | 1.75 | 1.95 | 11 |
| 1 | 1.5 | 30/0.26 | 1.7 | 19.3 | 0.24 | 2.1 | 2.3 | 16 |
| 1 | 2.5 | 50/0.26 | 2.2 | 13.2 | 0.28 | 2.5 | 2.8 | 26 |
| 1 | 4 | 56/0.31 | 2.75 | 4.91 | 0.32 | 3.05 | 3.35 | 40 |
| 1 | 6 | 84/0.31 | 3.4 | 3.27 | 0.32 | 3.85 | 4.15 | 61 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm | NOMINAL NO. AND DIAMETER OF WIRES No./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 7/0.26 | 0.8 | 54.4 | 0.2 | 1.2 | 1.3 | 4 |
| 1 | 0.5 | 19/0.19 | 1 | 37.1 | 0.22 | 1.4 | 1.6 | 7 |
| 1 | 0.75 | 19/0.23 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 19/0.26 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 12 |
| 1 | 1.5 | 19/0.32 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1 | 2.5 | 19/0.41 | 2.2 | 7.6 | 0.28 | 2.7 | 3 | 27 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm² | NOMINAL NO. AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 54.4 | 0.2 | 1.2 | 1.4 | 5 |
| 1 | 0.5 | 16/0.21 | 1 | 37.1 | 0.22 | 1.4 | 1.6 | 6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 12 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.28 | 2.7 | 3 | 28 |
| 1 | 4 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.4 | 3.7 | 41 |
| 1 | 6 | 81/0.31 | 3.3 | 3.14 | 0.32 | 4 | 4.3 | 62 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm | NOMINAL NO.AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 7/0.23 | 0.8 | 52 | 0.2 | 1.2 | 1.3 | 5 |
| 1 | 0.5 | 19/0.19 | 1 | 37.1 | 0.22 | 1.4 | 1.6 | 6 |
| 1 | 0.75 | 19/0.23 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 19/0.26 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 19/0.32 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1 | 2.5 | 19/0.41 | 2.2 | 7.6 | 0.28 | 2.7 | 3 | 25 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm | NOMINAL NO.AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 54 | 0.2 | 1.2 | 1.4 | 5 |
| 1 | 0.5 | 16/0.21 | 1 | 37.1 | 0.22 | 1.4 | 1.6 | 7 |
| 1 | 0.75 | 24/0.21 | 1.2 | 24.7 | 0.24 | 1.7 | 1.9 | 10 |
| 1 | 1 | 32/0.21 | 1.35 | 18.5 | 0.24 | 1.9 | 2.1 | 12 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 18 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.28 | 2.7 | 3 | 30 |
| 1 | 4 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.4 | 3.7 | 42 |
| 1 | 6 | 84/0.31 | 3.3 | 3.14 | 0.32 | 4 | 4.3 | 62 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm² | NOMINAL NO.AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.22 | 7/0.21 | 0.7 | 86.5 | 0.2 | 1.1 | 1.2 | 3.1 |
| 1 | 0.35 | 7/0.26 | 0.7 | 55.5 | 0.2 | 1.2 | 1.3 | 4.5 |
| 1 | 0.5 | 19/0.19 | 1 | 38.2 | 0.22 | 1.4 | 1.6 | 6.6 |
| 1 | 0.75 | 19/0.23 | 1.2 | 25.4 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 19/0.26 | 1.35 | 19.1 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 19/0.32 | 1.7 | 13 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2.5 | 19/0.41 | 2.2 | 7.82 | 0.28 | 2.7 | 3 | 26 |
| 1 | 4 | 37/0.38 | 2.7 | 4.92 | 0.32 | 3.4 | 3.7 | 42 |
| 1 | 6 | 37/0.45 | 3.4 | 3.23 | 0.32 | 4 | 4.3 | 61 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm² | NOMINAL NO.AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 55.5 | 0.2 | 1.2 | 1.4 | 4.5 |
| 1 | 0.5 | 16/0.21 | 1 | 38.2 | 0.22 | 1.4 | 1.6 | 6.6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 25.4 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.35 | 19.1 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 30/0.26 | 1.7 | 13 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.82 | 0.28 | 2.7 | 3 | 26 |
| 1 | 4 | 56/0.31 | 2.75 | 4.85 | 0.32 | 3.4 | 3.7 | 42 |
| 1 | 6 | 84/0.31 | 3.3 | 3.23 | 0.32 | 4 | 4.3 | 61 |
| 1 | 10 | 80/0.41 | 4.5 | 1.85 | 0.48 | 5.6 | 6 | 118 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.22 | 7/0.21 | 0.7 | 0.2 | 1.1 | 1.2 | 3.1 |
| 1 | 0.35 | 7/0.26 | 0.7 | 0.2 | 1.2 | 1.3 | 4.5 |
| 1 | 0.5 | 19/0.19 | 1 | 0.22 | 1.4 | 1.6 | 6.6 |
| 1 | 0.75 | 19/0.23 | 1.2 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 19/0.26 | 1.35 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 19/0.32 | 1.7 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2.5 | 19/0.41 | 2.2 | 0.28 | 2.7 | 3 | 26 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 0.2 | 1.3 | 1.4 | 4.5 |
| 1 | 0.5 | 16/0.21 | 1 | 0.22 | 1.5 | 1.6 | 6.6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 0.24 | 1.8 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.35 | 0.24 | 2 | 2.1 | 11 |
| 1 | 1.5 | 30/0.26 | 1.7 | 0.24 | 2.3 | 2.4 | 16 |
| 1 | 2.5 | 50/0.26 | 2.2 | 0.28 | 2.9 | 3 | 26 |
| 1 | 4 | 56/0.31 | 2.75 | 0.32 | 3.6 | 3.7 | 42 |
| 1 | 6 | 84/0.31 | 3.3 | 0.32 | 4.2 | 4.3 | 61 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.22 | 7/0.21 | 0.7 | 0.2 | 1.1 | 1.2 | 3 |
| 1 | 0.35 | 7/0.26 | 0.8 | 0.2 | 1.2 | 1.6 | 5 |
| 1 | 0.5 | 19/0.19 | 1 | 0.22 | 1.4 | 1.6 | 6 |
| 1 | 0.75 | 19/0.23 | 1.2 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 19/0.26 | 1.35 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 19/0.32 | 1.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1 | 2 | 19/0.37 | 2 | 0.28 | 2.5 | 2.8 | 21 |
| 1 | 2.5 | 19/0.41 | 2.2 | 0.28 | 2.7 | 3 | 26 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 0.2 | 1.2 | 1.4 | 5 |
| 1 | 0.5 | 16/0.21 | 1 | 0.22 | 1.4 | 1.6 | 6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 0.24 | 1.7 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.35 | 0.24 | 1.9 | 2.1 | 12 |
| 1 | 1.5 | 30/0.26 | 1.7 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2 | 30/0.31 | 2 | 0.28 | 2.5 | 2.8 | 23 |
| 1 | 2.5 | 50/0.26 | 2.2 | 0.28 | 3.7 | 3 | 26 |
| 1 | 4 | 56/0.31 | 2.75 | 0.32 | 3.4 | 3.7 | 41 |
| 1 | 6 | 84/0.31 | 3.3 | 0.32 | 4 | 4.3 | 60 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.5 | 19/0.19 | 1 | 0.22 | 1.4 | 1.6 | 7 |
| 1 | 0.75 | 19/0.22 | 1.2 | 0.24 | 1.7 | 1.9 | 10 |
| 1 | 1 | 19/0.25 | 1.35 | 0.24 | 1.9 | 2.1 | 12 |
| 1 | 1.5 | 19/0.32 | 1.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1 | 2.5 | 19/0.40 | 2.2 | 0.28 | 2.7 | 3 | 28 |
| 1 | 4 | 56/0.30 | 2.7 | 0.32 | 3.4 | 3.7 | 45 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.13 | 7/0.16 | 0.5 | 0.2 | 1 | 1.1 | 2.4 |
| 1 | 0.14 | 7/0.16 | 0.5 | 0.2 | 1.05 | 1.1 | 2.4 |
| 1 | 0.22 | 7/0.21 | 0.7 | 0.2 | 1.1 | 1.2 | 3.1 |
| 1 | 0.35 | 7/0.26 | 0.7 | 0.2 | 1.25 | 1.3 | 4.5 |
| 1 | 0.5 | 19/0.19 | 1 | 0.22 | 1.5 | 1.6 | 6.6 |
| 1 | 0.75 | 19/0.23 | 1.2 | 0.24 | 1.75 | 1.9 | 9 |
| 1 | 1 | 19/0.26 | 1.35 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 19/0.32 | 1.7 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2.5 | 19/0.41 | 2.2 | 0.28 | 2.75 | 3 | 26 |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 0.2 | 1.25 | 1.4 | 4.5 |
| 1 | 0.5 | 16/0.21 | 1 | 0.22 | 1.5 | 1.6 | 6.6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 0.24 | 1.75 | 1.9 | 9 |
| 1 | 1 | 32/0.21 | 1.35 | 0.24 | 1.9 | 2.1 | 11 |
| 1 | 1.5 | 30/0.26 | 1.7 | 0.24 | 2.2 | 2.4 | 16 |
| 1 | 2.5 | 50/0.26 | 2.2 | 0.28 | 2.75 | 3 | 26 |
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm² | NOMINAL NO. AND DIAMETER OF WIRES No./mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | 0.35 | 12/0.21 | 0.9 | 52 | 0.2 | 1.4 | 4 |
| 1 | 0.5 | 16/0.21 | 1 | 37.1 | 0.22 | 1.6 | 6 |
| 1 | 0.75 | 24/0.21 | 1.2 | 24.7 | 0.24 | 1.9 | 8 |
| 1 | 1 | 32/0.21 | 1.35 | 18.5 | 0.24 | 2.1 | 11 |
| 1 | 1.5 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.4 | 15 |
| 1 | 2.5 | 50/0.26 | 2.2 | 7.6 | 0.28 | 3 | 24 |
| 1 | 4 | 56/0.31 | 2.75 | 4.7 | 0.32 | 3.7 | 40 |
| NOMINAL CROSS SECTIONAL AREA mm² | NO. OF STRANDS | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 0.35 | 12 | 1.4 | 4.6 |
| 0.5 | 16 | 1.6 | 6.4 |
| 0.75 | 24 | 1.9 | 9.3 |
| 1 | 32 | 2.1 | 11.9 |
| 1.5 | 30 | 2.4 | 17 |
| 2 | 30 | 2.73 | 22.2 |
| 2.5 | 50 | 3 | 26.7 |
| 3 | 45 | 3.2 | 32 |
| 4 | 56 | 3.7 | 43.2 |
| 6 | 84 | 4.3 | 62.7 |
| 10 | 80 | 6 | 104.4 |
| 16 | 126 | 7.9 | 163.1 |
| 25 | 196 | 9.4 | 248.7 |
Why Huadong Cable
Our vision is to become an internationally renowned brand in the field of cables; customer satisfaction, employee promotion, and corporate development are our service tenets; high standards, globalization, and building an international brand are our business philosophy.
About HuaDong
Henan Huadong Cable Co., Ltd. was founded in 1999 which is a joint-stock national high-tech enterprise integrating scientific research, industry and trade. Huadong Cable is deeply integrated into the "Belt and Road" construction and exports to more than 130 countries around the world, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.
HuaDong Technology
Huadong Cable focuses on technology research and development which has 60 professional personnel with senior professional titles, and has more than 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure the quality of cables.
Main Products
Our main products : marine cables, power cables, overhead cables, fireproof cables, low-smoke halogen-free cables, rubber cables, high temperature resistant cables, instrument and control cables, solar cables and other products.
ISO, SGS, BV CERTIFICATION; TECHNICAL PATENTS AND PRODUCT CERTIFICATION
TECHNICAL AND CLIENTS
130+
Export Countries
100+
Technical Patents
3 billion+
Annual Productivity
400+
Employees
