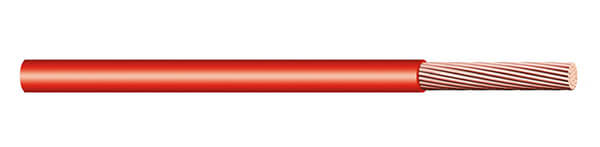

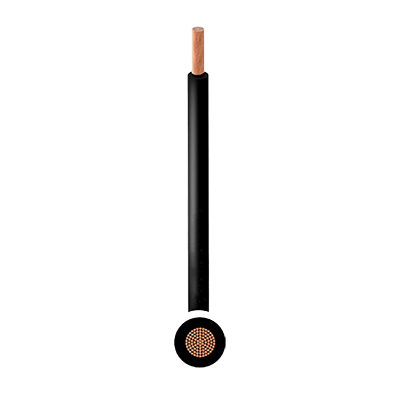

FLU6Y Cable Description
“FL” refers to automotive wire, and “U” indicates ultra-thin insulation, which uses tinned silver conductors and FEP (fluorinated ethylene propylene) insulation. The code for FEP insulation is 6Y, so this cable’s model number is FLU6Y. They are heat-resistant up to 200°C and can operate in temperatures as low as -40°C.
FLU6Y cables are primarily used in automotive applications, particularly for wiring harnesses that supply power to starting, charging, lighting, signaling, and instrument panel circuits in automobiles, motorcycles, and other motor vehicles.
FLU6Y Cable Construction
- Conductor
- Plain, tinned silver- or Nickel-plated copper
- Insulation
- FEP (Tetrafluoroethylene hexafluoropropylene)
FLU6Y Cable Characteristics
- Temperature Rating
- -40°C to +200°C
FLU6Y Cable Sheath Colour
Red, Black, Blue, Yellow, Grey, Brown, White, Violet, Green, Natural
FLU6Y Cable Specifications
| NUMBER OF CORES | NOMINAL CROSS- SECTION mm² | NOMINAL NO.AND DIAMETER OF WIRES No/mm | MAXIMUM DIAMETER OF CONDUCTOR mm | NOMINAL ELECTRICAL RESISTANCE AT 20°C MAX mΩ/m | NOMINAL INSULATION THICKNESS mm | NOMINAL OVERALL DIAMETER (MIN) mm | NOMINAL OVERALL DIAMETER (MAX) mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|---|
| 1 | 0.13 | 7/0.16 | 0.5 | 140 | 0.16 | 0.85 | 0.95 | 2.3 |
| 1 | 0.14 | 7/0.16 | 0.5 | 140 | 0.16 | 0.85 | 0.95 | 2.3 |
| 1 | 0.22 | 7/0.21 | 0.7 | 86.5 | 0.16 | 0.95 | 1.05 | 2.9 |
| 1 | 0.35 | 7/0.26 | 0.7 | 55.5 | 0.16 | 1.1 | 1.2 | 4.3 |
| 1 | 0.5 | 19/0.19 | 1 | 38.2 | 0.16 | 1.3 | 1.4 | 6.4 |
| 1 | 0.75 | 19/0.23 | 1.2 | 25.4 | 0.16 | 1.5 | 1.6 | 8.8 |
| 1 | 1 | 19/0.26 | 1.4 | 19.1 | 0.16 | 1.65 | 1.75 | 10.8 |
| 1 | 1.5 | 19/0.32 | 1.7 | 13 | 0.16 | 1.9 | 2.1 | 15.8 |
| 1 | 2.5 | 19/0.41 | 2.2 | 7.82 | 0.2 | 2.45 | 2.75 | 25.8 |
