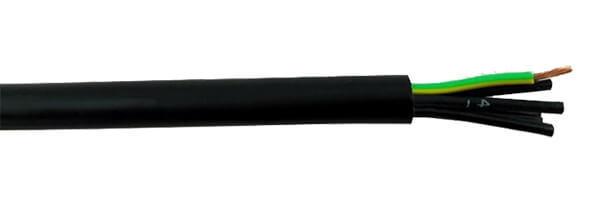

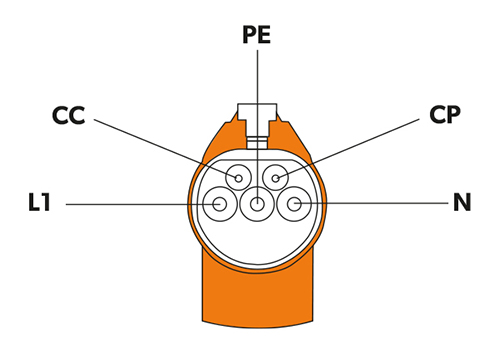

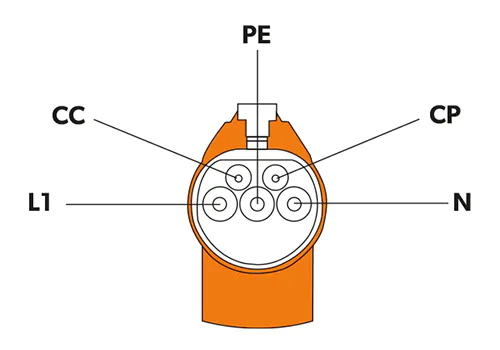

H05BZ5-F and H07BZ5-F Cable Description
H05BZ5-F and H07BZ5-F cables both feature a halogen-free polyurethane (PUR) jacket, which is durable, oil-resistant, and tear-resistant. The H05Z5-F cable is rated at 300/500V and is suitable for single-phase circuits. The H07BZ5-F cable supports three-phase charging due to its larger conductor size and a higher voltage rating of 450/750V.
H05BZ5-F and H07BZ5-F Cable Construction
- CONDUCTOR
- Class 5 flexible stranded Copper
- INSULATION
- Rubber
- LAY UP
- With Communication and Pilot cores
- OUTER SHEATH
- PUR-HF (Polyurethane Halogen Free)
H05BZ5-F and H07BZ5-F Cable Characteristics
- Voltage Rating U/Uo
- H05BZ5-F: 300/500V
- H07BZ5-F: 450/750V
- Temperature Rating
- Operating: -40°C to +90°C
- Minimum installation and use temperature: -40°C
- Maximum temperature of short circuit: +250°C
- Minimum Bending Radius
- 6 x overall diameter
H05BZ5-F and H07BZ5-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CC/CP SIGNALING | MAX CURRENT AT 30°C (A) | OVERALL DIAMETER mm | CHARGING MODE | ||
|---|---|---|---|---|---|---|---|
| SINGLE THREE | PHASE PHASE | Minimum | Maximum | ||||
| H05BZ5-F | |||||||
| 3 | 1.5 | nx0.5mm/nx1.0mm | 14 | - | 7.9 | 10.1 | 1 |
| 3 | 2.5 | nx0.5mm/nx1.0mm | 25 | - | 9.1 | 11.5 | 1 |
| H07BZ5-F | |||||||
| 3 | 1.5 | nx0.5mm/nx1.0mm | 14 | - | 8.2 | 10.5 | 2/3 |
| 3 | 2.5 | nx0.5mm/nx1.0mm | 25 | 20 | 9.3 | 11.9 | 2/3 |
| 3 | 4 | nx0.5mm/nx1.0mm | 35 | 30 | 10.8 | 13.8 | 2/3 |
| 3 | 6 | nx0.5mm/nx1.0mm | 44 | 38 | 12.3 | 15.7 | 2/3 |
| 3 | 10 | nx0.5mm/nx1.0mm | 62 | 54 | 14.8 | 19 | 2/3 |
| 3 | 16 | nx0.5mm/nx1.0mm | 82 | 71 | 17.6 | 22.6 | 2/3 |
| 3 | 25 | nx0.5mm/nx1.0mm | 109 | 94 | 21.9 | 28 | 2/3 |
| 3 | 35 | nx0.5mm/nx1.0mm | 135 | 117 | 25.7 | 32.9 | 2/3 |
| 4 | 2.5 | nx0.5mm/nx1.0mm | 25 | 20 | 10.2 | 13.1 | 2/3 |
| 4 | 4 | nx0.5mm/nx1.0mm | 35 | 30 | 11.9 | 15.2 | 2/3 |
| 4 | 6 | nx0.5mm/nx1.0mm | 44 | 38 | 13.5 | 17.3 | 2/3 |
| 4 | 10 | nx0.5mm/nx1.0mm | 62 | 54 | 16.4 | 20.9 | 2/3 |
| 4 | 16 | nx0.5mm/nx1.0mm | 82 | 71 | 19.7 | 25.2 | 2/3 |
| 4 | 25 | nx0.5mm/nx1.0mm | 109 | 94 | 24.6 | 31.5 | 2/3 |
| 4 | 35 | nx0.5mm/nx1.0mm | 135 | 117 | 28.9 | 37 | 2/3 |
| 5 | 2.5 | nx0.5mm/nx1.0mm | 25 | 30 | 11.7 | 15 | 2/3 |
| 5 | 4 | nx0.5mm/nx1.0mm | 35 | 30 | 13.2 | 17.3 | 2/3 |
| 5 | 6 | nx0.5mm/nx1.0mm | 44 | 38 | 15.4 | 19.7 | 2/3 |
| 5 | 10 | nx0.5mm/nx1.0mm | 62 | 54 | 18.3 | 23.4 | 2/3 |
| 5 | 16 | nx0.5mm/nx1.0mm | 82 | 71 | 22 | 28.1 | 2/3 |
| 5 | 25 | nx0.5mm/nx1.0mm | 109 | 94 | 27.5 | 35.2 | 2/3 |
| 5 | 35 | nx0.5mm/nx1.0mm | 135 | 117 | 32.4 | 41.5 | 2/3 |
