Mode 4 DC EV Cable

Mode 4 DC EV cables are used for high-speed DC charging of electric vehicles, typically at public charging stations.

Mode 4 DC EV Cable Description

Mode 4 DC EV cables connect the charging station’s DC power source directly to the vehicle’s battery, bypassing the onboard AC-DC converter. This significantly reduces charging time compared to AC charging.

Mode 4 DC EV cables utilize a rubber-insulated, grade 6, ultra-flexible copper conductor and include a short ground core, routed alongside the control and guide wires. The cables are covered with a halogen-free polyurethane outer jacket for robust environmental protection.

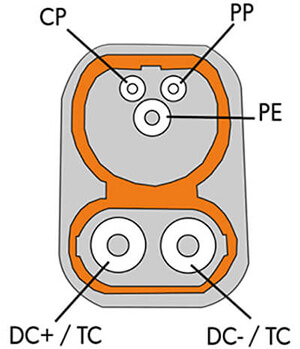

Mode 4 electric vehicle charging plug connection

Mode 4 DC EV Cable Construction

CONDUCTOR
Class 6 fine flexible stranded Copper
INSULATION
Rubber
LAY UP
With Communication and Pilot cores
OUTER SHEATH
PUR-HF (Polyurethane halogen free)

Mode 4 DC EV Cable Characteristics

Voltage Rating
1500V DC
Test Voltage
3500V DC (2000V control/pilot cores)
Temperature Range
-40ºC to +90ºC
Maximum Short Circuit Temperature
+160ºC
Minimum Bending Radius
5 x overall diameter
Maximum Tensile Load
15 N/mm²

Mode 4 DC EV Cable Applications

Mode 4 charging is commonly found at public charging stations, particularly those designed for fast charging on highways and in public areas.

Mode 4 DC EV Cable Specifications

CONSTRUCTION	CC/CP SIGNALING	MAX DC CURRENT AT 30°C	NOMINAL CABLE DIAMETER mm	CHARGING MODE	NOMINAL WEIGHT kg/km
2 x 16 + 1G16	1x(6x1)	99 A	19.3	4	700
2 x 25 + 1G16	1x(6x1)	131 A	22.1	4	950
2 x 35 + 1G16	1x(6x1)	162 A	23.8	4	1150
2 x 50 + 1G25	1x(6x1)	202 A	27.7	4	1650
2 x 70 + 1G35	1x(6x1)	250 A	32.3	4	2250
2 x 95 + 1G50	1x(6x1)	301 A	37.3	4	3000
