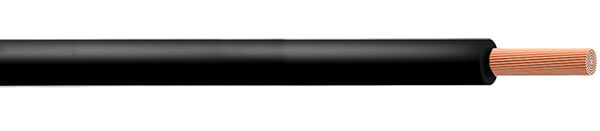

US Standard Automotive Wire Description
US Standard Automotive Wire is single-layer insulated; all cables have no additional jacketing. Depending on the automotive application requirements, the insulation material may have varying levels of resistance to heat and cold, as well as flame retardancy, gasoline and diesel fuel, brake fluid, organic media, and acids and alkalis.
US Standard Automotive Wire is designed for various low-voltage applications within vehicles, such as wiring harnesses, lighting, sensors, and signal circuit boards.
US Standard Automotive Wire Construction
| TWP Automotive Wire | GPT Automotive Wire | TXL Automotive Wire | GXL Automotive Wire | SXL Automotive Wire | HDT Automotive Wire | |
|---|---|---|---|---|---|---|
| Conductor | Soft-annealed copper | |||||
| Insulation | PVC (Polyvinyl chloride) | XLPE (Crosslinked Polyethylene | XLPO (Cross-linked Polyolefin) | PVC (Polyvinyl chloride) | ||
| SGT Automotive Wire | STX Automotive Wire | SGX Automotive Wire | WTA Automotive Wire | WXC Automotive Wire | |
|---|---|---|---|---|---|
| Conductor | Soft copper flexible conductor | Soft-annealed copper | |||
| Insulation | PVC (Polyvinyl chloride) | XLPE (Cross-Linked Polyethylene) | XLPO (Cross-Linked Polyolefin) | PVC (Polyvinyl chloride) Ultra thin wall | XLPE (Cross-linked Polyethylene) Ultra thin wall |
US Standard Automotive Wire Characteristics
| TWP Automotive Wire | GPT Automotive Wire | TXL Automotive Wire | GXL Automotive Wire | SXL Automotive Wire | HDT Automotive Wire | |
|---|---|---|---|---|---|---|
| Temperature Rating | -40°C to +80°C | -40°C to +105°C | -40°C to +125°C | -40°C to +85°C | ||
| SGT Automotive Wire | STX Automotive Wire | SGX Automotive Wire | WTA Automotive Wire | WXC Automotive Wire | |
|---|---|---|---|---|---|
| Temperature Rating | -40°C to +80°C | -40°C to +125°C | -40°C to +85°C | -40°C to +125°C | |
US Standard Automotive Wire Applications
- Lighting and Low-Voltage Circuits:
- Automotive wires are used for powering lights, turn signals, and other low-voltage components.
- Battery and Charging Systems:
- They are used for connecting batteries, alternators, and other charging system components.
- Sensors and Control Systems:
- Automotive wires are essential for connecting sensors and control units for various vehicle functions.
- Aftermarket Upgrades and Restorations:
- They are used for installing aftermarket accessories and restoring classic vehicles.

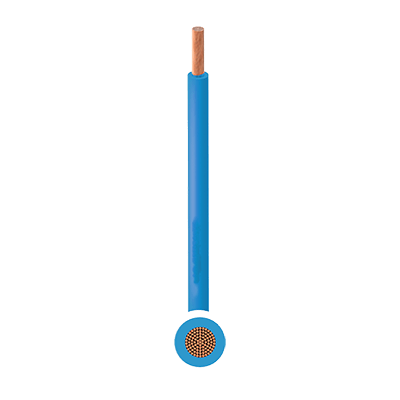

- TWP Automotive Wire

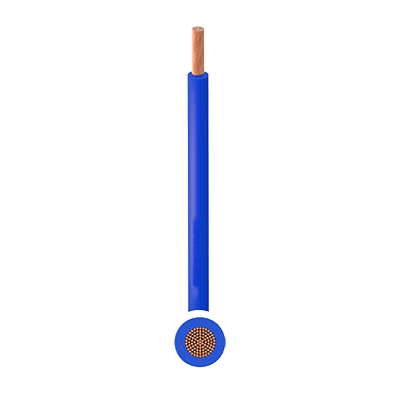

- GPT Automotive Wire
- TXL Automotive Wire
- GXL Automotive Wire
- SXL Automotive Wire
- HDT Automotive Wire

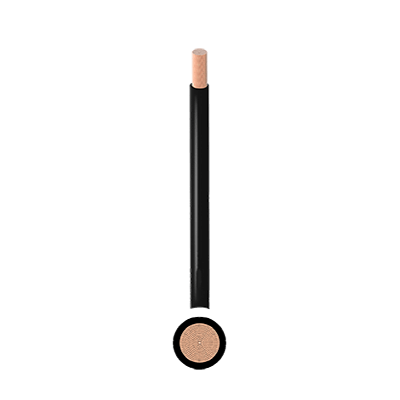

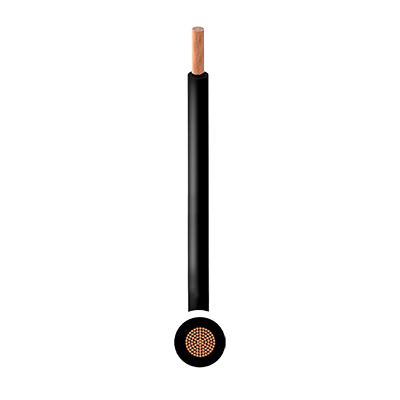

- SGT Automotive Wire
- STX Automotive Wire
- SGX Automotive Wire
- WTA Automotive Wire

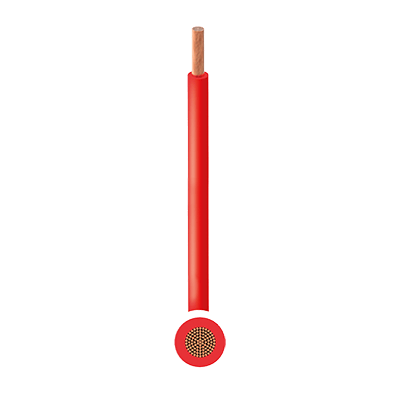

- WXC Automotive Wire
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 22 | 7/0.25 | 0.76 | 0.4 | 1.7 | 6 |
| 1 | 20 | 7/0.32 | 0.97 | 0.4 | 1.9 | 8 |
| 1 | 18 | 16/0.25 | 1.17 | 0.4 | 2.2 | 11 |
| 1 | 18 | 19/0.23 | 1.17 | 0.4 | 2.2 | 11 |
| 1 | 16 | 19/0.28 | 1.45 | 0.4 | 2.4 | 15 |
| 1 | 14 | 19/0.36 | 1.8 | 0.4 | 2.7 | 22 |
| 1 | 12 | 19/0.45 | 2.29 | 0.46 | 3.3 | 34 |
| 1 | 10 | 19/0.57 | 2.87 | 0.5 | 4 | 53 |
| 1 | 8 | 49/0.46 | 4.06 | 0.55 | 4.9 | 85 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 22 | 7/0.25 | 0.76 | 0.58 | 2.1 | 7 |
| 1 | 20 | 7/0.32 | 0.97 | 0.58 | 2.4 | 10 |
| 1 | 18 | 16/0.25 | 1.17 | 0.58 | 2.5 | 12 |
| 1 | 18 | 19/0.23 | 1.17 | 0.58 | 2.5 | 12 |
| 1 | 16 | 19/0.28 | 1.45 | 0.58 | 2.9 | 17 |
| 1 | 14 | 19/0.36 | 1.8 | 0.58 | 3.2 | 25 |
| 1 | 12 | 19/0.45 | 2.29 | 0.66 | 3.8 | 38 |
| 1 | 10 | 19/0.57 | 2.87 | 0.79 | 4.7 | 59 |
| 1 | 8 | 19/0.73 | 3.26 | 0.94 | 6 | 96 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 22 | 7/0.25 | 0.76 | 0.4 | 1.7 | 6 |
| 1 | 20 | 7/0.32 | 0.97 | 0.4 | 1.9 | 8 |
| 1 | 20 | 19/0.19 | 0.95 | 0.4 | 1.9 | 8 |
| 1 | 18 | 16/0.25 | 1.17 | 0.4 | 2.2 | 11 |
| 1 | 18 | 19/0.23 | 1.17 | 0.4 | 2.2 | 11 |
| 1 | 16 | 19/0.28 | 1.45 | 0.4 | 2.4 | 15 |
| 1 | 14 | 19/0.36 | 1.8 | 0.4 | 2.7 | 22 |
| 1 | 12 | 19/0.45 | 2.29 | 0.46 | 3.3 | 34 |
| 1 | 10 | 19/0.57 | 2.87 | 0.5 | 4 | 53 |
| 1 | 10 | 100/0.26 | 3 | 0.45 | 3.9 | 53 |
| 1 | 8 | 49/0.46 | 4.06 | 0.55 | 4.9 | 85 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 20 | 19/0.20 | 0.97 | 0.58 | 2.4 | 9 |
| 1 | 18 | 19/0.23 | 1.17 | 0.58 | 2.5 | 12 |
| 1 | 18 | 16/0.25 | 1.17 | 0.58 | 2.5 | 12 |
| 1 | 16 | 19/0.24 | 1.45 | 0.58 | 2.9 | 17 |
| 1 | 14 | 19/0.36 | 1.8 | 0.58 | 3.2 | 25 |
| 1 | 12 | 19/0.45 | 2.29 | 0.66 | 3.8 | 38 |
| 1 | 10 | 19/0.57 | 2.87 | 0.79 | 4.7 | 58 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 20 | 7/0.31 | 0.97 | 0.74 | 2.8 | 11 |
| 1 | 18 | 16/0.26 | 1.17 | 0.76 | 3 | 15 |
| 1 | 16 | 19/0.23 | 1.45 | 0.81 | 3.5 | 20 |
| 1 | 14 | 19/0.28 | 1.8 | 0.89 | 3.9 | 29 |
| 1 | 12 | 19/0.45 | 2.29 | 0.94 | 4.6 | 43 |
| 1 | 10 | 19/0.57 | 2.87 | 1.04 | 5.3 | 64 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 20 | 7/0.31 | 1 | 0.91 | 2.8 | 14 |
| 1 | 18 | 16/0.26 | 1.5 | 0.94 | 3 | 20 |
| 1 | 16 | 19/0.29 | 1.5 | 1.02 | 3.5 | 25 |
| 1 | 14 | 19/0.36 | 1.8 | 1.04 | 3.9 | 33 |
| 1 | 12 | 19/0.45 | 2.3 | 1.17 | 4.6 | 49 |
| 1 | 10 | 19/0.57 | 3 | 1.17 | 5.3 | 71 |
| 1 | 8 | 49/0.45 | 3.7 | 1.4 | 6.5 | 98 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 6 | 266/0.26 | 4.12 | 1.52 | 6.58 | 152 |
| 1 | 4 | 420/0.26 | 6.72 | 1.65 | 9.4 | 243 |
| 1 | 2 | 665/0.26 | 8.58 | 1.65 | 11.26 | 368 |
| 1 | 1 | 836/0.26 | 9.77 | 1.65 | 12.45 | 454 |
| 1 | 1/0 | 1064/0.26 | 11.1 | 1.65 | 13.78 | 568 |
| 1 | 2/0 | 1323/0.26 | 12.47 | 1.65 | 15.15 | 697 |
| 1 | 3/0 | 1666/0.26 | 14.1 | 1.98 | 17.3 | 886 |
| 1 | 4/0 | 2107/0.26 | 15.97 | 1.98 | 19.17 | 1105 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 6 | 133/0.36 | 4.83 | 1.09 | 7.8 | 147 |
| 1 | 4 | 133/0.46 | 6.09 | 1.12 | 9.5 | 230 |
| 1 | 2 | 133/0.57 | 7.67 | 1.12 | 11 | 341 |
| 1 | 1 | 259/0.46 | 8.49 | 1.12 | 12 | 421 |
| 1 | 1/0 | 1026/0.26 | 9.47 | 1.12 | 13 | 508 |
| 1 | 2/0 | 1254/0.26 | 10.47 | 1.12 | 14.5 | 613 |
| 1 | 3/0 | 1615/0.26 | 11.98 | 1.12 | 17 | 778 |
| 1 | 4/0 | 2052/0.26 | 13.4 | 1.12 | 18.5 | 978 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 6 | 133/0.36 | 4.83 | 1.52 | 8.6 | 166 |
| 1 | 4 | 133/0.46 | 6.09 | 1.65 | 10.5 | 257 |
| 1 | 2 | 133/0.57 | 7.67 | 1.65 | 12 | 373 |
| 1 | 1 | 259/0.46 | 8.49 | 1.65 | 13 | 453 |
| 1 | 1/0 | 1026/0.26 | 9.47 | 1.65 | 14.5 | 545 |
| 1 | 2/0 | 1254/0.26 | 10.47 | 1.65 | 16 | 653 |
| 1 | 3/0 | 1615/0.26 | 11.98 | 1.98 | 18.5 | 847 |
| 1 | 4/0 | 2052/0.26 | 13.4 | 1.98 | 20 | 1052 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 22 | 7/0.25 | 0.76 | 0.2 | 1.35 | 4 |
| 1 | 20 | 7/0.32 | 0.97 | 0.2 | 1.55 | 7 |
| 1 | 18 | 19/0.23 | 1.17 | 0.2 | 1.75 | 8 |
| 1 | 16 | 19/0.28 | 1.45 | 0.2 | 2.03 | 12 |
| 1 | 14 | 19/0.36 | 1.8 | 0.2 | 2.39 | 19 |
| 1 | 12 | 19/0.45 | 2.3 | 0.24 | 3 | 30 |
| NUMBER OF CORES | AWG SIZE | NOMINAL NO. AND WIRES DIAMETER No/mm | MAXIMUM CONDUCTOR DIAMETER mm | NOMINAL THICKNESS INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 22 | 7/0.25 | 0.76 | 0.2 | 1.35 | 4 |
| 1 | 20 | 7/0.32 | 0.97 | 0.2 | 1.55 | 7 |
| 1 | 18 | 19/0.23 | 1.17 | 0.2 | 1.75 | 8 |
| 1 | 16 | 19/0.28 | 1.45 | 0.2 | 2.03 | 12 |
| 1 | 14 | 19/0.36 | 1.8 | 0.2 | 2.39 | 19 |
| 1 | 12 | 19/0.45 | 2.3 | 0.24 | 3 | 30 |
