CR1-C1 Fire Resistant Cable

CR1-C1 cables are manufactured according to French standard NF C 32-310 and meet the C1 flame retardant class of NF C 32-070.

CR1-C1 Cable Description

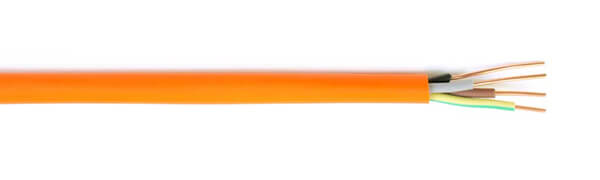

CR1-C1 cable is commonly used in emergency lighting, fire detection systems, fire extinguishing systems, and other applications where it is critical to maintain circuit integrity during a fire. It can be used for power applications or control and signal connections and has a striking orange outer jacket.

CR1-C1 Cable Construction

CONDUCTOR
Class 1 solid or Class 2 stranded Copper
INSULATION
Fire resistant Silicone rubber
OUTER SHEATH
LSZH (Low Smoke Zero Halogen)

CR1-C1 Cable Characteristics

Voltage Rating
300/500 V
Temperature Rating
Operating: -15°C to +90°C
Maximum temperature of short circuit: +350°C
Minimum Bending Radius
6 x overall diameter

CR1-C1 Cable Core Identification

2 core: Blue, Brown
3 core: Green/Yellow, Blue, Brown
4 core: Green/Yellow, Brown, Black, Grey
5 core: Green/Yellow, Brown, Black, Grey, Blue

CR1-C1 Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	CLASS OF CONDUCTOR	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	CURRENT RATING (A)
1	1.5	1	4,2	35	24
1	2.5	1	5,0	50	33
1	4	1	5,4	70	45
1	6	1	5,9	90	58
1	10	2	7,6	155	80
1	16	2	8,6	215	107
1	25	2	10,2	320	135
1	35	2	11,5	430	169
1	50	2	12,9	565	207
1	70	2	15,0	800	268
1	95	2	16,9	1070	328
1	120	2	18,8	1335	382
1	150	2	20,7	1640	443
1	185	2	23,2	2065	509
1	240	2	26,1	2710	604
1	300	2	29,0	3360	699
2	1.5	1	7,2	70	26
2	2.5	1	8,5	105	36
2	4	1	9,6	140	49
2	6	1	10,6	185	63
2	10	2	14,0	325	86
2	16	2	16,0	455	115
2	25	2	19,2	680	149
2	35	2	21,8	920	169
2	50	2	25,0	1230	230
2	70	2	29,0	1720	291
2	95	2	32,6	2280	347
3	1.5	1	7,7	95	23
3	2.5	1	9,1	135	32
3	4	1	10,2	190	42
3	6	1	11,5	265	54
3	10	2	14,9	455	75
3	16	2	17,3	650	100
3	25	2	20,7	970	127
3	35	2	23,4	1325	157
3	50	2	26,9	1760	192
3	70	2	31,1	2475	246
3	95	2	35,0	3300	298
4	1.5	1	8,6	125	23
4	2.5	1	10,1	180	32
4	4	1	11,4	250	42
4	6	1	12,6	340	54
4	10	2	16,6	590	75
4	16	2	19,2	855	100
4	25	2	23,0	1275	127
4	35	2	26,1	1735	157
4	50	2	29,8	2305	192
4	70	2	34,6	3255	246
4	95	2	38,9	4335	298
5	1.5	1	9,4	145	23
5	2.5	1	11,1	215	32
5	4	1	12,5	305	42
5	6	1	14,1	420	54
5	10	2	18,5	735	75
5	16	2	21,4	1055	100
5	25	2	25,6	1580	127
5	35	2	29,0	2145	157
5	50	2	33,1	2855	192
5	70	2	38,5	4035	246
5	95	2	43,3	5380	298
6	1.5	1	10,4	170	23
6	2.5	1	12,3	250	32
7	1.5	1	10,4	200	16
7	2.5	1	12,3	295	21
