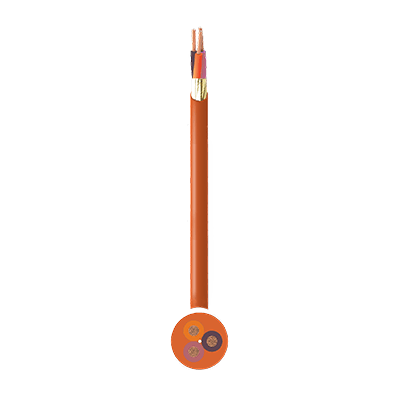

JE-H(St)H FE180-E30 Communication Cable

JE-H(St)H FE180-E30 Cable Description

Made of low-smoke halogen-free material, JE-H(St)H FE180-E30 cable can minimize toxic gases and smoke in critical evacuation areas. Its overall aluminum foil shielding (St) provides excellent protection against electromagnetic interference.

JE-H(St)H FE180-E30 cable can maintain functional integrity under flame exposure conditions of 30 minutes (E30 level). The insulation integrity of this cable is at least 180 minutes.

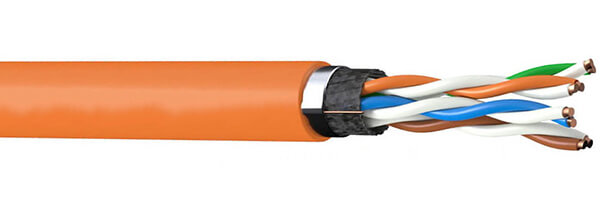

JE-H(St)H FE180-E30 Cable Construction

• Conductor
• Class 1 Solid Tinned Copper
• Insulation
• Flame Retardant Non-Corrosive compound
• Filler
• LSZH (Low Smoke Zero Halogen)
• Screen
• Plastic Coated Aluminium Foil
• Sheath
• Flame Retardant Non-Corrosive compound

JE-H(St)H FE180-E30 Cable Characteristics

• Voltage Rating
• 225V
• Maximum Operating Temperature
• Fixed: -5°C to +50°C
• Minimum Bending Radius
• Fixed: 7.5 x overall diameter

JE-H(St)H FE180-E30 Cable Applications

JE-H(St)H FE180-E30 cable is suitable for transmitting signals between electronic equipment, between computer systems of process control units and in fire-hazardous rooms with a high concentration of personnel or materials. It is suitable for indoor fixed installation in dry or humid environments.
