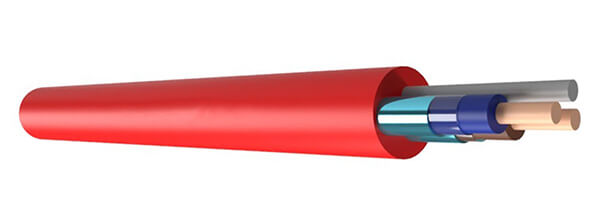

Standard & Enhanced Fire Cable

Standard and Enhanced Fire Cable is designed to maintain circuit integrity for long periods of time under fire conditions.

Standard and Enhanced Fire Cable Description

Standard and Enhanced Fire Cable is made of soft-skinned low-smoke zero-halogen (LSZH) thermoplastic compound for use in fire alarm, emergency lighting, and fire safety systems.

Standard Fire Cable is tested to BS EN 50200 for a minimum of 30 minutes (PH 30) for fire alarm circuits and 60 minutes (PH 60) for emergency lighting circuits. In addition, it is tested to Annex E (exposing the cable to a water spray) for a minimum of 30 minutes.

Enhanced Fire Cable must be tested to BS EN 50200 (PH 120) for fire alarm circuits and emergency lighting circuits for 120 minutes. It is tested to BS 8434-2 with the addition of a water spray test for a minimum of 120 minutes.

Enhanced Fire Cable offers longer survival times than standard fire cables. This is critical in some large buildings without sprinkler systems, where circuits need to run for extended periods of time to aid evacuation.

Standard and Enhanced Fire Cable Construction

	Standard Fire Resistant Cable	Enhanced Fire Resistant Cable
VOLTAGE	300/500V
CONDUCTOR	1.5mm² - 2.5mm²: Class 1 Solid Copper 4mm²: Class 2 Stranded Copper
INSULATION	High Performance Fire Resistant Silicone Rubber	Mica/Glass Fire Resistant Tape covered by high performance Fire Resistant Silicone Rubber
COLLECTIVE SCREEN	Al/PET (Aluminium/Polyester Tape)
CIRCUIT PROTECTIVE CONDUCTOR	Tinned Copper
OUTER SHEATH	LSZH (Low Smoke Zero Halogen)

Standard and Enhanced Fire Cable Characteristics

Temperature Rating
-40°C to +90°C
Minimum Bending Radius
6 x overall diameter

Standard and Enhanced Fire Cable Standards

	Standard Fire Resistance	Enhanced Fire Resistance
BS5266	X	X
BS5839-1 26.2d	X
BS5839-1 26.2e		X
BS5839-8	X
BS6387 C, W & Z	X	X
BS8434-2		X
BS8519	X	X
BS EN 50200 PH30 / PH60 / PH120	X	X
IEC 60332	X	X
IEC 60754	X	X
IEC 61034	X	X

Standard Fire Resistant Cable

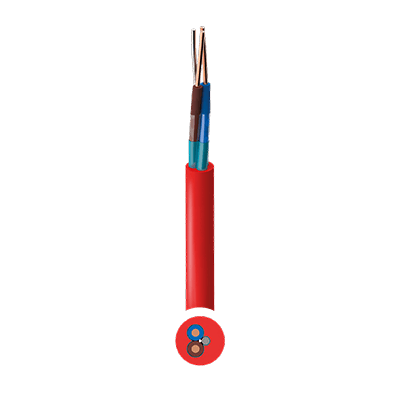

Enhanced Fire Resistant Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	EARTH WIRE CONSTRUCTION n°/mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	1.5	1/1.38	8	95
2	2.5	1/1.75	9.4	130
2	4	7/0.85	11.5	200
3	1.5	1/1.38	8.5	115
3	2.5	1/1.75	10	170
3	4	7/0.85	12.2	260
4	1.5	1/1.38	9.4	140
4	2.5	1/1.75	11	210
4	4	7/0.85	13.5	330

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	EARTH WIRE CONSTRUCTION n°/mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	1.5	1/1.38	8.8	105
2	2.5	1/1.75	10.2	150
2	4	7/0.85	12.2	220
3	1.5	1/1.38	9.3	130
3	2.5	1/1.75	10.8	190
3	4	7/0.85	13	280
4	1.5	1/1.38	10.3	165
4	2.5	1/1.38	12	240
4	4	7/0.85	14.4	350
