XOxZ1-K / XOxTCuZ1-K

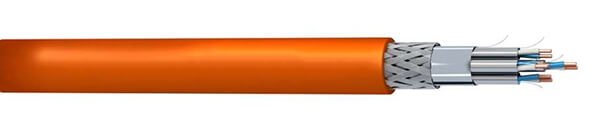

XOxZ1-K / XOxTCuZ1-K Cable Description

These cables feature flexible copper conductors, LSZH (Low Smoke Halogen-Free) insulation, and a tinned copper braided shield, providing excellent fire resistance (IEC 60331) and electromagnetic compatibility protection. XOxTCuZ1-K utilizes tinned copper braided armor for enhanced mechanical protection.

XOxZ1-K / XOxTCuZ1-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
Mica Tape + Cross-linked polyethylene
Assembly of cores
Stranded conductors in pairs
Individual screen (XO3Z1-K and XO3TCuZ1-K)
Aluminium + polyester tape with 100% coverage + tinned copper drain wire applied over the assembled cores
Assembly of pairs
Cabled in concentric layers
Collective screen
Aluminium + polyester tape with 100% coverage + tinned copper drain wire applied over the assembled pairs.
Only for XO2TCuZ1-K , the tinned copper drain wire will be removed, and the aluminium side of the tape will put in contact with the braid armour
Braid armour (XO2TCuZ1-K and XO3TCuZ1-K)
Tinned copper wire braid armour over the collective screen
Outer sheath
Low smoke halogen free thermoplastic polyolefin

XOxZ1-K / XOxTCuZ1-K Cable Characteristics

Voltage Rating
Instrumentation: 150/250 V.
Thermal performance
Maximum conductor temperature: 90°C
Maximum short-circuit temperature: 250°C (max 5 s)
Minimum service temperature: -40°C (fixed installations)
Lowest installation temperature: -15°C
Minimum bending radius
Ø ≤ 25mm 4x cable diameter
Ø > 25mm 6x cable diameter

XOxZ1-K / XOxTCuZ1-K Cable Specifications

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open Air (A)	R max. 20ºC (W/km)
XO2Z1-K
1 x 2 x 0,75	7,5	65	17,1	27,6
2 x 2 x 0,75	11,2	110	13,7	27,6
4 x 2 x 0,75	13,0	160	11,2	27,6
7 x 2 x 0,75	15,8	250	9,2	27,6
10 x 2 x 0,75	20,5	385	8,6	27,6
14 x 2 x 0,75	22,5	465	7,4	27,6
19 x 2 x 0,75	25,3	605	6,5	27,6
24 x 2 x 0,75	29,9	765	6,5	27,6
XO3Z1-K
2 x 2 x 0,75	12,2	145	13,7	27,6
4 x 2 x 0,75	14,2	225	11,2	27,6
7 x 2 x 0,75	17,3	350	9,2	27,6
10 x 2 x 0,75	22,7	445	8,6	27,6
14 x 2 x 0,75	24,7	575	7,4	27,6
19 x 2 x 0,75	27,8	755	6,5	27,6
24 x 2 x 0,75	33,1	970	6,5	27,6
XO2TCuZ1-K
1 x 2 x 0,75	8,3	100	17,1	27,6
2 x 2 x 0,75	11,6	145	13,7	27,6
4 x 2 x 0,75	14,9	215	11,2	27,6
7 x 2 x 0,75	20,1	335	9,2	27,6
10 x 2 x 0,75	22,5	495	8,6	27,6
14 x 2 x 0,75	23,7	585	7,4	27,6
19 x 2 x 0,75	26,5	745	6,5	27,6
24 x 2 x 0,75	31,3	945	6,5	27,6
XO3TCuZ1-K
2 x 2 x 0,75	13,1	180	13,7	27,6
4 x 2 x 0,75	15,3	255	11,2	27,6
7 x 2 x 0,75	18,8	425	9,2	27,6
10 x 2 x 0,75	223	545	8,6	27,6
14 x 2 x 0,75	24,4	680	7,4	27,6
19 x 2 x 0,75	27,3	905	6,5	27,6
24 x 2 x 0,75	34,3	1.18	6,5	27,6
