XTCuZ1-K Cable

XTCuZ1-K Cable Description

XTCuZ1-K cables feature Category 5 flexible copper conductors, a tinned copper braided layer, and a low-smoke halogen-free (LSZH) sheath. They are resistant to seawater corrosion, provide electromagnetic compatibility and mechanical protection, and do not release toxic or corrosive gases in the event of a fire. Suitable for marine and nearshore environments, industrial applications, and installations requiring mechanical protection.

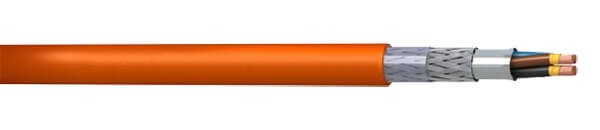

XTCuZ1-K Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
Mica Tape + XLPE
Bedding
Thermoplastic polyolefine, natural colour , with low smoke and halogen free
under fire conditions (single-cores and multi-cores from 25mm2)
Screen
Overlapping aluminium-polyester tape screen
with 100% coverage + tinned copper drain wire.
Outer Sheath
Polyolefin LSZH

XTCuZ1-K Cable Characteristics

Voltage Rating
0,6/1kV
Thermal performance
Maximum service temperature: 90ºC
Maximum short-circuittemperature: 250ºC (max. 5 s)
Lowest installation temperature: -15ºC
Minimum service temperature: -40ºC (fixed and protected installations)
Minimum bending radius
6 x cable diameter

XTCuZ1-K Cable Specifications

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open Air (A)	Voltage drop (V/A·km)	R20ºC (W/km)
1 x 16	11,8	240	88	2,68	1,21
1 x 35	15,1	562	147	1,23	0,554
1 x 70	19,1	920	233	0,603	0,272
1 x 95	20,7	1.055	285	0,457	0,206
1 x 120	23,1	1.42	333	0,357	0,161
1 x 150	25,1	1.62	386	0,286	0,129
1 x 185	27,2	2.045	444	0,235	0,106
1 x 240	29,8	2.61	528	0,178	0,0801
1 x 300	32,9	3.195	612	0,142	0,0641
2 x 1,5	10,3	130	23	34,0	13,3
2 x 2,5	10,4	150	31	20,4	7,98
2 x 4	11,9	191	43	12,7	4,95
2 x 6	12,9	239	55	8,45	3,3
2 x 10	15,4	379	75	4,89	1,91
2 x 16	17,2	515	100	3,1	1,21
3 x 1,5	10,4	144	23	34,0	13,3
3 x 2,5	11,5	187	31	20,4	7,98
3 x 4	12,6	242	43	12,7	4,95
3 x 6	14,3	345	55	8,45	3,3
3 x 10	16,7	504	75	4,89	1,91
3 x 16	18,7	693	87	2,68	1,21
3 x 25	23,2	1.175	110	1,73	0,78
3 x 35	26,4	1.55	137	1,23	0,554
3 x 50	29,6	2.065	167	0,860	0,386
3 x 70	33,9	2.845	214	0,603	0,272
3 x 95	37,8	3.56	259	0,457	0,206
3 x 120	43,2	4.595	301	0,357	0,161
3 x 150	47,4	5.605	347	0,286	0,129
3 x 185	52,3	6.765	397	0,235	0,106
3 x 240	57,8	8.645	468	0,178	0,0801
4 x 1,5	11,2	180	20	29,5	13,3
4 x 2,5	11,9	225	28	17,7	7,98
4 x 4	13,3	295	37	11,0	4,95
4 x 6	15,4	435	47	7,32	3,3
4 x 10	17,9	615	65	4,23	1,91
4 x 16	20,5	865	87	2,68	1,21
4 x 25	26,2	1.475	110	1,73	0,78
4 x 35	28,4	1.915	137	1,23	0,554
4 x 70	38,9	3.63	214	0,603	0,272
4 x 120	47,8	5.765	301	0,357	0,161
4 x 185	58,1	8.555	397	0,235	0,106
4 x 240	64,4	10.99	468	0,178	0,0801
4 x 300	70,7	13.515	540	0,142	0,0641
5 x 1,5	12,4	210	20	29,5	13,3
5 x 2,5	14,2	308	28	17,7	7,98
5 x 4	15,2	405	37	11,0	4,95
5 x 6	16,8	505	47	7,32	3,3
5 x 10	19,6	740	65	4,23	1,91
5 x 16	22,5	1.055	87	2,68	1,21
7 x 1,5	13,2	265	11	29,5	13,3
7 x 2,5	14,8	375	15	17,7	7,98
10 x 1,5	16,9	400	10	29,5	13,3
12 x 1,5	17,3	460	9	29,5	13,3
12 x 2,5	19,4	585	12	17,7	7,98
14 x 1,5	18,6	520	9	29,5	13,3
19 x 1,5	21,1	650	8	29,5	13,3
19 x 2,5	22,7	840	11	17,7	7,98
24 x 1,5	23,3	795	7	29,5	13,3
