Z1OZ1-K Cable Description
Z1OZ1-K cable features LSZH insulation and an outer sheath, an aluminum/polyester tape shield, and a tinned copper grounding wire. It provides electromagnetic protection and will not release toxic or corrosive gases in a fire. Designed for high-safety, low-voltage signal transmission and control applications, it is particularly suitable for public places such as hospitals, schools, shopping malls, and airports.

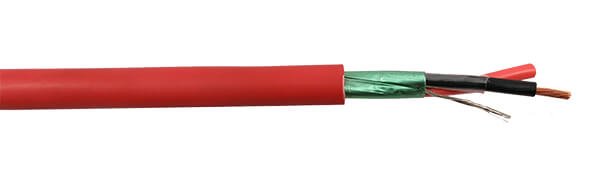

Z1OZ1-K Cable Construction
- Conductor
- Flexible copper conductor (Class 5)
- Insulation
- AS: Polyolefin LSZH
- AS+: Mica tape + Polyolefin LSZH
- Screen
- Overlapping aluminium-polyester tape screen with 100% coverage + tinned copper drain wire.
- Outer sheath
- Polyolefin LSZH
Z1OZ1-K Cable Characteristics
- Voltage Rating
- 300/500 V
- Thermal performance
- Maximum service temperature: 70ºC
- Maximum short-circuittemperature: 160ºC (max. 5 s)
- Minimum service temperature: -40ºC
- Minimum bending radius
- 10x cable diameter
Z1OZ1-K Cable Specifications
| Cross-section (mm²) | Diameter (mm) | Weight (kg/km) |
|---|---|---|
| Z1OZ1-K (AS) | ||
| 2 x 1,5 | 6,9 | 70 |
| Z1OZ1-K (AS+) | ||
| 2 x 1,5 | 7,8 | 80 |
| 2 x 2,5 | 8,5 | 100 |
