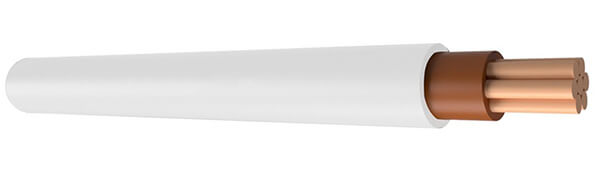

6181B Cable Description
6181B cable features cross-linked polyethylene (XLPE) insulation and a low-smoke, zero-halogen (LSZH) jacket. The jacket is available in gray or white. The conductors are round solid or stranded copper wires, ranging in size from 1.5mm² to 35mm². Its double insulation protects against minor mechanical damage.

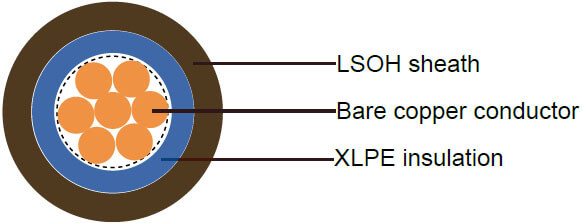

6181B Cable Construction
- Conductor
- Class 1 Solid copper
- Class 2 Stranded copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Outer Sheath
- LSZH (Low-smoke zero halogen)
6181B Cable Characteristics
- Voltage Rating Uo/U
- 450/750V
- 0.6/1kV
- Temperature Rating
- Maximum Operating temperature: +90°C
- Maximum Short Circuit: +250°C
- Minimum Bending Radius
- Up to 25mm²: 8 x overall diameter
- Above 25mm²: 12 x overall diameter
6181B Cable Specifications
| NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OVERSHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1.5 | 1.38 | 0.7 | 0.8 | 4.4 | 31 |
| 2.5 | 1.76 | 0.7 | 0.8 | 4.8 | 41 |
| 4 | 2.5 | 0.7 | 0.9 | 5.7 | 63 |
| 6 | 3.1 | 0.7 | 0.9 | 6.3 | 83 |
| 10 | 3.85 | 0.7 | 0.9 | 7.1 | 125 |
| 16 | 4.8 | 0.7 | 0.9 | 8 | 183 |
| 25 | 5.85 | 0.9 | 1 | 9.7 | 276 |
| 35 | 6.9 | 0.9 | 1.1 | 10.9 | 374 |
| 50 | 8.1 | 1.1 | 1.4 | 13.1 | 520 |
| 70 | 9.7 | 1.1 | 1.4 | 14.7 | 715 |
| 95 | 11.4 | 1.1 | 1.8 | 17.2 | 995 |
| 120 | 12.65 | 1.2 | 1.8 | 18.7 | 1225 |
| 150 | 14.4 | 1.4 | 1.8 | 20.8 | 1510 |
| 185 | 15.75 | 1.6 | 2 | 23 | 1870 |
| 240 | 18.2 | 1.7 | 2 | 25.6 | 2425 |
| 300 | 20.5 | 2 | 2.2 | 28.9 | 3048 |
