6181Y Cable Description
6181Y cable rated for 300/500V, features a copper conductor, and offers minimal protection against mechanical damage. Using double PVC insulation, it is designed for fixed installation in domestic and light industrial applications, specifically for connecting incoming power to consumer units.

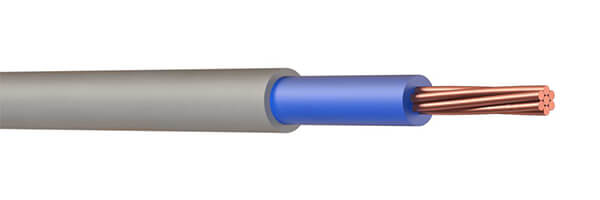

6181Y Cable Construction
- Conductor
- 1mm² to 2.5mm²: Class 1 solid copper conductor
- 4mm² to 25mm²: Class 2 stranded copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
- Sheath
- PVC (Polyvinyl Chloride)
- Insulation Colour
- Blue, Brown
- Sheath Colour
- Grey
6181Y Cable Characteristics
- Voltage Rating Uo/U
- 300/500V
- Temperature Rating
- Fixed: -15°C to +70°C
- Minimum Bending Radius
- Up to 6mm² – Fixed: 3 x overall diameter
- 10mm² to 25mm² – Fixed: 4 x overall diameter
6181Y Cable Specifications
| NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 1.13 | 0.6 | 4.1 | 28 |
| 1.5 | 1.38 | 0.7 | 4.6 | 34 |
| 2.5 | 1.76 | 0.8 | 5.3 | 49 |
| 4 | 2.5 | 0.8 | 6.1 | 75 |
| 6 | 3 | 0.8 | 6.7 | 99 |
| 10 | 3.85 | 1 | 8.1 | 155 |
| 16 | 4.8 | 1 | 9.3 | 225 |
| 25 | 5.9 | 1.2 | 11.1 | 340 |
