AMCMK Cable

AMCMK Cable Description

AMCMK cables feature PVC insulation and sheath (high-power versions use XLPE insulation/sheath) and a copper wire shielding layer. Standard configurations include 3 and 4 cores. Suitable for underground/indoor/outdoor environments, they can be used for fixed installations in cable conduits, concrete, or underground locations, and are flame-retardant and UV resistant.

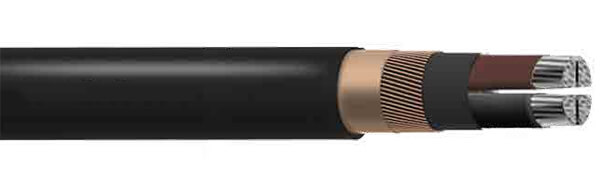

AMCMK Cable Construction

Conductor
Class 2 stranded aluminium (circular or sectorial)
Insulation
PVC (Polyvinyl Chloride)
Screen
Copper wires and Tape
Outer Sheath
PVC (Polyvinyl Chloride)

AMCMK Cable Characteristics

Voltage Rating Uo/U (Um)
0.6/1kV
Temperature Rating
Minimum Laying Temperature: -15ºC
Maximum Operating Temperature: +70ºC
Short Circuit Temperature
+160°C
Minimum Bending Radius
12x overall diameter

AMCMK Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL WEIGHT kg/km
3	16Al/10Cu	560
3	25Al/16Cu	620
3	35Al/16Cu	730
3	50Al/16Cu	975
3	70Al/21Cu	1300
3	95Al/29Cu	1750
3	120Al/41Cu	2150
3	150Al/41Cu	2550
3	185Al/57Cu	3250
3	240Al/72Cu	4100
3	300Al/88Cu	5000
3	16Al/10Cu	560
4	35Al/16Cu	955
4	50Al/16Cu	1250
4	70Al/21Cu	1600
4	95Al/29Cu	2200
4	120Al/41Cu	2650
4	150Al/41Cu	3150
4	185Al/57Cu	4000
4	240Al/72Cu	5100
4	300Al/88Cu	6300
