AS/NZS 5000.2 Standard Cable

AS/NZS 5000.2 Standard Cable Description

AS/NZS 5000.2 standard cables feature rigid copper conductors, polyvinyl chloride (PVC) insulation, and an outer sheath, and are available in single-core and multi-core versions. Specifically designed for control circuits, they provide low-voltage power. They can be laid overhead, installed in conduits, underground cable ducts, or even directly buried.

AS/NZS 5000.2 Standard Cable Construction

Conductor
Rigid stranded Copper
Insulation
PVC-90 (Polyvinyl Chloride)
Outer Sheath
PVC (Polyvinyl Chloride)

AS/NZS 5000.2 Standard Cable Characteristics

Rated Voltage Uo/U
450/750V
Temperature Rating
Maximum operating temperature: 90°C
Minimum Bending Radius
3x/5x overall diameter

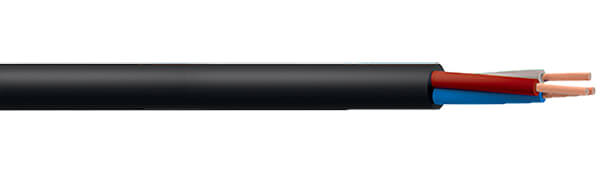

Multicore AS/NZS 5000.2 Standard Cable
Single Core AS/NZS 5000.2 Standard Cable

NUMBER OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	CONDUCTOR Strands / OD mm	NOMINAL INSULATION THICKNESS mm	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	1.5	7/0.50	0.6	0.9	8.0	95
2	2.5	7/0.67	0.7	1.0	9.6	140
3	1.5	7/0.50	0.6	0.9	8.5	120
3	2.5	7/0.67	0.7	1.0	10.1	170
3	4.0	7/0.85	0.8	1.1	11.7	240
3	6.0	7/1.04	1.0	1.1	13.2	300
4	1.5	7/0.50	0.6	0.9	9.2	130
4	2.5	7/0.67	0.7	1.0	11.4	210
4	4.0	7/0.85	0.8	1.1	12.4	280
4	6.0	7/1.04	1.0	1.1	13.8	330
7	1.0	1/1.13	0.6	0.9	10.0	150
7	1.5	7/0.50	0.6	0.9	11.4	195
7	2.5	7/0.67	0.7	1.0	13.3	300
12	1.0	1/1.13	0.6	0.9	12.9	240
12	1.5	7/0.50	0.6	0.9	15.0	320
12	2.5	7/0.67	0.7	1.0	17.5	490
19	1.0	1/1.13	0.6	0.9	14.9	350
19	1.5	7/0.50	0.6	0.9	16.8	450
19	2.5	7/0.67	0.7	1.0	21.0	760
27	1.0	1/1.13	0.6	0.9	17.9	480
27	1.5	7/0.50	0.6	0.9	21.1	670
27	2.5	7/0.67	0.7	1.0	24.8	1030
37	1.0	1/1.13	0.6	0.9	21.2	690
37	1.5	7/0.50	0.6	0.9	22.7	840
37	2.5	7/0.67	0.7	1.0	27.9	1380

NUMBER OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	CONDUCTOR Strands / OD mm	NOMINAL INSULATION THICKNESS mm	NOMINAL OUTER SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	1	1/1.13	0.6	0.9	4.1	30
1	1.5	7/0.50	0.6	0.9	4.4	35
1	2.5	7/0.67	0.7	1.0	5.1	55
1	4	7/0.85	0.8	1.1	6.0	80
1	6	7/1.04	1.0	1.1	6.6	100
1	10	7/1.35	1.0	1.2	7.8	145
1	16	7/1.70	1.0	1.3	9.1	225
