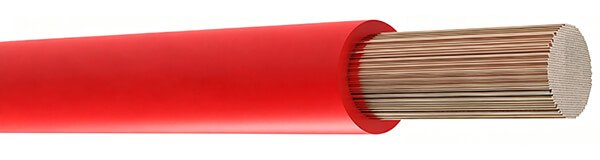

FS17 Cable

FS17 Cable Description

FS17 cable uses S17 grade PVC (polyvinyl chloride) insulation, meeting stringent European safety standards to limit fire spread, smoke generation, and toxic gas emissions. It is primarily used in electrical systems in buildings and civil engineering projects. This product requires installation in conduits, surface mounting, buried pipes, or similar enclosed systems and is not suitable for outdoor use or direct underground burial.

FS17 Cable Construction

Conductor
Class 5 flexible annealed copper (plain)
Insulation
PVC compound, S17 quality

FS17 Cable Characteristics

Rated voltage: 450/750 V
Bending radius (min): 4D
Min. laying temperature: -5°C
Min. operating temperature: -10°C
Max. conductor temperature: 70°C
Max. short-circuit temperature: 160°C

FS17 Cable Specifications

NOMINAL CROSS-SECTION (mm²)	MAX.RESISTANCE AT 20°C (Ω/km)	CURRENT CAPACITY IN AIR AT 30°C (A)	INSULATION THICKNESS (mm)	OUTER DIAM.(APPROX.) (mm)	METAL WEIGHT (kg/km)	CABLE WEIGHT (APPROX.) (kg/km)
1x0,75	26,0	6	0,6	2,3	7,2	12,1
1x1,0	19,5	10	0,6	2,4	9,6	14,8
1x1,5	13,3	17,5	0,7	3,0	14,4	21,5
1x2,5	7,98	24	0,8	3,6	24,0	34,0
1x4	4,95	32	0,8	4,2	38,4	50,3
1x6	3,30	41	0,8	4,7	57,6	71,4
1x10	1910	57	1,0	6,1	96,0	118,1
1x16	1210	76	1,0	7,2	153,6	180,0
1x25	0,780	101	1,2	8,4	240,0	279,2
1x35	0,554	125	1,2	9,5	336,0	381,5
1x50	0,386	151	1,4	11,3	480,0	543,2
1x70	0,272	192	1,4	12,6	672,0	744,6
1x95	0,206	232	1,6	14,7	912,0	1008,9
1x120	0,161	269	1,6	16,2	1152,0	1259,6
1x150	0,129	300	1,8	18,1	1440,0	1574,9
1x185	0,106	341	2,0	20,2	1776,0	1942,2
