H07G-U H07G-R H07G-K Description
These cables are suitable for internal wiring in dry, clean environments, with a maximum operating temperature of +110°C. Specifically, the H07G-U cable uses a Category 1 solid copper conductor, the H07G-R cable uses a Category 2 stranded copper conductor, and the H07G-K cable uses a Category 5 flexible stranded copper conductor.
H07G-U H07G-R H07G-K Construction
| H07G-U Cable | H07G-R Cable | H07G-K Cable | |
|---|---|---|---|
| Conductor | Class 1 solid Copper | Class 2 stranded Copper | Class 5 flexible stranded Copper |
| Insulation | EVA Rubber (Ethylene Vinyl Acetate) | ||
H07G-U H07G-R H07G-K Characteristics
| H07G-U Cable | H07G-R Cable | H07G-K Cable | |
|---|---|---|---|
| Voltage Rating | 450/750V | ||
| Temperature Rating | Maximum operating temperature: 110°C Maximum conductor short-circuit temperature: 250°C Minimum installation temperature: 5°C |
||
- H07G-U Cable

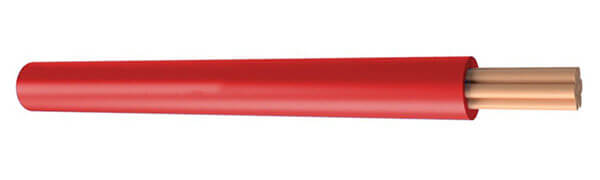

- H07G-R Cable
- H07G-K Cable
| NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL CABLE WEIGHT kg/km |
|---|---|---|---|
| 1.5 | 2.8 | 3.5 | 25 |
| 2.5 | 3.4 | 4.3 | 38 |
| 4 | 4 | 5 | 57 |
| 6 | 4.5 | 5.6 | 79 |
| 10 | 5.7 | 7.1 | 129 |
| NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL CABLE WEIGHT kg/km |
|---|---|---|---|
| 1.5 | 2.9 | 3.7 | 25 |
| 2.5 | 3.5 | 4.4 | 39 |
| 4 | 4.2 | 5.2 | 58 |
| 6 | 4.7 | 5.9 | 81 |
| 10 | 6 | 7.4 | 131 |
| 16 | 6.8 | 8.5 | 195 |
| 25 | 8.4 | 10.6 | 301 |
| 35 | 9.4 | 11.8 | 405 |
| 50 | 10.9 | 13.7 | 571 |
| 70 | 12.5 | 15.6 | 778 |
| 95 | 14.5 | 18.1 | 1050 |
| 120 | 15.9 | 19.9 | 1306 |
| 150 | 17.7 | 22.1 | 1629 |
| 185 | 19.7 | 24.6 | 2008 |
| 240 | 22.4 | 28 | 2594 |
| NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL CABLE WEIGHT kg/km |
|---|---|---|---|
| 1.5 | 3 | 3.7 | 25 |
| 2.5 | 3.6 | 4.5 | 39 |
| 4 | 4.3 | 5.4 | 59 |
| 6 | 4.8 | 6 | 81 |
| 10 | 6 | 7.6 | 132 |
| 16 | 7.1 | 8.9 | 197 |
| 25 | 8.8 | 11 | 303 |
| 35 | 10.1 | 12.6 | 410 |
| 50 | 11.9 | 14.9 | 580 |
| 70 | 13.6 | 17 | 788 |
| 95 | 15.5 | 19.3 | 1060 |
| 120 | 17.1 | 21.4 | 1318 |
| 150 | 19 | 23.8 | 1645 |
| 185 | 21 | 26.3 | 2026 |
| 240 | 23.9 | 29.9 | 2615 |
