MCMK Cable Description
MCMK cables are designed for fixed installation, including indoor, outdoor, underground, and direct-in-concrete installations. They are particularly suitable for areas requiring low smoke and low-corrosive gas emissions in the event of a fire. However, they are not recommended for use in areas with severe electrical interference. In such areas, cables with EMC characteristics, such as MCCMK, are a better choice.

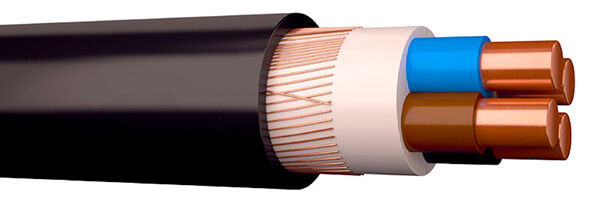

MCMK Cable Construction
- Conductor
- Up to 6 mm²: Circular, solid copper
- Up to 10 mm² Circular, stranded copper
- Above 25mm²: Sector-shaped, stranded copper conductors are annealed
- Insulation
- PVC Compound (Polyvinyl chloride)
- Filler
- Plastic tape
- Screen
- Copper wires and copper tape
- Sheath
- UV Resistant PVC (Polyvinyl chloride)
MCMK Cable Characteristics
- Voltage Rating Uo/U (Um)
- 0.6/1 (1.2)kV
- Temperature Rating
- -15°C to +70°C
- Short Circuit Temperature
- 160°C
- Minimum Bending Radius
- 10 x overall diameter
MCMK Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 | 1.5/1.5 | 13 | 190 |
| 2 | 2.5/2.5 | 14 | 230 |
| 2 | 6/6 | 18 | 400 |
| 2 | 10/10 | 21 | 580 |
| 3 | 1.5/1.5 | 13 | 170 |
| 3 | 2.5/2.5 | 13 | 210 |
| 3 | 6/6 | 17 | 390 |
| 3 | 10/10 | 21 | 590 |
| 3 | 16/16 | 23 | 850 |
| 3 | 25/16 | 28 | 1170 |
| 3 | 35/16 | 27 | 1420 |
| 3 | 50/25 | 30 | 1950 |
| 3 | 70/35 | 33 | 2640 |
| 3 | 95/50 | 37 | 3620 |
| 3 | 120/70 | 41 | 4530 |
| 3 | 150/70 | 44 | 5430 |
| 3 | 185/95 | 50 | 6880 |
| 3 | 240/120 | 56 | 8940 |
| 4 | 1.5/1.5 | 13 | 190 |
| 4 | 2.5/2.5 | 14 | 250 |
| 4 | 6/6 | 19 | 480 |
| 4 | 10/10 | 22 | 720 |
| 4 | 16/16 | 25 | 1050 |
| 4 | 25/16 | 30 | 1460 |
| 4 | 35/16 | 29 | 1800 |
| 4 | 50/25 | 33 | 2500 |
| 4 | 70/35 | 36 | 3360 |
| 4 | 95/50 | 41 | 4600 |
| 4 | 120/70 | 44 | 5730 |
| 4 | 150/70 | 48 | 6930 |
| 4 | 185/95 | 56 | 8800 |
| 4 | 240/120 | 62 | 11460 |
