MCMO Cable Description
MCMO cables feature a solid copper conductor, PVC insulation, and a concentric protective conductor for damage protection and grounding. Rated at 450/750V, they are suitable for indoor installation and are UV-resistant, making them suitable for outdoor use.
The “HF” in the MCMO-HF variant indicates low-smoke zero-halogen (LSZH) (halogen-free) properties, which improve fire safety by reducing smoke and corrosive gases in the event of a fire.

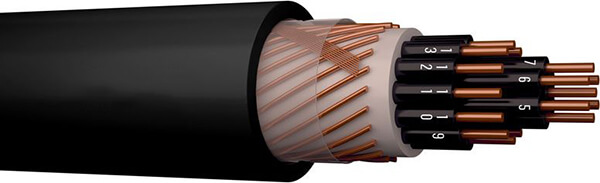

MCMO Cable Construction
- Conductor
- Class 1 Circular solid copper
- Insulation
- Halogen-free XLPE (Cross-linked polyethylene)
- Inner Sheath
- Extruded halogen-free filling compound
- Concentric Conductor
- Copper wires and bidding tape
- Outer Sheath
- Extruded halogen-free and UV-resistant compound
MCMO Cable Characteristics
- Voltage Rating Uo/U
- 450/750V
- Temperature Rating
- Minimum temperature during handling and installation: -15°C
- Minimum temperature during transport: -40°C
- Maximum Conductor Temperature: +90ºC
- Short Circuit Temperature
- +250°C
- Minimum Bending Radius
- Installation: 12 x overall dimater
- Operation: 8 x overall dimater
MCMO Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 7 | 1.5 | 15 | 320 |
| 7 | 2.5 | 17 | 420 |
| 12 | 1.5 | 19 | 470 |
| 12 | 2.5 | 21 | 620 |
| 19 | 1.5 | 22 | 630 |
| 19 | 2.5 | 25 | 880 |
| 27 | 1.5 | 25 | 830 |
| 27 | 2.5 | 28 | 1200 |
