MMJ-HF and MMO-HF Cable Description
Both MMJ-HF and MMO-HF cables are made of halogen-free flame-retardant materials, ensuring low smoke emissions and no corrosive gases in the event of a fire. MMJ-HF is a power cable, while MMO-HF is a control cable. Both are suitable for fixed installation indoors and outdoors.
These cables can be laid in ducts, trenches, and hollow structures, but are not suitable for direct burial in soil or concrete.

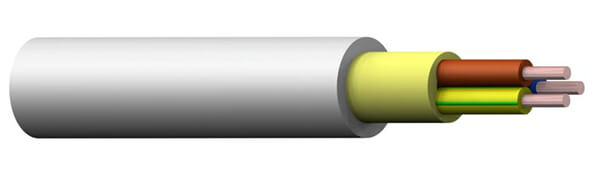

MMJ-HF and MMO-HF Cable Construction
- Conductor
- Circular solid copper
- Insulation
- Halogen free polyolefine
- Filler
- Halogen-free filling
- Sheath
- Halogen free polyolefine
MMJ-HF and MMO-HF Cable Characteristics
- Voltage Rating Uo/U
- 450/750V
- Temperature Rating
- Operating: -15ºC to +70ºC
- Short Circuit Temperature
- 160°C
- Minimum Bending Radius
- 9 x overall diameter
MMJ-HF and MMO-HF Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | MAXIMUM ALLOWED PULLING FORCE kN | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| MM-O | ||||
| 7 | 1.5 | 14 | 0.53 | 250 |
| 7 | 2.5 | 16 | 0.88 | 370 |
| 12 | 1.5 | 18 | 0.9 | 400 |
| 12 | 2.5 | 20 | 1.5 | 560 |
| 19 | 1.5 | 20 | 1.43 | 580 |
| 19 | 2.5 | 25 | 2.38 | 840 |
| 27 | 1.5 | 25 | 2.03 | 820 |
| 27 | 2.5 | 29 | 3.38 | 1190 |
| MM-J | ||||
| 3 | 1.5 | 11 | 0.23 | 160 |
| 3 | 2.5 | 12 | 0.38 | 210 |
| 3 | 6 | 16 | 0.9 | 410 |
| 3 | 10 | 20 | 1.5 | 610 |
| 5 | 1.5 | 13 | 0.38 | 210 |
| 5 | 2.5 | 15 | 0.63 | 300 |
| 5 | 6 | 19 | 1.5 | 600 |
| 5 | 10 | 23 | 2.5 | 910 |
| 5 | 16 | 26 | 4 | 1270 |
