N2XCY Cable

N2XCY cable is a low voltage power cable that provides electrical and mechanical protection using concentric copper conductors and tape for protective earth/neutral connection.

N2XCY Cable Description

N2XCY cables feature XLPE insulation and a protective PVC jacket, offering resistance to heat, moisture, and mechanical stress. Designed for power distribution and industrial applications, they can be installed indoors, in cable trays, outdoors, or underground, and are suitable for use in power stations, industrial plants, and city grids.

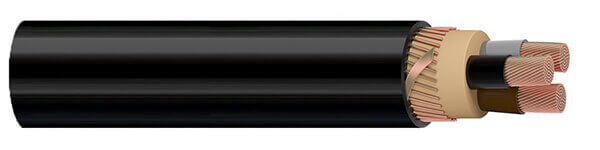

N2XCY Cable Construction

Conductor
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl chloride)
Concentric Conductor
Copper
Tape
Protective Copper Tape
Outer Sheath
PVC (Polyvinyl chloride)

N2XCY Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
15 x overall diameter

N2XCY Cable Core Identification

2 core: Brown, Blue
3 core: Green/Yellow, Blue, Brown
4 core: Green/Yellow, Brown, Black, Grey
5 core: Green/Yellow, Blue, Brown, Black, Grey
7 core and above: Black, Green/Yellow

N2XCY Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	1.5/1.5	1.37	0.7	1.24	12	186
2	2.5/2.5	1.76	0.7	1.24	13	233
2	4/4	2.21	0.7	1.24	14	298
2	6/6	2.71	0.7	1.24	15	380
2	10/10	3.85	0.7	1.24	17	560
2	16/10	4.8	0.7	1.24	20	801
2	25/16	5.8	0.9	1.24	23	1063
2	35/16	6.85	0.9	1.24	25	1312
2	50/25	8.1	1	1.32	29	1761
2	70/35	9.7	1.1	1.4	33	2445
2	95/50	11.4	1.1	1.48	37	3230
2	120/70	13.1	1.2	1.64	42	4137
2	150/70	14.5	1.4	1.72	46	4897
2	185/95	16	1.6	1.88	51	6097
2	240/120	18.6	1.7	2.04	57	7923
2	300/150	21	1.8	2.2	63	9819
3	1.5/1.5	1.3	0.7	1.24	12	203
3	2.5/2.5	1.76	0.7	1.24	13	260
3	4/4	2.21	0.7	1.24	14	336
3	6/6	2.71	0.7	1.24	16	433
3	10/10	3.8	0.7	1.24	18	637
3	16/10	4.8	0.7	1.24	22	1044
3	25/16	5.9	0.9	1.24	27	1421
3	35/16	6.9	0.9	1.32	29	1763
3	50/25	8.2	1	1.4	33	2369
3	70/35	9.7	1.1	1.56	38	3250
3	95/50	11.4	1.1	1.64	42	4337
3	120/70	13.1	1.2	1.8	48	5526
3	150/70	14.2	1.4	1.88	51	6486
3	185/95	15.8	1.6	2.04	57	8108
3	240/120	18.6	1.7	2.2	64	10459
3	300/150	21	1.8	2.36	68	12541
4	1.5/1.5	1.3	0.7	1.24	13	245
4	2.5/2.5	1.76	0.7	1.24	14	317
4	4/4	2.21	0.7	1.24	16	415
4	6/6	2.71	0.7	1.24	17	537
4	10/10	3.9	0.7	1.24	20	806
4	16/10	4.8	0.7	1.24	22	1137
4	25/16	5.9	0.9	1.24	27	1593
4	35/16	6.9	0.9	1.32	30	2059
4	50/25	8.2	1	1.4	34	2753
4	70/35	9.7	1.1	1.56	39	3821
4	95/50	11.4	1.1	1.72	44	5111
4	120/70	13.1	1.2	1.88	50	6501
4	150/70	14.2	1.4	1.96	53	7748
4	185/95	15.8	1.6	2.12	59	9609
4	240/120	18.6	1.7	2.28	67	12480
4	300/150	21	1.8	2.52	75	15709
5	1.5/1.5	1.3	0.7	1.24	14	271
5	2.5/2.5	1.76	0.7	1.24	16	384
5	4/4	2.21	0.7	1.24	17	509
5	6/6	2.71	0.7	1.24	19	641
5	10/10	3.9	0.7	1.24	22	974
5	16/10	4.8	0.7	1.24	25	1414
5	25/16	5.9	0.9	1.32	30	1993
5	35/16	6.9	0.9	1.4	33	2503
5	50/25	8.2	1	1.56	38	3453
7	1.5/1.5	1.37	0.7	1.24	15	332
7	2.5/2.5	1.76	0.7	1.24	16	432
8	1.5/1.5	1.37	0.7	1.24	16	388
8	2.5/2.5	1.76	0.7	1.24	18	507
10	1.5/1.5	1.37	0.7	1.24	18	470
10	2.5/2.5	1.76	0.7	1.24	19	616
12	1.5/1.5	1.37	0.7	1.24	18	507
12	2.5/2.5	1.76	0.7	1.24	20	671
14	1.5/1.5	1.37	0.7	1.24	19	556
14	2.5/2.5	1.76	0.7	1.24	21	740
16	1.5/1.5	1.37	0.7	1.24	20	612
16	2.5/2.5	1.76	0.7	1.24	22	819
19	1.5/1.5	1.37	0.7	1.24	20	679
19	2.5/2.5	1.76	0.7	1.24	23	916
21	1.5/1.5	1.37	0.7	1.24	21	745
21	2.5/2.5	1.76	0.7	1.24	24	1006
24	1.5/1.5	1.37	0.7	1.24	23	835
24	2.5/2.5	1.76	0.7	1.24	25	1132
