NA2XCY Cable Description
NA2XCY cable features a PVC outer jacket and XLPE insulation. The PVC jacket offers UV resistance and a flame-retardant barrier, while the XLPE insulation enables a maximum operating temperature of 90°C. The cable features a copper wire and tape shield, providing electromagnetic interference (EMC) protection, and complies with standards such as IEC 60502-1.
The NA2XCY cable is suitable for both indoor and outdoor fixed wiring, as well as for routing within cable ducts. It is commonly used in European power distribution applications, including substations and industrial plants, where lightweight cable designs are preferred but installation is not restricted by space.

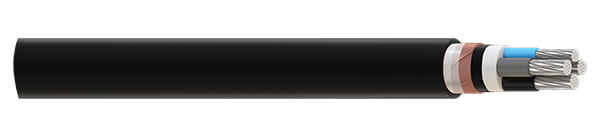

NA2XCY Cable Construction
- Conductor
- Class 2 Stranded Aluminium
- Insulation
- XLPE (Cross-linked Polyethylene)
- Bedding
- PVC (Polyvinyl Chloride)
- Metallic Screen
- Copper Wire and Tape
- Outer Sheath
- PVC (Polyvinyl Chloride)
NA2XCY Cable Characteristics
- Voltage Rating
- 0.6/1kV
- Temperature Rating
- Maximum operating temperature: 90 °C
- Maximum short circuit temperature: 250 °C
- Minimum Bending Radius
- 15 x overall diameter
NA2XCY Cable Core Identification
- Single core: Brown
- 3 core: Green/Yellow, Blue, Brown
NA2XCY Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CROSS SECTIONAL AREA OF SCREEN mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 25 | 16 | 15.5 | 400 |
| 1 | 35 | 16 | 16.5 | 450 |
| 1 | 50 | 25 | 18.5 | 600 |
| 1 | 70 | 35 | 20 | 750 |
| 1 | 95 | 50 | 23 | 1000 |
| 1 | 120 | 70 | 25 | 1300 |
| 1 | 150 | 70 | 27 | 1400 |
| 1 | 185 | 95 | 29.5 | 1800 |
| 1 | 240 | 120 | 33 | 2200 |
| 3 | 25 | 16 | 24 | 800 |
| 3 | 35 | 16 | 26.5 | 1000 |
| 3 | 50 | 25 | 30.5 | 1350 |
| 3 | 70 | 35 | 35 | 1850 |
| 3 | 95 | 50 | 39.5 | 2350 |
| 3 | 120 | 70 | 43 | 2950 |
| 3 | 150 | 70 | 48.5 | 3600 |
| 3 | 185 | 95 | 53 | 4450 |
| 3 | 240 | 120 | 59.5 | 5600 |
| 3 | 300 | 150 | 65.5 | 6850 |
| 3 | 400 | 185 | 74.5 | 8850 |
