NHXMH Cable Description
NHXMH cables feature copper conductors, cross-linked polyethylene (XLPE) insulation, and a halogen-free polyethylene jacket. They are flame-retardant and low-smoke. They are suitable for fixed installation in dry and damp rooms, masonry and concrete structures, and within and under plaster. However, they are not suitable for underground use or exposure to direct sunlight.
These cables are available in standard single-core and multi-core configurations of 2 to 7 cores. The most common model is the NHXMH-J, which identifies the green/yellow core as the ground conductor. The NHXMH-O is color-coded but lacks the green/yellow wire.

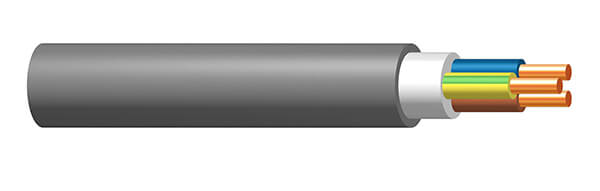

NHXMH Cable Construction
- Conductor
- 1.5mm² to 10mm²: Class 1 solid Copper
- 16mm² to 25mm²: Class 2 stranded Copper
- Insulation
- XLPE (Cross-Linked Polyethylene) Type 2XI1
- Filler
- Halogen-free compound
- Sheath
- Halogen-free thermoplastic polymer compound Type HM2
NHXMH Cable Characteristics
- Voltage Rating (Uo/U)
- 300/500V
- Temperature Rating
- -5ºC to +70ºC
- Minimum Bending Radius
- 1.5mm² to 10mm²: 4x overall diameter (red. to 2x OD at termination)
- 16mm² and above: 5 x overall diameter (red. to 3x OD at termination)
NHXMH Cable Core Identification
- 2 core: Blue, Brown
- 3 core: Blue, Brown, Green/Yellow
- 4 core: Brown, Black, Grey, Green/Yellow
- 5 core: Brown, Black, Grey, Blue, Green/Yellow
- 7 core and above: number coded
NHXMH Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR CLASS | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 1.5 | 1 | 5.2 | 92 |
| 1 | 2.5 | 1 | 5.6 | 110 |
| 1 | 4 | 1 | 7.1 | 135 |
| 1 | 6 | 1 | 7.4 | 160 |
| 1 | 10 | 1 | 7.8 | 215 |
| 1 | 16 | 2 | 8.8 | 295 |
| 2 | 1.5 | 1 | 8.2 | 110 |
| 2 | 2.5 | 1 | 9 | 130 |
| 2 | 4 | 1 | 9.8 | 173 |
| 3 | 1.5 | 1 | 8.7 | 120 |
| 3 | 2.5 | 1 | 9.6 | 159 |
| 3 | 4 | 1 | 11 | 223 |
| 3 | 6 | 1 | 12.5 | 320 |
| 3 | 10 | 1 | 15 | 520 |
| 3 | 16 | 2 | 19.7 | 850 |
| 4 | 1.5 | 1 | 9.2 | 151 |
| 4 | 2.5 | 1 | 10.2 | 200 |
| 4 | 4 | 1 | 12.2 | 300 |
| 4 | 6 | 1 | 13.2 | 395 |
| 4 | 10 | 1 | 15.8 | 595 |
| 4 | 16 | 2 | 20 | 935 |
| 5 | 1.5 | 1 | 10 | 168 |
| 5 | 2.5 | 1 | 11.1 | 238 |
| 5 | 4 | 1 | 13.6 | 350 |
| 5 | 6 | 1 | 15 | 480 |
| 5 | 10 | 1 | 17.7 | 773 |
| 5 | 16 | 2 | 22 | 1290 |
| 5 | 25 | 2 | 27 | 1725 |
| 7 | 1.5 | 1 | 10.2 | 210 |
| 7 | 2.5 | 1 | 12.2 | 300 |
