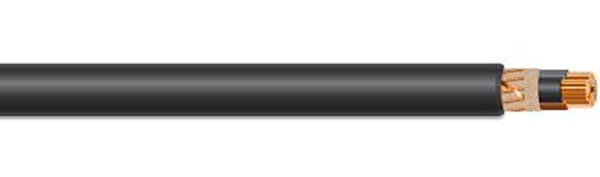

NYCWY Cable Description
NYCWY cables feature bare copper conductors, polyvinyl chloride (PVC) insulation and outer jacket, and a unique corrugated copper concentric conductor construction for enhanced electrical and mechanical protection. These cables are suitable for outdoor use and are particularly well-suited for underground installations, such as in customer networks and power stations, where burial in the ground or concrete is not necessary without additional protection.
NYCWY Cable Construction
- Conductor
- RE: Class 1 solid copper conductor
- RM: Class 2 stranded, round copper conductor
- SM: Class 2 stranded, sectorial copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
- Bedding
- PVC (Polyvinyl Chloride)
- Concentric Conductor
- Waveconal outer conductor – copper wire and counter spiral copper tape
- Sheath
- PVC (Polyvinyl Chloride)
NYCWY Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- -5°C to +70°C
- Minimum Bending Radius
- 15 x overall diameter
NYCWY Cable Core Identification
- 2 core: Brown, Blue
- 3 core: Brown, Black, Grey
- 4 core: Brown, Black, Grey, Blue
NYCWY Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | 10/10 | RE | 19.4 | 610 |
| 2 | 16/16 | RE | 20.4 | 840 |
| 2 | 25/25 | RM | 24.4 | 1299 |
| 3 | 10/20 | RE | 19.4 | 750 |
| 3 | 16/16 | RE | 21.4 | 1050 |
| 3 | 25/16 | RM | 25.5 | 1600 |
| 3 | 25/25 | RM | 25.5 | 1600 |
| 3 | 35/16 | SM | 25.7 | 1850 |
| 3 | 35/35 | SM | 27.6 | 1700 |
| 3 | 50/25 | SM | 28.7 | 2400 |
| 3 | 50/50 | SM | 28.7 | 2300 |
| 3 | 70/35 | SM | 33.8 | 3300 |
| 3 | 70/70 | SM | 32.8 | 2900 |
| 3 | 95/50 | SM | 37.8 | 4500 |
| 3 | 95/95 | SM | 37.8 | 400 |
| 3 | 120/70 | SM | 40.8 | 5000 |
| 3 | 120/120 | SM | 41.8 | 5500 |
| 3 | 150/70 | SM | 45 | 6000 |
| 3 | 150/150 | SM | 46 | 6750 |
| 3 | 185/95 | SM | 50 | 7500 |
| 3 | 185/185 | SM | 51 | 8500 |
| 3 | 240/120 | SM | 57 | 10000 |
| 4 | 10/10 | RE | 20.4 | 870 |
| 4 | 16/16 | RE | 23.4 | 1250 |
| 4 | 25/16 | RM | 27.6 | 1800 |
| 4 | 35/16 | SM | 28.6 | 2050 |
| 4 | 50/25 | SM | 32.8 | 2700 |
| 4 | 70/35 | SM | 36.8 | 3750 |
| 4 | 95/50 | SM | 43.9 | 5000 |
| 4 | 120/70 | SM | 47 | 6300 |
| 4 | 150/70 | SM | 51 | 7600 |
| 4 | 185/95 | SM | 56 | 9300 |
| 4 | 240/120 | SM | 63 | 11600 |
