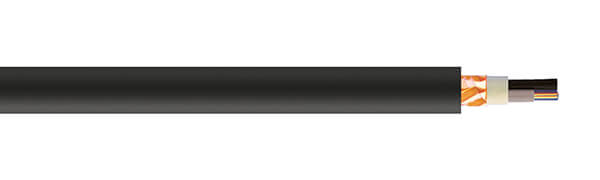

NYCY Cable Description
NYCY cable features copper conductors, PVC insulation and jacketing, and concentric copper wires and ribbon conductors for electrical protection. It can be used as a neutral, ground, or PEN conductor, providing enhanced safety and protection. “N” represents the copper conductor, “Y” denotes the PVC insulation, “C” denotes the concentric conductor, and “Y” denotes the PVC outer jacket.
NYCY cable can be installed indoors and outdoors and is suitable for cable ducts, plaster layers, brick walls, and underground. It is suitable for power plants, industrial plants, and local power grids, particularly where enhanced mechanical and electrical protection is required.
NYCY Cable Construction
- Conductor
- RE: Class 1 solid bare copper
- Insulation
- PVC (Polyvinyl Chloride) type DIV 4
- Concentric Conductor
- Copper wires and copper tape
- Sheath
- PVC (Polyvinyl Chloride) type DMV5
NYCY Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Maximum conductor operating temperature: 70°C
- Fixed: 70°C
- Moved: -5°C to +70°C
- Minimum Bending Radius
- 15 x overall diameter
NYCY Cable Core Identification
- 2 core: Brown, Blue
- 3 core: Brown, Black, Grey
- 4 core: Brown, Black, Grey, Blue
- 5 core: Brown, Black, Grey, Blue, Black
- 7 core and above: Black with White numbers
NYCY Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL INSULATION WALL THICKNESS mm | NOMINAL SHEATH WALL THICKNESS mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 6/6 | RE | 1 | 1.8 | 10.2 | 201 |
| 2 | 1.5/1.5 | RE | 0.8 | 1.8 | 13 | 200 |
| 2 | 2.5/2.5 | RE | 0.8 | 1.8 | 13.6 | 260 |
| 2 | 4/4 | RE | 1 | 1.8 | 15.4 | 350 |
| 2 | 6/6 | RE | 1 | 1.8 | 16.9 | 430 |
| 2 | 10/10 | RE | 1 | 1.8 | 18.5 | 520 |
| 2 | 16/16 | RE | 1 | 1.8 | 20.5 | 720 |
| 3 | 1.5/1.5 | RE | 0.8 | 1.8 | 13.2 | 220 |
| 3 | 2.5/2.5 | RE | 0.8 | 1.8 | 14.2 | 280 |
| 3 | 2.5/10 | RE | 0.8 | 1.8 | 14.4 | 359 |
| 3 | 4/4 | RE | 1 | 1.8 | 16.3 | 390 |
| 3 | 6/6 | RE | 1 | 1.8 | 17.3 | 500 |
| 3 | 10/10 | RE | 1 | 1.8 | 20 | 680 |
| 3 | 16/16 | RE | 1 | 1.8 | 23 | 1010 |
| 4 | 1.5/1.5 | RE | 0.8 | 1.8 | 14.2 | 250 |
| 4 | 2.5/2.5 | RE | 0.8 | 1.8 | 15.3 | 340 |
| 4 | 4/4 | RE | 1 | 1.8 | 17.3 | 460 |
| 4 | 6/6 | RE | 1 | 1.8 | 18.4 | 580 |
| 4 | 10/10 | RE | 1 | 1.8 | 21 | 765 |
| 4 | 16/16 | RE | 1 | 1.8 | 23 | 1060 |
| 5 | 1.5/1.5 | RE | 0.8 | 1.8 | 15 | 330 |
| 5 | 2.5/2.5 | RE | 0.8 | 1.8 | 16 | 400 |
| 5 | 4/4 | RE | 1 | 1.8 | 19 | 550 |
| 5 | 6/6 | RE | 1 | 1.8 | 21 | 700 |
| 7 | 1.5/2.5 | RE | 0.8 | 1.8 | 15.3 | 350 |
| 7 | 2.5/2.5 | RE | 0.8 | 1.8 | 17.4 | 450 |
| 7 | 4/4 | RE | 1 | 1.8 | 20 | 600 |
| 7 | 6/6 | RE | 1 | 1.8 | 22.5 | 790 |
| 7 | 10/10 | RE | 1 | 1.8 | 25 | 1320 |
| 8 | 4/4 | RE | 1 | 1.8 | 20 | 770 |
| 10 | 1.5/2.5 | RE | 0.8 | 1.8 | 18.4 | 410 |
| 10 | 2.5/4 | RE | 1 | 1.8 | 20.4 | 600 |
| 10 | 4/6 | RE | 0.8 | 1.8 | 23.5 | 900 |
| 12 | 1.5/2.5 | RE | 0.8 | 1.8 | 19.4 | 470 |
| 12 | 2.5/4 | RE | 0.8 | 1.8 | 20.5 | 660 |
| 12 | 4/6 | RE | 1 | 1.8 | 24.5 | 1060 |
| 14 | 1.5/2.5 | RE | 0.8 | 1.8 | 20.4 | 520 |
| 14 | 2.5/6 | RE | 0.8 | 1.8 | 21.5 | 750 |
| 16 | 1.5/4 | RE | 0.8 | 1.8 | 20 | 620 |
| 16 | 2.5/6 | RE | 0.8 | 1.8 | 22.5 | 800 |
| 19 | 1.5/4 | RE | 0.8 | 1.8 | 22.5 | 660 |
| 19 | 2.5/6 | RE | 0.8 | 1.8 | 23.5 | 940 |
| 19 | 4/10 | RE | 1 | 1.8 | 27.1 | 1376 |
| 21 | 1.5/6 | RE | 0.8 | 1.8 | 23 | 790 |
| 24 | 1.5/6 | RE | 0.8 | 1.8 | 5.5 | 850 |
| 24 | 2.5/10 | RE | 0.8 | 1.8 | 7.6 | 1150 |
| 24 | 4/10 | RE | 1 | 1.8 | 2.3 | 1813 |
| 30 | 1.5/6 | RE | 0.8 | - | 26.5 | 1020 |
| 30 | 2.5/10 | RE | 0.8 | 1.8 | 29.5 | 1600 |
| 40 | 1.5/10 | RE | 0.8 | 1.8 | 30 | 1280 |
| 40 | 2.5/10 | RE | 0.8 | 1.8 | 33 | 1660 |
| 52 | 1.5/10 | RE | 0.8 | 1.8 | 32 | 1600 |
| 52 | 2.5/10 | RE | 0.8 | 1.8 | 35 | 2000 |
| 61 | 1.5/10 | RE | 0.8 | 1.8 | 33 | 2000 |
| 61 | 2.5/10 | RE | 0.8 | 1.8 | 36 | 2280 |
