XGB-F2 Cable

XGB-F2 Cable Description

XGB-F2 cable features flame-retardant properties and a low-smoke halogen-free (LSZH) sheath, making it suitable for public buildings such as airports, hospitals, and train stations, as well as other environments sensitive to smoke and corrosive gases produced by fire.

This cable can be installed in conduits, cable ducts, buried in concrete, exposed to the elements (avoiding direct UV exposure), and in underground drainage systems.

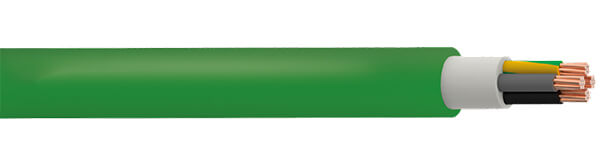

XGB-F2 Cable Construction

Conductor
Class 1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
Filling compound or HF tape (Halogen free)
Inner Sheath
Filling compound or tape
Outer Sheath
HF Thermoplastic (Halogen free)

XGB-F2 Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Operating: -15ºC to +60ºC
Minimum Installation: 0ºC
Maximum conductor temperature in service: +90ºC
Minimum Bending Radius
12 x overall diamater

XGB-F2 Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OUTER DIAMETER mm	NOMINAL WEIGHT kg/km
1	16	9.2	203
1	25	10.7	289
1	35	11.8	382
1	50	13.2	510
1	70	14.6	706
1	95	16.5	963
1	120	18.5	1205
1	150	20.3	1476
1	185	22.2	1832
1	240	25.2	2399
2	1.5	8.6	110
2	2.5	9.3	141
2	4	10.3	189
2	6	11.3	242
2	10	12.9	347
2	16	16.5	557
3	1.5	9	125
3	2.5	9.8	164
3	4	10.9	223
3	6	12	295
3	10	13.7	432
3	16	17.7	697
3	25	21.6	1052
3	35	23.8	1365
3	50	27.5	1844
3	70	28.1	2233
3	95	31.3	3025
3	120	34.5	3831
3	150	38.9	4690
3	185	42.3	5788
3	240	48.3	7581
4	1.5	9.7	150
4	2.5	10.5	196
4	4	11.8	270
4	6	13	360
4	10	15.2	541
4	16	19.5	879
4	25	23.5	1280
4	35	26.5	1725
4	50	28.2	2016
4	70	32.3	2954
4	95	34.3	3519
4	120	40	5116
4	150	44.8	6182
4	185	49.7	7771
4	240	52.8	8780
5	1.5	10.5	171
5	2.5	11.5	230
5	6	14.2	428
5	10	16.5	648
5	16	21.5	1082
5	25	25.7	1578
7	1.5	11.3	205
7	2.5	12.4	282
9	1.5	13.9	299
9	2.5	15.5	388
10	1.5	14.4	310
10	2.5	19.1	595
12	1.5	14.9	343
12	2.5	16.6	475
14	1.5	15.8	390
19	1.5	17.4	506
21	1.5	18.4	539
24	1.5	20.4	626
30	1.5	21.8	745
37	1.5	26.3	1127
40	1.5	24.4	948
