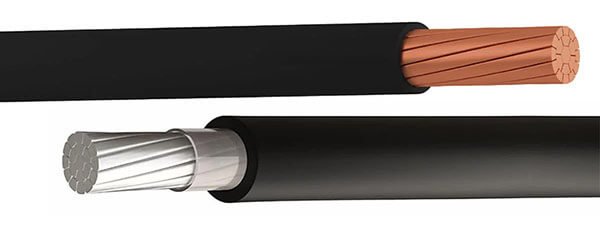

XHHW-2 Cable

XHHW-2 Cable Description

XHHW-2 cable uses copper or aluminum conductors and cross-linked polyethylene (XLPE) insulation. This is a thermosetting insulation material with properties of heat resistance, moisture resistance, chemical corrosion resistance, ozone resistance, and physical abrasion resistance; it will not melt even at high temperatures.

This cable is suitable for humid or dry environments and can be installed indoors or outdoors, in conduits, cable trays, or approved cable trays, including direct burial. It is commonly used in power lines, feeders, and branch circuit wiring in residential, commercial, and industrial buildings.

XHHW-2 Cable Construction

Conductor
Stranded / Solid Copper or Aluminum
Insulation
XLPE (Cross-linked polyethylene)

XHHW-2 Cable Characteristics

Voltage Rating
600V
Temperature Rating
+90°C

XHHW-2 Cable Specification

Conductor Size (AWG/kcmil)	No. of Strands	Conductor Diameter (inches)	Insulation Thickness (inches)	Overall Diameter (inches)	Net Weight (lbs/kft)	Ampacity at 90°C (amps)
14	7	0.071	0.03	0.13	17	25
12	7	0.089	0.03	0.15	26	30
10	7	0.113	0.03	0.18	38	40
8	7	0.142	0.045	0.24	65	55
6	7	0.178	0.045	0.28	98	75
4	7	0.225	0.045	0.33	152	95
2	7	0.283	0.045	0.39	233	130
1	19	0.322	0.055	0.44	293	145
1/0	19	0.362	0.055	0.48	364	170
2/0	19	0.405	0.055	0.53	453	195
3/0	19	0.456	0.055	0.58	565	225
4/0	19	0.512	0.055	0.63	706	260
250	37	0.558	0.065	0.7	837	290
300	37	0.611	0.065	0.75	1004	320
350	37	0.661	0.065	0.8	1157	350
400	37	0.706	0.065	0.85	1322	380
400	61	0.706	0.065	0.85	1322	380
500	37	0.789	0.065	0.93	1634	430
600	61	0.866	0.08	1.04	1972	475
600	91	0.866	0.08	1.04	1972	475
750	61	0.968	0.08	1.15	2448	535
