XVB-F2 Cable Description
XVB-F2 cable features a copper conductor, cross-linked polyethylene (XLPE) insulation, and a flame-retardant PVC outer sheath. The “F2” designation indicates that its flame-retardant performance meets NBN C 30-004 standards. This product series is manufactured according to NBN HD 604 Part 4/Section G and is mechanically and UV-protected by conduit and trays.

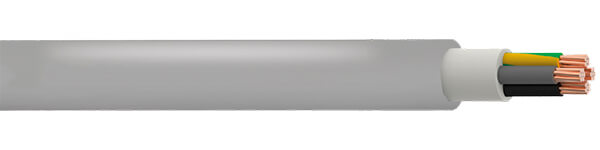

XVB-F2 Cable Construction
- Conductor
- Class 1 Solid copper
- Class 2 Stranded copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Filler
- Filling compound or tape
- Outer Sheath
- Fire-retardant PVC (Polyvinyl chloride)
XVB-F2 Cable Characteristics
- Voltage Rating Uo/U (Um)
- 0.6/1kV
- Temperature Rating
- Operating: -15ºC to +60ºC
- Minimum Installation: 0ºC
- Maximum Conductor Temperature
- 90°C
XVB-F2 Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM THICKNESS OF OUTER SHEATH mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OUTER DIAMETER mm | MAXIMUM OVEALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 16 | 1.09 | 0.7 | 9.2 | 10.1 | 195 |
| 1 | 25 | 1.09 | 0.9 | 10.6 | 11.8 | 288 |
| 1 | 35 | 1.09 | 0.9 | 11.8 | 13.1 | 381 |
| 1 | 50 | 1.09 | 1 | 13.3 | 14.8 | 504 |
| 1 | 70 | 1.09 | 1.1 | 15.5 | 16.7 | 707 |
| 1 | 95 | 1.18 | 1.1 | 16.5 | 18.8 | 988 |
| 1 | 120 | 1.18 | 1.2 | 18.1 | 20.6 | 1235 |
| 1 | 150 | 1.26 | 1.4 | 20.3 | 23 | 1500 |
| 1 | 185 | 1.26 | 1.6 | 22.2 | 25.2 | 1862 |
| 1 | 240 | 1.35 | 1.7 | 25.2 | 28.2 | 2414 |
| 1 | 300 | 1.43 | 1.8 | 27.5 | 31 | 3002 |
| 2 | 1.5 | 1.09 | 0.7 | 9 | 10.7 | 121 |
| 2 | 2.5 | 1.09 | 0.7 | 9.6 | 11.6 | 152 |
| 2 | 4 | 1.09 | 0.7 | 10.6 | 12.8 | 201 |
| 2 | 6 | 1.09 | 0.7 | 11.6 | 13.9 | 256 |
| 2 | 10 | 1.09 | 0.7 | 12.9 | 15.8 | 355 |
| 2 | 16 | 1.09 | 0.7 | 16.5 | 17.9 | 551 |
| 2 | 25 | 1.26 | 0.9 | 19.8 | 21.8 | 807 |
| 3 | 1.5 | 1.09 | 0.7 | 9.3 | 11.1 | 136 |
| 3 | 2.5 | 1.09 | 0.7 | 10.1 | 12.2 | 175 |
| 3 | 4 | 1.09 | 0.7 | 11.2 | 13.5 | 239 |
| 3 | 6 | 1.09 | 0.7 | 12.3 | 14.7 | 309 |
| 3 | 10 | 1.09 | 0.7 | 13.7 | 16.7 | 442 |
| 3 | 16 | 1.18 | 0.7 | 17.7 | 19.1 | 693 |
| 3 | 25 | 1.26 | 0.9 | 21.6 | 23.2 | 1045 |
| 3 | 35 | 1.35 | 0.9 | 23.8 | 26.2 | 1357 |
| 3 | 50 | 1.43 | 1 | 27.5 | 29.8 | 1863 |
| 3 | 70 | 1.52 | 1.1 | 28.2 | 33.5 | 2232 |
| 3 | 95 | 1.6 | 1.1 | 31.3 | 37.7 | 3020 |
| 3 | 120 | 1.69 | 1.2 | 34.5 | 41.1 | 3826 |
| 3 | 150 | 1.86 | 1.4 | 39 | 46.3 | 4682 |
| 3 | 185 | 1.94 | 1.6 | 42.3 | 51.4 | 5786 |
| 3 | 240 | 2.11 | 1.7 | 48.3 | 58 | 7574 |
| 4 | 1.5 | 1.09 | 0.7 | 10.1 | 12.1 | 160 |
| 4 | 2.5 | 1.09 | 0.7 | 11 | 13.1 | 209 |
| 4 | 4 | 1.09 | 0.7 | 12.2 | 14.6 | 287 |
| 4 | 6 | 1.09 | 0.7 | 13.3 | 16 | 378 |
| 4 | 10 | 1.18 | 0.7 | 15.4 | 18.4 | 554 |
| 4 | 16 | 1.18 | 0.7 | 19.5 | 21 | 867 |
| 4 | 25 | 1.35 | 0.9 | 23 | 25.6 | 1274 |
| 4 | 35 | 1.43 | 0.9 | 26.5 | 29 | 1714 |
| 4 | 50 | 1.52 | 1 | 30.5 | 34 | 2363 |
| 4 | 70 | 1.6 | 1.1 | 32.3 | 38.9 | 2950 |
| 4 | 95 | 1.69 | 1.1 | 34.3 | 41.3 | 3515 |
| 4 | 120 | 1.86 | 1.2 | 40 | 47.8 | 5101 |
| 4 | 150 | 1.94 | 1.4 | 44.8 | 53.4 | 6173 |
| 4 | 185 | 2..03 | 1.6 | 45.8 | 57.2 | 6770 |
| 4 | 240 | 2.2 | 1.7 | 52.8 | 65.5 | 8770 |
| 5 | 1.5 | 1.09 | 0.7 | 10.8 | 13 | 183 |
| 5 | 2.5 | 1.09 | 0.7 | 11.8 | 14.2 | 243 |
| 5 | 4 | 1.09 | 0.7 | 13.2 | 15.8 | 338 |
| 5 | 6 | 1.09 | 0.7 | 14.5 | 17.3 | 448 |
| 5 | 10 | 1.18 | 0.7 | 16.5 | 19.8 | 663 |
| 5 | 16 | 1.26 | 0.7 | 21.8 | 23.1 | 1082 |
| 5 | 25 | 1.35 | 0.9 | 25.7 | 28.1 | 1530 |
| 5 | 35 | 1.43 | 0.9 | 29.7 | - | 2143 |
| 7 | 1.5 | 1.09 | 0.7 | 127 | 13.9 | 262 |
| 7 | 2.5 | 1.09 | 0.7 | 12.7 | 15.3 | 304 |
| 9 | 1.5 | 1.18 | 0.7 | 148 | 16.5 | 291 |
| 9 | 2.5 | 1.09 | 0.9 | 18.3 | 18.5 | 563 |
| 10 | 1.5 | 1.09 | 0.7 | 178 | 17.2 | 457 |
| 10 | 2.5 | 1.18 | 0.7 | 19.1 | 19.3 | 600 |
| 12 | 1.5 | 1.09 | 0.7 | 18 | 17.6 | 495 |
| 12 | 2.5 | 1.18 | 0.7 | 20..0 | 19.8 | 647 |
| 14 | 1.5 | 1.18 | 0.7 | 18.8 | 18.7 | 549 |
| 14 | 2.5 | 1.18 | 0.7 | 20.4 | 20.8 | 722 |
| 19 | 1.5 | 1.18 | 0.7 | 20.5 | 20.6 | 664 |
| 19 | 2.5 | 1.26 | 0.7 | 22.5 | 23.2 | 877 |
| 21 | 1.5 | 1.26 | 0.7 | 21.6 | 22.6 | 1169 |
| 24 | 1.5 | 1.26 | 0.7 | 23.8 | 24.1 | 832 |
| 24 | 2.5 | 1.26 | 0.7 | 25.7 | 27.1 | 1090 |
| 30 | 1.5 | 1.35 | 0.7 | 24.7 | 25.6 | 1242 |
| 30 | 2.5 | 1.43 | 0.7 | 27.2 | 28.9 | 1274 |
| 37 | 1.5 | 1.35 | 0.7 | 26.5 | 27.6 | 1117 |
| 40 | 1.5 | 1.43 | 0.7 | 27.3 | 29.3 | 1167 |
