2GTL Cable Description
2GTL cables feature finely stranded tinned copper conductors, silicone rubber insulation, a rubber compound inner sheath, and a fiberglass braided outer sheath. They are resistant to oil, ozone, greases, and seawater corrosion, and offer good abrasion resistance. Suitable for applications with operating temperatures ranging from -50°C to +180°C.

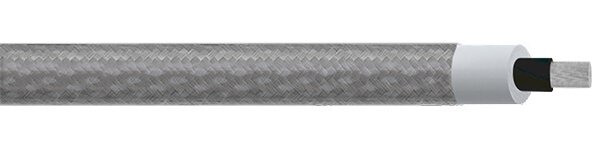

2GTL Cable Construction
- Conductor
- Class 5 flexible stranded tinned Copper
- Insulation
- Silicone Rubber
- Inner Sheath
- Rubber Compound
- Outer Sheath
- Fibre glass braid 1.9kV Yellow, 4.2kV Red/Brown, 7.2kV Grey, 15kV Black
2GTL Cable Characteristic
- Voltage Rating Uo/U
- Yellow: 1.1/1.9kV
- Red/Brown: 3.3/4.2kV
- Grey: 6.6/7.2kV
- Black: 13.9/15kV
- Temperature Rating
- -50ºC to +180ºC
- Minimum Bending Radius
- Dynamic: 15 x overall diameter
- Static: 6 x overall diameter
2GTL Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1.1/1.9kV | |||
| 1 | 1.5 | 4.1 | 26 |
| 1 | 2.5 | 4.6 | 36 |
| 1 | 4 | 5.1 | 52 |
| 1 | 6 | 5.5 | 72 |
| 1 | 10 | 6.4 | 113 |
| 1 | 16 | 8.5 | 168 |
| 1 | 25 | 10.5 | 261 |
| 1 | 35 | 11.8 | 356 |
| 1 | 50 | 14.1 | 509 |
| 1 | 70 | 16.1 | 737 |
| 1 | 95 | 18.3 | 970 |
| 1 | 120 | 20.2 | 1210 |
| 1 | 150 | 22.5 | 1480 |
| 1 | 185 | 24.9 | 1795 |
| 1 | 240 | 27.3 | 2360 |
| 3.3/4.2kV | |||
| 1 | 6 | 7.3 | 93 |
| 1 | 10 | 8.3 | 137 |
| 1 | 16 | 10.4 | 200 |
| 1 | 25 | 12.1 | 290 |
| 1 | 35 | 13.2 | 356 |
| 1 | 50 | 15.5 | 546 |
| 1 | 70 | 17.5 | 739 |
| 1 | 95 | 19.9 | 978 |
| 1 | 120 | 21.8 | 1213 |
| 1 | 150 | 23.7 | 1483 |
| 1 | 185 | 25.7 | 1804 |
| 1 | 240 | 28.1 | 2355 |
| 6.6/7.2kV | |||
| 1 | 4 | 8.1 | 88 |
| 1 | 6 | 8.5 | 112 |
| 1 | 10 | 9.4 | 160 |
| 1 | 16 | 11.3 | 226 |
| 1 | 25 | 13.1 | 322 |
| 1 | 35 | 14.2 | 422 |
| 1 | 50 | 16.8 | 589 |
| 1 | 70 | 18.5 | 787 |
| 1 | 95 | 20.2 | 1011 |
| 1 | 120 | 22.2 | 1249 |
| 1 | 150 | 24.2 | 1535 |
| 1 | 185 | 26.2 | 1859 |
| 1 | 240 | 28.6 | 2362 |
| 13.9/15kV | |||
| 1 | 10 | 12.1 | 211 |
| 1 | 16 | 14.1 | 287 |
| 1 | 25 | 15.6 | 389 |
| 1 | 35 | 16.7 | 496 |
| 1 | 50 | 18.6 | 685 |
| 1 | 70 | 20.7 | 866 |
| 1 | 95 | 22.5 | 1096 |
| 1 | 120 | 24.3 | 1340 |
| 1 | 150 | 26.7 | 1646 |
| 1 | 185 | 28.7 | 1975 |
| 1 | 240 | 30.9 | 2485 |
