H05G-K/H07G-K Cable Description
This cable features a fine stranded bare copper conductor and EVA (ethylene-vinyl acetate copolymer) insulation, offering excellent heat resistance. It is commonly used for internal wiring in distribution boards and switchgear, connections within lighting fixtures and operating components, and high-temperature connections for heating equipment. It is suitable for installation in conduits or on/under plasterboard.

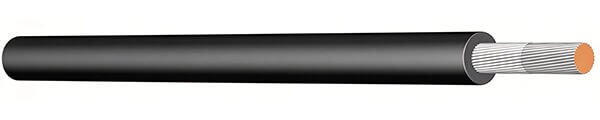

H05G-K/H07G-K Cable Construction
- Conductor
- Class 5 Fine bare copper strands
- Insulation
- Ethylene Vinyl Acetate (EVA) rubber compound
H05G-K/H07G-K Cable Characteristics
- Voltage Rating Uo/U
- H05G-K: 300/500 V
- H07G-K: 450/750 V
- Temperature Rating
- Fixed: -40°C to +110°C
- Flexing: -25°C to +110°C
H05G-K/H07G-K Cable Specification
| NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² | NOMINAL THICKNESS OF INSULATION MM | NOMINAL OVERALL DIAMETER MM | NOMINAL COPPER WEIGHT KG/KM | NOMINAL WEIGHT KG/KM |
|---|---|---|---|---|
| H05G-K | ||||
| 1 x 0.5 | 0.6 | 2.3 | 4.8 | 13 |
| 1 x 0.75 | 0.6 | 2.6 | 7.2 | 16 |
| 1 x 1 | 0.6 | 2.8 | 9.6 | 22 |
| H07G-K | ||||
| 1 x 1.5 | 0.8 | 3.4 | 14.4 | 24 |
| 1 x 2.5 | 0.9 | 4.1 | 24 | 42 |
| 1 x 4 | 1 | 5.1 | 38 | 61 |
| 1 x 6 | 1 | 5.5 | 58 | 78 |
| 1 x 10 | 1.2 | 6.8 | 96 | 130 |
| 1 x 16 | 1.2 | 8.4 | 154 | 212 |
| 1 x 25 | 1.4 | 9.9 | 240 | 323 |
| 1 x 35 | 1.4 | 11.4 | 336 | 422 |
| 1 x 50 | 1.6 | 13.2 | 480 | 527 |
| 1 x 70 | 1.6 | 15.4 | 672 | 726 |
| 1 x 95 | 1.8 | 17.2 | 912 | 937 |
| 1 x 120 | 1.8 | 19.7 | 1152 | 1192 |
