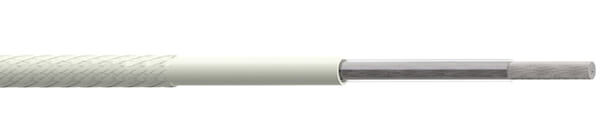

Intemp 250 Cable Description
Intemp 250 cable uses nickel-plated copper wire, PFA insulation, and an outer layer of fire-resistant mica glass tape. The outer sheath is a fiberglass braided layer with a natural off-white color. It offers excellent moisture resistance, chemical resistance, and temperature resistance. This cable is typically manufactured to BS G210 standards and is primarily used in the automation and process control industries.
Intemp 250 Cable Construction
- Conductor
- Class 5 flexible nickel-plated copper conductor
- Insulation
- PFA (Perfluoroalkoxy)
- Separator
- Mica glass tape
- Outer Sheath
- Glass fibre braid with a heat resistant varnish
Intemp 250 Cable Characteristics
- Voltage Rating
- 0.6/1kV
- Temperature Rating
- Fixed: -75ºC to +250°C
- Minimum Bending Radius
- Fixed: 10 x overall diameter
Intemp 250 Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 1 | 3.89 | 24 |
| 1 | 1.5 | 4.14 | 29 |
| 1 | 2.5 | 4.57 | 39 |
| 1 | 4 | 5.08 | 54 |
| 1 | 6 | 6.98 | 97 |
| 1 | 10 | 8.15 | 141 |
| 1 | 16 | 9.38 | 197 |
