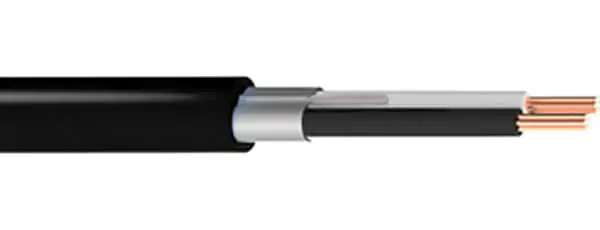

APL Instrumentation Cable Description
APL instrument cables are mechanically protected with an Aluminium Polyethylene Laminate (APL) layer and are available with collective screen (CAM) and both individual and integral screen (ICAM). Unarmoured versions are also available.
These cables typically feature a Class 4 bundled bare copper conductor as the core, usually insulated with cross-linked polyethylene (XLPE), and an outer sheath composed of polyethylene (PE) or polyvinyl chloride (PVC).
APL Instrumentation Cable Construction
| APL CAM Armoured Instrumentation Cable | APL ICAM Armoured Instrumentation Cable | |
|---|---|---|
| VOLTAGE | 300/500V | |
| CONDUCTOR | Class 4 plain bunched Copper | |
| INSULATION | XLPE (Cross-linked Polyethylene) | |
| INDIVIDUAL SCREEN | - | AL/PET Tape (Aluminium/Polyester) |
| COLLECTIVE SCREEN | Al/PET Tape (Aluminium/Polyester) | |
| DRAIN WIRE | Tinned Copper | |
| BEDDING | PVC (Polyvinyl Chloride) | |
| ARMOUR | APL (Aluminium Polyethylene Laminate) with bunched tinned copper drain wire | |
| OUTER SHEATH | PE (Polyethylene) | |
APL Instrumentation Cable Characteristics
- Voltage Rating
- 300/500V
- Maximum Operating Temperature
- +105°C
- Minimum Bending Radius
- 9x Overall Diameter
APL Instrumentation Cable Applications
APL cables are commonly used in projects in South Africa, particularly in mining, oil and petrochemical operations where monitoring equipment is a key component.

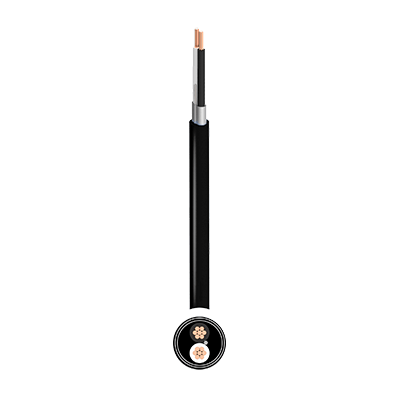

- APL CAM Armoured Instrumentation Cable

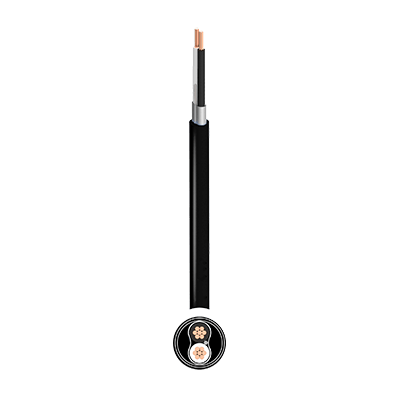

- APL ICAM Armoured Instrumentation Cable
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1P | 0.5 | 9.4 | 90 |
| 1P | 1 | 10.2 | 111 |
| 1P | 1.5 | 11 | 128 |
| 2P | 0.5 | 12.7 | 153 |
| 2P | 1 | 14.6 | 205 |
| 2P | 1.5 | 16.2 | 248 |
| 4P | 0.5 | 14.4 | 203 |
| 4P | 1 | 16.2 | 265 |
| 4P | 1.5 | 18.4 | 354 |
| 8P | 0.5 | 17.1 | 287 |
| 8P | 1 | 20.3 | 428 |
| 8P | 1.5 | 22.8 | 535 |
| 12P | 0.5 | 20 | 384 |
| 12P | 1 | 22.9 | 557 |
| 12P | 1.5 | 26.3 | 730 |
| 16P | 0.5 | 21.7 | 471 |
| 16P | 1 | 25.3 | 706 |
| 16P | 1.5 | 29.4 | 943 |
| 24P | 0.5 | 24.5 | 629 |
| 24P | 1 | 28.6 | 949 |
| 24P | 1.5 | 33 | 1256 |
| 1T | 0.5 | 9.7 | 100 |
| 1T | 1 | 10.5 | 126 |
| 1T | 1.5 | 11.4 | 148 |
| 4T | 0.5 | 15.6 | 244 |
| 4T | 1 | 18.4 | 357 |
| 4T | 1.5 | 20.6 | 442 |
| 8T | 0.5 | 19.8 | 392 |
| 8T | 1 | 22.5 | 554 |
| 8T | 1.5 | 26 | 726 |
| 12T | 0.5 | 23 | 512 |
| 12T | 1 | 26.7 | 773 |
| 12T | 1.5 | 31.4 | 1036 |
| 16T | 0.5 | 25.4 | 646 |
| 16T | 1 | 30 | 990 |
| 24T | 0.5 | 31.1 | 919 |
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2P | 0.5 | 13.4 | 177 |
| 2P | 1 | 14.9 | 224 |
| 2P | 1.5 | 16.5 | 267 |
| 4P | 0.5 | 14.8 | 234 |
| 4P | 1 | 16.5 | 297 |
| 4P | 1.5 | 19.2 | 388 |
| 8P | 0.5 | 18.5 | 378 |
| 8P | 1 | 20.9 | 496 |
| 8P | 1.5 | 23.9 | 627 |
| 12P | 0.5 | 20.7 | 465 |
| 12P | 1 | 24.4 | 682 |
| 12P | 1.5 | 27.5 | 839 |
| 16P | 0.5 | 23.6 | 591 |
| 16P | 1 | 27 | 845 |
| 16P | 1.5 | 31.4 | 1099 |
| 24P | 0.5 | 27.1 | 781 |
| 24P | 1 | 32 | 1196 |
| 24P | 1.5 | 36.8 | 1534 |
| 4T | 0.5 | 16 | 271 |
| 4T | 1 | 18.8 | 393 |
| 4T | 1.5 | 21 | 472 |
| 8T | 0.5 | 20.4 | 444 |
| 8T | 1 | 23.4 | 641 |
| 8T | 1.5 | 26.5 | 787 |
| 12T | 0.5 | 24 | 614 |
| 12T | 1 | 27.5 | 868 |
| 12T | 1.5 | 32 | 1126 |
| 16T | 0.5 | 26.1 | 747 |
| 16T | 1 | 30.7 | 1126 |
| 24T | 0.5 | 32 | 1070 |
