RE-2X(st)H cable is a low smoke zero halogen instrumentation cable suitable for use in environments where electromagnetic interference is present. The LSZH properties of this cable make it ideal for locations where fire protection is required.

  • iso-certification
  • ce-certification
  • ccc-certification
  • ul-certification
  • abs-certification
  • description
  • specifications
  • why choose us

RE2X(st)H Cable Description

Manufactured to BS EN 50288, these cables are designed for signal transmission in measurement and control systems and are commonly used in petrochemical, energy and other industrial environments.

RE-2X(st)H cables are available in collectively screened multicore, collectively screened multipair, foil collectively and individually screened pairs (PiMF) and foil collectively and individually screened triplex (TiMF).

The cables are usually available with a black or blue outer sheath. Blue is usually used for intrinsically safe cables and black for UV resistant or non-intrinsically safe cables.

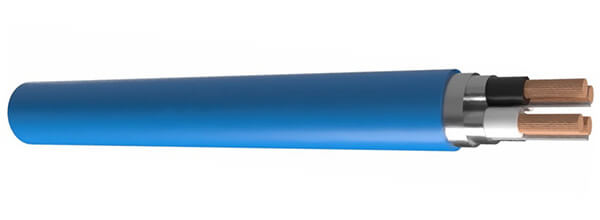

BS-EN-50288-7-RE-2XstH-Cable

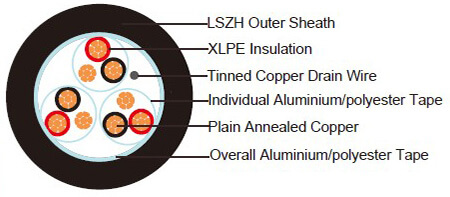

RE2X(st)H Cable Construction

EN 50288-7 - RE-2X(st)H LSZH CableEN 50288-7 - RE-2X(st)H SWAH LSZH CableEN 50288-7 RE-2X(st)H SWAH PiMF CableEN 50288-7 RE-2X(st)H LSZH PiMF Cable
VOLTAGE300V
CONDUCTOR0.5mm² - 0.75mm²: Class 5 Flexible Stranded Copper
1mm² and above: Class 2 Stranded Copper
INSULATIONXLPE (Cross-Linked Polyethylene)
INDIVIDUAL SCREEN-Al/PET (Aluminium/Polyester Tape)
COLLECTIVE SCREENAl/PET (Aluminium/Polyester Tape)
DRAIN WIRE-Tinned Copper
INNER SHEATH-LSZH (Low Smoke Zero Halogen)-
ARMOUR-SWA (Galvanised Steel Wire)-
OUTER SHEATHLSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride)LSZH (Low Smoke Zero Halogen)LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride)

RE2X(st)H Cable Characteristics

EN 50288-7 - RE-2X(st)H LSZH CableEN 50288-7 - RE-2X(st)H SWAH LSZH CableEN 50288-7 RE-2X(st)H SWAH PiMF CableEN 50288-7 RE-2X(st)H LSZH PiMF Cable
Voltage Rating300V
Operating Temperature Fixed: -40°C to +80°C
Flexed: 0°C to +50°C
Minimum Bending Radius6 x overall diameter12 x overall diameter6 x overall diameter

RE2X(st)H Cable Colur Code

  • Pairs: White, Black, numbered
  • Triples: White, Black, Red

  • EN 50288-7 - RE-2X(st)H LSZH Cable

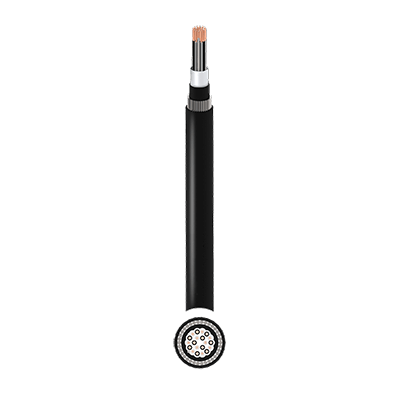

  • EN 50288-7 - RE-2X(st)H SWAH LSZH Cable

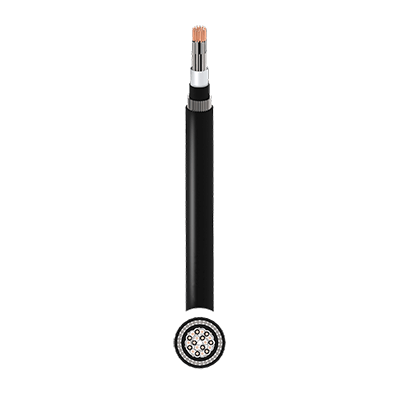

  • EN 50288-7 RE-2X(st)H SWAH PiMF Cable

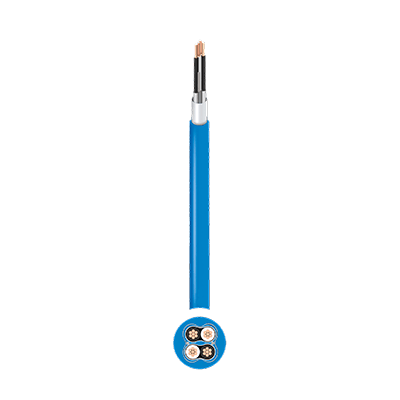

  • EN 50288-7 RE-2X(st)H LSZH PiMF Cable
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
1P0.54.6
1P0.754.6
1P15
1P1.56.4
1T0.54.8
1T0.755.4
1T15.3
1T1.56.7
2P(Q)0.56.7
2P(Q)0.757.6
2P(Q)17.5
2P(Q)1.59.7
5P0.58.6
5P0.759.8
5P19.5
5P1.512.6
10P0.511.9
10P0.7513.7
10P113.4
10P1.517.9
15P0.513.8
15P0.7515.9
15P115.5
15P1.520.8
20P0.515.5
20P0.7517.9
20P118.8
20P1.523.5
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
1P0.59
1P0.759.5
1P19.4
1P1.510.8
1T0.59.2
1T0.759.8
1T19.7
1T1.511.3
2P(Q)0.511.2
2P(Q)0.7512.2
2P(Q)112
2P(Q)1.514.4
5P0.513.1
5P0.7514.4
5P114.2
5P1.517.4
10P0.516.7
10P0.7518.6
10P118.2
10P1.523.7
15P0.511.3
15P0.7521.5
15P121
15P1.527.5
20P0.521.1
20P0.7523.7
20P123.1
20P1.530.4
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
2P0.511.9
2P0.7512.9
2P112.7
2P1.515.2
1T0.512.3
1T0.7513.4
1T113.2
1T1.515.9
5P0.514
5P0.7515.4
5P115.1
5P1.518.5
10P0.518
10P0.7520.6
10P122
10P1.526.1
15P0.520.7
15P0.7523.1
15P122.6
15P1.529.5
20P0.522.9
20P0.7526.3
20P125.8
20P1.533.5
30P0.526.8
30P0.7530.1
30P129.4
30P1.538.4
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm		NOMINAL WEIGHT
kg/km
2P0.57.3268
2P0.758.3298
2P18.1335
2P1.510.5385
1T0.57.8189
1T0.758.8210
1T18.6233
1T1.511.2266
5P0.59.4380
5P0.7510.7435
5P110.4500
5P1.513.7593
10P0.513.1587
10P0.7515687
10P114.7917
10P1.519.51099
15P0.515.1742
15P0.7517.4970
15P1171167
15P1.522.61417
20P0.517.11016
20P0.7519.71200
20P119.11416
20P1.525.61735
30P0.520.11317
30P0.7523.21574
30P122.61877
30P1.530.32738
