RE-2X(st)Y Cable Description

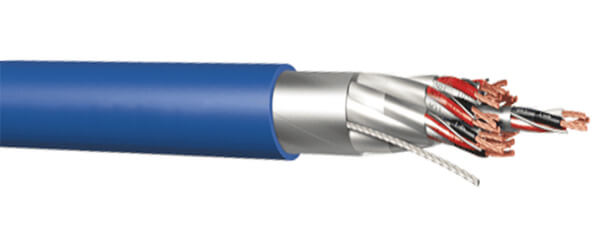

Our RE-2X(st)Y cables are XLPE insulated instrumentation cables manufactured to European standard EN 50288-7. Two shielding types are available: PiMF (Pair Foil) and TiMF (Triple Foil). The blue sheath is usually used in intrinsically safe systems, while the black sheath is usually UV resistant.

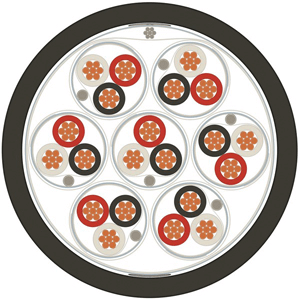

RE-2X(st)Y Cable Construction
EN 50288-7 - RE-2X(st)Y PVC Cable | EN 50288-7 - RE-2X(st)Y PVC PiMF Cable | |
---|---|---|
VOLTAGE | 300V | |
CONDUCTOR | 0.5mm² - 0.75mm²: Class 5 Flexible Stranded Copper 1mm² and above: Class 2 Stranded Copper |
|
INSULATION | XLPE (Cross-Linked Polyethylene) | |
INDIVIDUAL SCREEN | - | Al/PET (Aluminium/Polyester Tape) |
COLLECTIVE SCREEN | Al/PET (Aluminium/Polyester Tape) | |
OUTER SHEATH | PVC (Polyvinyl Chloride) |
RE-2X(st)Y Cable Characteristics
- Voltage Rating
- 300V
- Operating Temperature
- Fixed: -40°C to +80°C
- Flexed: 0°C to +50°C
- Minimum Bending Radius
- 6 x overall diameter
RE-2X(st)Y Cable Colur Code
- Pairs: White, Black, numbered
- Triples: White, Black, Red

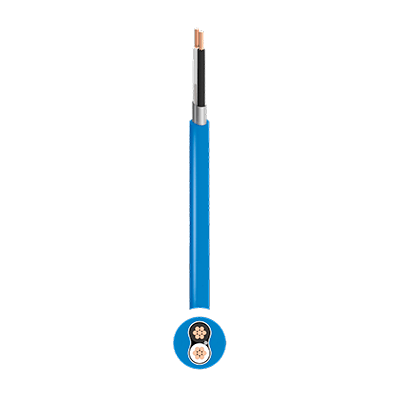

- EN 50288-7 - RE-2X(st)Y PVC Cable
- EN 50288-7 - RE-2X(st)Y PVC PiMF Cable
NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
---|---|---|
1P | 0.5 | 4.6 |
1P | 0.75 | 4.6 |
1P | 1 | 5 |
1P | 1.5 | 6.4 |
1T | 0.5 | 4.8 |
1T | 0.75 | 5.4 |
1T | 1 | 5.3 |
1T | 1.5 | 6.7 |
2P(Q) | 0.5 | 6.7 |
2P(Q) | 0.75 | 7.6 |
2P(Q) | 1 | 7.5 |
2P(Q) | 1.5 | 9.7 |
5P | 0.5 | 8.6 |
5P | 0.75 | 9.8 |
5P | 1 | 9.5 |
5P | 1.5 | 12.6 |
10P | 0.5 | 11.9 |
10P | 0.75 | 13.7 |
10P | 1 | 13.4 |
10P | 1.5 | 17.9 |
15P | 0.5 | 13.8 |
15P | 0.75 | 15.9 |
15P | 1 | 15.5 |
15P | 1.5 | 20.8 |
20P | 0.5 | 15.5 |
20P | 0.75 | 17.9 |
20P | 1 | 17.4 |
20P | 1.5 | 23.5 |
NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
---|---|---|
2P | 0.5 | 7.3 |
2P | 0.75 | 8.3 |
2P | 1 | 8.1 |
2P | 1.5 | 10.5 |
1T | 0.5 | 7.8 |
1T | 0.75 | 8.8 |
1T | 1 | 8.6 |
1T | 1.5 | 11.2 |
5P | 0.5 | 9.4 |
5P | 0.75 | 10.7 |
5P | 1 | 10.4 |
5P | 1.5 | 13.7 |
10P | 0.5 | 13.1 |
10P | 0.75 | 15 |
10P | 1 | 14.7 |
10P | 1.5 | 19.5 |
15P | 0.5 | 15.1 |
15P | 0.75 | 17.4 |
15P | 1 | 17 |
15P | 1.5 | 25.6 |
20P | 0.5 | 17.1 |
20P | 0.75 | 19.7 |
20P | 1 | 19.1 |
20P | 1.5 | 25.6 |
30P | 0.5 | 20.1 |
30P | 0.75 | 23.2 |
30P | 1 | 22.6 |
30P | 1.5 | 30.3 |
