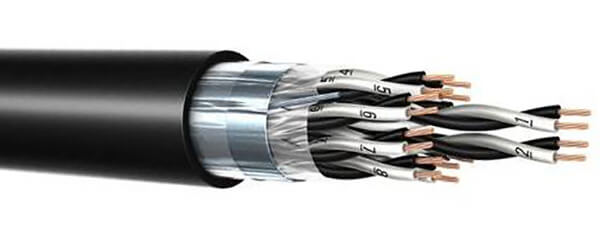

RE-2Y(st)Y Cable Description
RE-2Y(st)Y cables are particularly suitable for applications requiring immunity to electromagnetic interference, such as signal, monitoring, and data transmission in industrial electronic equipment, as well as control and instrumentation circuits, due to their protective shielding, which provides collective shielding in PiMF / TiMF structures.
The cores of the cables are usually color-coded in pairs (black and white) and numbered consecutively. The outer sheath color is black (UV-resistant) or blue (for intrinsically safe applications).

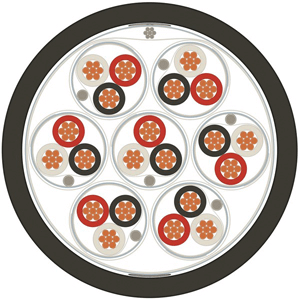

RE-2Y(st)Y Cable Construction
| EN 50288-7 - RE-2Y(st)Y SWAY PVC Cable | EN 50288-7 - RE-2Y(st)Y SWAY PVC PiMF Cable | |
|---|---|---|
| VOLTAGE | 300V | |
| CONDUCTOR | 0.5mm² - 0.75mm²: Class 5 Flexible Stranded Copper 1mm² and above: Class 2 Stranded Copper |
|
| INSULATION | PE (Polyethylene) | |
| INDIVIDUAL SCREEN | - | Al/PET (Aluminium/Polyester Tape) |
| COLLECTIVE SCREEN | Al/PET (Aluminium/Polyester Tape) | |
| INNER SHEATH | PVC (Polyvinyl Chloride) | |
| ARMOUR | SWA (Galvanised Steel Wire) | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | |
RE-2Y(st)Y Cable Characteristics
- Voltage Rating
- 300V
- Operating Temperature
- Fixed: -40°C to +80°C
- Flexed: 0°C to +50°C
- Minimum Bending Radius
- 12 x overall diameter

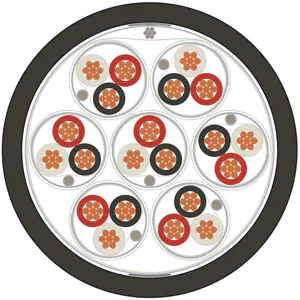

RE-2Y(st)Y Cable Colur Code
- Pairs: White, Black, numbered
- Triples: White, Black, Red
- EN 50288-7 - RE-2Y(st)Y SWAY PVC Cable

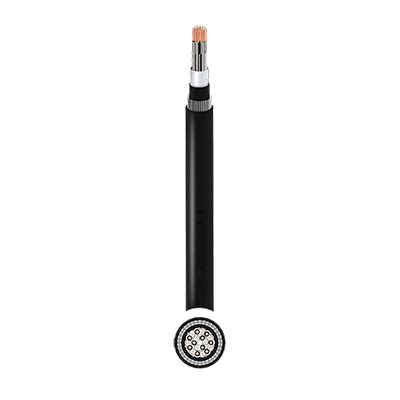

- EN 50288-7 - RE-2Y(st)Y SWAY PVC PiMF Cable
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 1P | 0.5 | 9 |
| 1P | 0.75 | 9.5 |
| 1P | 1 | 9.4 |
| 1P | 1.5 | 10.8 |
| 1T | 0.5 | 9.2 |
| 1T | 0.75 | 9.8 |
| 1T | 1 | 9.7 |
| 1T | 1.5 | 11.3 |
| 2P(Q) | 0.5 | 11.2 |
| 2P(Q) | 0.75 | 12.2 |
| 2P(Q) | 1 | 12 |
| 2P(Q) | 1.5 | 14.4 |
| 5P | 0.5 | 13.1 |
| 5P | 0.75 | 14.4 |
| 5P | 1 | 14.2 |
| 5P | 1.5 | 17.4 |
| 10P | 0.5 | 16.7 |
| 10P | 0.75 | 18.6 |
| 10P | 1 | 18.2 |
| 10P | 1.5 | 23.7 |
| 15P | 0.5 | 18.6 |
| 15P | 0.75 | 21.5 |
| 15P | 1 | 21 |
| 15P | 1.5 | 27.5 |
| 20P | 0.5 | 21.1 |
| 20P | 0.75 | 23.7 |
| 20P | 1 | 23.1 |
| 20P | 1.5 | 30.4 |
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 1P | 0.5 | 9 |
| 1P | 0.75 | 9.5 |
| 1P | 1 | 9.4 |
| 1P | 1.5 | 10.8 |
| 1T | 0.5 | 9.2 |
| 1T | 0.75 | 9.8 |
| 1T | 1 | 9.7 |
| 1T | 1.5 | 11.3 |
| 2P(Q) | 0.5 | 11.2 |
| 2P(Q) | 0.75 | 12.2 |
| 2P(Q) | 1 | 12 |
| 2P(Q) | 1.5 | 14.4 |
| 5P | 0.5 | 13.1 |
| 5P | 0.75 | 14.4 |
| 5P | 1 | 14.2 |
| 5P | 1.5 | 17.4 |
| 10P | 0.5 | 16.7 |
| 10P | 0.75 | 18.6 |
| 10P | 1 | 18.2 |
| 10P | 1.5 | 23.7 |
| 15P | 0.5 | 18.6 |
| 15P | 0.75 | 21.5 |
| 15P | 1 | 21 |
| 15P | 1.5 | 27.5 |
| 20P | 0.5 | 21.1 |
| 20P | 0.75 | 23.7 |
| 20P | 1 | 23.1 |
| 20P | 1.5 | 30.4 |
