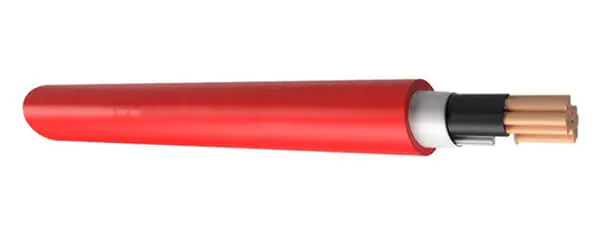

BS5308 Part 1 Type 1 is an unarmored instrumentation cable designed for indoor use, particularly in industrial process manufacturing plants and the petrochemical industry.

  • iso-certification
  • ce-certification
  • ccc-certification
  • ul-certification
  • abs-certification
  • description
  • specifications
  • why choose us

BS5308 / PAS5308 Part 1 Type 1 Cable Description

The cables are used for communication, data, and voice signal transmission, and connection of electrical equipment and instruments. Typically insulated with Polyethylene (PE), they are available with Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) jackets.

Screened designs are used to enhance signal integrity and electromagnetic compatibility (EMC). Aluminium/Polyester tape (Al/PET) may be applied to the outside of the pair/triple as an overall screen (CAM), or as both a single pair screen and an overall screen (abbreviated as IAM/CAM, ICAM, or ICAT).

Although commonly referred to as BS 5308 cables, these cable types are now often manufactured to the alternative standard PAS 5308.

BS5308-PAS5308-Part-1-Type-1-Cable

BS5308 / PAS5308 Part 1 Type 1 Cable Construction

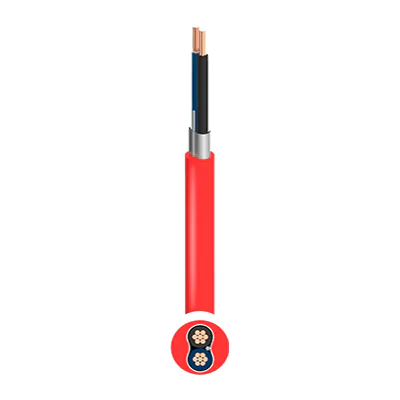

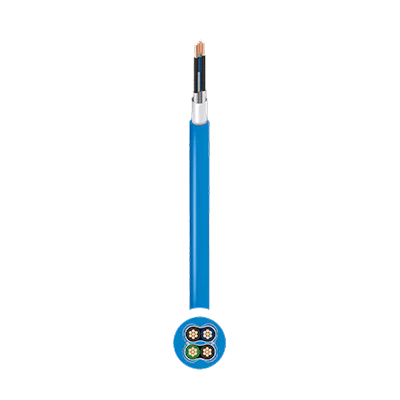

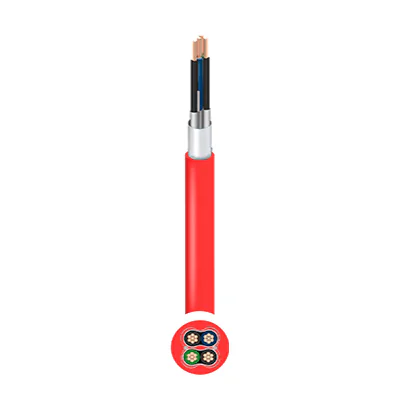

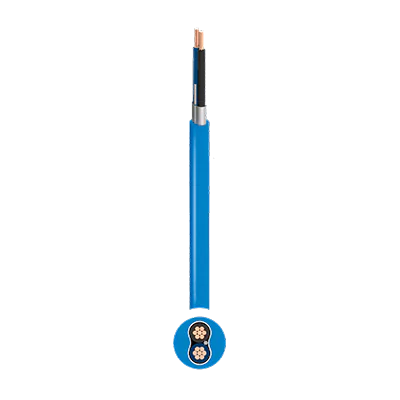

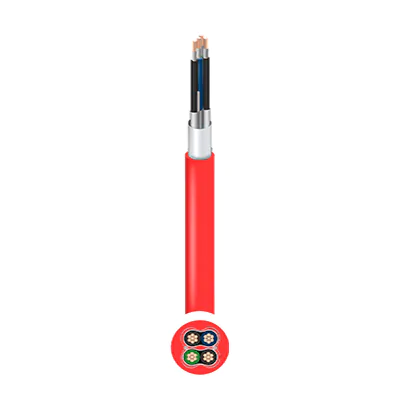

BS5308 Part 1 Type 1 CAM / ICAM PE PVC CableBS5308 Part 1 Type 1 CAM / ICAM XLPE LSZH CableBS5308 Part 1 Type 1 CAM / ICAM Mica XLPE LSZH CableBS5308 Part 1 Type 1 CAM / ICAM Silicone LSZH Cable
VOLTAGE300/500V
CONDUCTORClass 2 Stranded Copper
Class 5 Flexible Copper		Class 1 Solid Copper
Class 2 Stranded Copper
Class 5 Flexible Copper
INSULATIONPE (Polyethylene)XLPE (Cross-Linked Polyethylene)MICA Tape + XLPE (Cross-Linked Polyethylene)Silicone Rubber Ceramic Type
BINDER TAPEPET (Polyester Tape)
SCREENCAM: Al/PET (Aluminium/Polyester Tape) Collective Screen
ICAM: Al/PET (Aluminium/Polyester Tape) Individual & Collective Screen
DRAIN WIRETinned Copper
OUTER SHEATHPVC (Polyvinyl Chloride)LSZH (Low Smoke Zero Halogen)

BS5308 / PAS5308 Part 1 Type 1 Cable Characteristics

  • Voltage Rating Uo/U
  • 300/500V
  • Temperature Rating
  • Fixed: -40ºC to +80ºC
  • Flexed: 0ºC to +50ºC
  • Minimum Bending Radius
  • Fixed: 6 x overall diameter
  • Fixed: 12 x overall diameter (ICAM XLPE LSZH Cable)
  • BS5308 Part 1 Type 1 CAM PE PVC Cable
  • BS5308 Part 1 Type 1 ICAM PE PVC Cable
  • BS5308 Part 1 Type 1 CAM XLPE LSZH Cable
  • BS5308 Part 1 Type 1 ICAM XLPE LSZH Cable
  • BS5308 Part 1 Type 1 CAM Mica XLPE LSZH Cable
  • BS5308 Part 1 Type 1 ICAM Mica XLPE LSZH Cable
  • BS5308 Part 1 Type 1 CAM Silicone LSZH Cable
  • BS5308 Part 1 Type 1 ICAM Silicone LSZH Cable
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
1P0.57
1P0.757.4
1P17.4
1P1.58.3
1P2.59.1
1T0.57.3
1T0.757.7
1T17.7
1T1.58.9
1T2.59.1
2P(Q)0.57.9
2P(Q)0.758.4
2P(Q)18.4
2P(Q)1.59.7
2P(Q)2.510.7
5P0.513.1
5P0.7513.8
5P114.2
5P1.516.4
5P2.518.2
10P0.517.2
10P0.7518.9
10P118.4
10P1.521.6
10P2.525.1
15P0.519.8
15P0.7521.9
15P121.3
15P1.525.4
15P2.529,2
20P0.522.3
20P0.7524.6
20P124.4
20P1.528.5
20P2.539.8
NO. OF PAIRSNOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
2P0.510.7
2P0.7511.4
2P111.3
2P1.513.1
2P2.514.5
5P0.513.6
5P0.7514.5
5P114.5
5P1.516.8
5P2.518.9
10P0.519
10P0.7520.4
10P120.4
10P1.523.9
10P2.526.9
15P0.521.9
15P0.7523.8
15P123.7
15P1.527.6
15P2.531.1
20P0.524.6
20P0.7526.8
20P126.7
20P1.531.1
20P2.535.3
30P0.529.2
30P0.7531.5
30P131.4
30P1.526.8
30P2.541.8
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
1P0.57
1P0.757.4
1P17.4
1P1.58.3
1P2.59.1
1T0.57.3
1T0.757.7
1T17.7
1T1.58.9
1T2.59.7
2P0.57.9
Q0.57.9
2P0.758.4
Q0.758.4
2P18.4
2P1.59.7
2P2.510.7
5P0.513.1
5P0.7513.8
5P114.2
5P1.516.4
5P2.518.2
10P0.517.2
10P0.7518.9
10P118.4
10P1.521.6
10P2.525.1
15P0.519.8
15P0.7521.9
15P121.3
15P1.525.4
15P2.529.2
20P0.522.3
20P0.7524.6
20P124.4
20P1.528.5
20P2.539.8
NO. OF PAIRSNOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
2P0.510.7
2P0.7511.4
2P111.3
2P1.513.1
2P2.514.5
3P0.512.1
3P0.7512.8
3P113.4
3P1.514.5
3P2.515.9
5P0.513.6
5P0.7514.5
5P114.5
5P1.516.8
5P2.518.9
10P0.519
10P0.7520.4
10P120.4
10P1.523.9
10P2.526.9
15P0.521.9
15P0.7523.8
15P123.7
15P1.527.6
15P2.531.1
20P0.524.6
20P0.7526.8
20P126.7
20P1.531.1
20P2.535.3
30P0.529.2
30P0.7531.5
30P131.4
30P1.536.8
30P2.541.8
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
1P0.56.9
1P0.757.4
1P17.3
1P1.58.5
1P2.59.3
1T0.57.3
1T0.758.1
1T17.8
1T1.59
1T2.59.9
2P(Q)0.58.2
2P(Q)0.758.8
2P(Q)18.7
2P(Q)1.59.9
2P(Q)2.511.1
5P0.514.5
5P0.7515.6
5P115.4
5P1.517.9
5P2.520.3
10P0.521
10P0.7522.7
10P122.3
10P1.525.7
10P2.528.4
15P0.524.1
15P0.7526
15P125.6
15P1.529.6
15P2.530.3
20P0.527
20P0.7529.3
20P128.8
20P1.533.6
20P2.537.2
NO. OF PAIRSNOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
2P0.512.2
2P0.7513
2P112.9
2P1.514.7
2P2.516.1
5P0.515.5
5P0.7516.9
5P116.7
5P1.519.7
5P2.521.6
10P0.522.6
10P0.7524.3
10P124
10P1.527.6
10P2.530.5
15P0.525.9
15P0.7528
15P127.6
15P1.532
15P2.535.4
20P0.529.1
20P0.7531.7
20P131
20P1.536.1
20P2.540.5
30P0.534.4
30P0.7537.2
30P136.7
30P1.543
30P2.547.7
NO. OF PAIRS/TRIPLENOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
1P0.56.3
1P0.756.8
1P16.7
1P1.57.7
1P2.58.7
1T0.56.7
1T0.757.2
1T17.1
1T1.58.4
1T2.59.3
2P(Q)0.57.3
2P(Q)0.758.1
2P(Q)17.8
2P(Q)1.59.2
2P(Q)2.510.1
5P0.512.5
5P0.7513.5
5P113.3
5P1.515.5
5P2.517.4
10P0.517.4
10P0.7519.6
10P119.3
10P1.522.5
10P2.525
15P0.520.6
15P0.7522.4
15P122.1
15P1.525.8
15P2.528.8
20P0.523.1
20P0.7525.2
20P124.7
20P1.529
20P2.532.7
NO. OF PAIRSNOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL OVERALL DIAMETER
mm
2P0.510
2P0.7511
2P110.7
2P1.513
2P2.514.3
5P0.513.4
5P0.7514.5
5P114.3
5P1.516.8
5P2.519.3
10P0.519.4
10P0.7521.1
10P120.8
10P1.524.2
10P2.526.9
15P0.522.3
15P0.7524.2
15P123.8
15P1.527.8
15P2.531
20P0.525
20P0.7527.2
20P126.8
20P1.531.5
20P2.535.2
30P0.529.2
30P0.7532.1
30P131.5
30P1.537
30P2.542
