NF M 87 202 Cable Description
NF M 87-202 cables are used for the transmission of AC or DC analog signals and are suitable for applications requiring mechanical protection. They are available in single core, twisted pair and multi-twisted configurations. Armoured cables use a double steel tape for mechanical protection and can be laid directly underground.
These cables have PVC insulation and jacket, are flame retardant and resistant to mineral oils and hydrocarbons. Pairs are usually identified by white and red conductors, while trios are identified by blue, white and red and are numbered. Jacket colour is usually light blue.

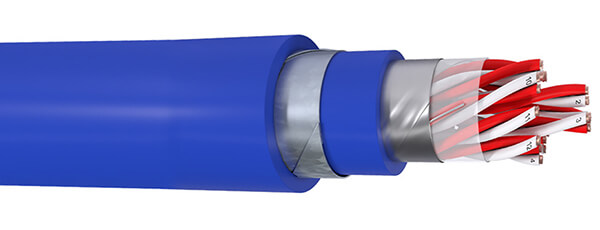

NF M 87 – 202 EGFA
NF M 87 202 Cable Construction
| NF M 87 - 202 EGFA | NF M 87 - 202 EGSF | NF M 87 - 202 EIFA | NF M 87 - 202 EISF | |
|---|---|---|---|---|
| VOLTAGE | 300/500V | |||
| CONDUCTOR | Class 1 Solid Copper Class 2 Stranded Copper |
|||
| INSULATION | PVC (Polyvinyl Chloride) | |||
| INDIVIDUAL BINDER TAPE | - | PET (Polyester Tape) | ||
| INDIVIDUAL SCREEN | - | Al/PET (Aluminium/Polyester Tape) | ||
| INDIVIDUAL SHEATH | - | PVC (Polyvinyl Chloride) | ||
| OVERALL BINDER TAPE | PET (Polyester Tape) | |||
| COLLECTIVE SCREEN | Al/PET (Aluminium/Polyester Tape) | |||
| BEDDING | - | |||
| COVERING | - | |||
| INNER SHEATH | PVC (Polyvinyl Chloride) | - | PVC (Polyvinyl Chloride) | - |
| ARMOUR | Double Steel Tape | - | Double Steel Tape | - |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | |||
NF M 87 202 Cable Characteristics
- Voltage Rating (Uo/U)
- 300/500V
- Temperature Rating
- +5°C to +50ºC
- Operating Temperature
- +90°C
NF M 87 202 Cable Model
- EGFA: Collectively Screened, Double Steel Tape Armoured Cable

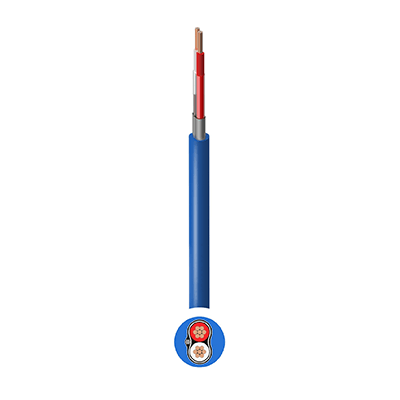

- EGSF: Collectively Screened, Unarmoured, PVC Cable

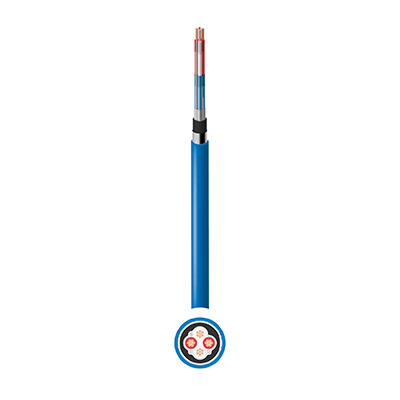

- EIFA: Individually and Collectively Screened, Double Steel Tape Armoured Cable

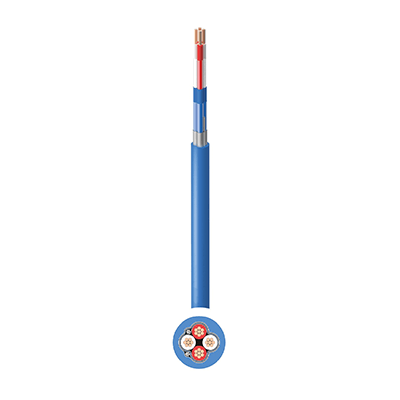

- EISF: Individually and Collectively Screened, Unarmoured, PVC Cable

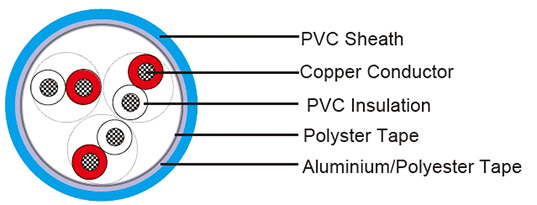

NF M 87 – 202 EGSF
- NF M 87 - 202 EGFA
- NF M 87 - 202 EGSF
- NF M 87 - 202 EIFA
- NF M 87 - 202 EISF
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 1P | 0.5 | 7.9 |
| 1P | 0.88 | 9.2 |
| 1P | 1.5 | 10.1 |
| 1T | 0.5 | 8.2 |
| 1T | 0.88 | 9.6 |
| 1T | 1.5 | 10.6 |
| 2P(Q) | 0.5 | 8.6 |
| 2P(Q) | 0.88 | 10.1 |
| 2P(Q) | 1.5 | 11.2 |
| 2T | 0.5 | 11.4 |
| 2T | 0.88 | 14.2 |
| 2T | 1.5 | 16.2 |
| 3P | 0.5 | 11.4 |
| 3P | 0.88 | 14.2 |
| 3P | 1.5 | 16.1 |
| 3T | 0.5 | 11.9 |
| 3T | 0.88 | 14.9 |
| 3T | 1.5 | 17.8 |
| 7P | 0.5 | 13.9 |
| 7P | 0.88 | 18.6 |
| 7P | 1.5 | 21.3 |
| 7T | 0.5 | 14.6 |
| 7T | 0.88 | 19.6 |
| 7T | 1.5 | 23 |
| 12P | 0.5 | 18.2 |
| 12P | 0.88 | 24 |
| 12P | 1.5 | 28.2 |
| 12T | 0.5 | 19.2 |
| 12T | 0.88 | 25.4 |
| 12T | 1.5 | 30.3 |
| 19P | 0.5 | 20.7 |
| 19P | 0.88 | 28 |
| 19P | 1.5 | 32.9 |
| 19T | 0.5 | 22.3 |
| 19T | 0.88 | 30.1 |
| 19T | 1.5 | 35 |
| 27P | 0.5 | 24.6 |
| 27P | 0.88 | 33.4 |
| 27P | 1.5 | 39 |
| 27T | 0.5 | 26.5 |
| 27T | 0.88 | 35.5 |
| 27T | 1.5 | 41.5 |
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 1P | 0.5 | 4.7 |
| 1P | 0.88 | 6 |
| 1P | 1.5 | 6.9 |
| 1T | 0.5 | 5 |
| 1T | 0.88 | 6.4 |
| 1T | 1.5 | 7.4 |
| 2P(Q) | 0.5 | 5.4 |
| 2P(Q) | 0.88 | 6.9 |
| 2P(Q) | 1.5 | 8 |
| 2T | 0.5 | 8.2 |
| 2T | 0.88 | 11 |
| 2T | 1.5 | 13 |
| 3P | 0.5 | 8.2 |
| 3P | 0.88 | 11 |
| 3P | 1.5 | 12.9 |
| 3T | 0.5 | 8.7 |
| 3T | 0.88 | 11.7 |
| 3T | 1.5 | 14.2 |
| 7P | 0.5 | 10.7 |
| 7P | 0.88 | 15 |
| 7P | 1.5 | 17.7 |
| 7T | 0.5 | 11.4 |
| 7T | 0.88 | 16 |
| 7T | 1.5 | 19.4 |
| 12P | 0.5 | 14.6 |
| 12P | 0.88 | 20.4 |
| 12P | 1.5 | 24.6 |
| 12T | 0.5 | 15.6 |
| 12T | 0.88 | 21.8 |
| 12T | 1.5 | 26.9 |
| 19P | 0.5 | 17.1 |
| 19P | 0.88 | 24.4 |
| 19P | 1.5 | 28.9 |
| 19T | 0.5 | 18.7 |
| 19T | 0.88 | 26.1 |
| 19T | 1.5 | 31 |
| 27P | 0.5 | 21 |
| 27P | 0.88 | 29.4 |
| 27P | 1.5 | 35 |
| 27T | 0.5 | 22.9 |
| 27T | 0.88 | 31.5 |
| 27T | 1.5 | 37.5 |
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 1P | 0.5 | 9.3 |
| 1P | 0.88 | 10.6 |
| 1P | 1.5 | 11.5 |
| 1T | 0.5 | 9.5 |
| 1T | 0.88 | 10.9 |
| 1T | 1.5 | 11.9 |
| 2P(Q) | 0.5 | 9.9 |
| 2P(Q) | 0.88 | 11.5 |
| 2P(Q) | 1.5 | 12.6 |
| 2T | 0.5 | 14.1 |
| 2T | 0.88 | 17.7 |
| 2T | 1.5 | 19.7 |
| 3P | 0.5 | 14.3 |
| 3P | 0.88 | 17.9 |
| 3P | 1.5 | 19.8 |
| 3T | 0.5 | 14.8 |
| 3T | 0.88 | 18.6 |
| 3T | 1.5 | 20.7 |
| 7P | 0.5 | 18.8 |
| 7P | 0.88 | 23.1 |
| 7P | 1.5 | 25.8 |
| 7T | 0.5 | 19.5 |
| 7T | 0.88 | 24.1 |
| 7T | 1.5 | 27.4 |
| 12P | 0.5 | 24.2 |
| 12P | 0.88 | 30.4 |
| 12P | 1.5 | 34.2 |
| 12T | 0.5 | 25.2 |
| 12T | 0.88 | 31.8 |
| 12T | 1.5 | 35.9 |
| 19P | 0.5 | 28.3 |
| 19P | 0.88 | 35.2 |
| 19P | 1.5 | 39.7 |
| 19T | 0.5 | 29.9 |
| 19T | 0.88 | 36.9 |
| 19T | 1.5 | 41.7 |
| 27P | 0.5 | 33.7 |
| 27P | 0.88 | 41.7 |
| 27P | 1.5 | 47.3 |
| 27T | 0.5 | 35.2 |
| 27T | 0.88 | 43.8 |
| 27T | 1.5 | 49.8 |
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 1P | 0.5 | 6.1 |
| 1P | 0.88 | 7.4 |
| 1P | 1.5 | 8.3 |
| 1T | 0.5 | 6.3 |
| 1T | 0.88 | 7.7 |
| 1T | 1.5 | 8.7 |
| 2P(Q) | 0.5 | 6.7 |
| 2P(Q) | 0.88 | 8.5 |
| 2P(Q) | 1.5 | 9.4 |
| 2T | 0.5 | 10.9 |
| 2T | 0.88 | 14.1 |
| 2T | 1.5 | 16.1 |
| 3P | 0.5 | 11.1 |
| 3P | 0.88 | 14.3 |
| 3P | 1.5 | 16.2 |
| 3T | 0.5 | 11.6 |
| 3T | 0.88 | 15 |
| 3T | 1.5 | 17.1 |
| 7P | 0.5 | 15.2 |
| 7P | 0.88 | 19.5 |
| 7P | 1.5 | 22.2 |
| 7T | 0.5 | 15.9 |
| 7T | 0.88 | 25 |
| 7T | 1.5 | 23.8 |
| 12P | 0.5 | 20.6 |
| 12P | 0.88 | 26.4 |
| 12P | 1.5 | 30.2 |
| 12T | 0.5 | 21.6 |
| 12T | 0.88 | 27.8 |
| 12T | 1.5 | 31.9 |
| 19P | 0.5 | 24.7 |
| 19P | 0.88 | 31.2 |
| 19P | 1.5 | 35.7 |
| 19T | 0.5 | 25.9 |
| 19T | 0.88 | 32.9 |
| 19T | 1.5 | 37.7 |
| 27P | 0.5 | 29.7 |
| 27P | 0.88 | 37.7 |
| 27P | 1.5 | 43.3 |
| 27T | 0.5 | 31.2 |
| 27T | 0.88 | 39.8 |
| 27T | 1.5 | 45.8 |
