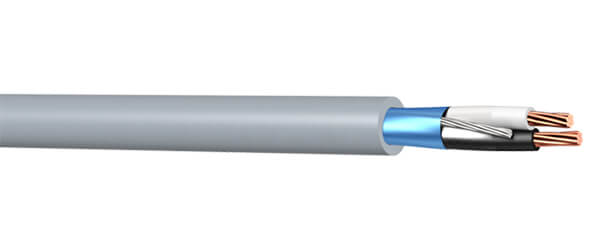

UL Style Tray Cable

UL Tray Cable Description

UL Style Tray Cable is divided into different categories: PLTC (Power Limited Tray Cable), ITC (Instrument Tray Cable), TC (Tray Cable), TC-ER (Tray Cable – Exposed Run), etc.

PLTC cables are used for power-limited circuits and are commonly found in industrial control systems, alarm systems, and intercom systems. ITC cables are a subset of PLTC cables and are designed for instrumentation and control line applications.

TC cables are designed for power and control applications and are suitable for Class 1 Division 2 hazardous locations and Class 1 control circuits. TC-ER cables are similar to TC cables, but have the added ability to be unsupported for a short distance (usually 6 feet) outside the cable tray.

UL Tray Cable Construction

	UL13 UL2250 ITC-PLTC 105oC PVC-PVC unscreened 300V Cable	UL13 UL2250 ITC-PLTC 105oC PVC-PVC Overall Screen 300V Cable	UL13 UL2250 ITC-PLTC 105oC PVC-PVC ICAM/CAM 300V Cable	UL 1277 CAM/ICAM TC-ER 600V Cable	UL 1277 CAM TC-ER 600V Cable
VOLTAGE	300/300V			600V
CONDUCTOR	Plain annealed Copper
INSULATION	PVC (Polyvinyl Chloride)			PVC (Polyvinyl Chloride) / Nylon
INDIVIDUAL SCREEN	-	-	Al/PET Tape (Aluminium/Polyester) with tinned Copper drain wire		-
COLLECTIVE SCREEN	-	Al/PET Tape (Aluminium/Polyester)
DRAIN WIRE	-	Tinned Copper
COMMUNICATION WIRE	-	Plain annealed Copper, PVC insulated		-
OUTER SHEATH	PVC (Polyvinyl Chloride)

UL Tray Cable Characteristics

	UL13 UL2250 ITC-PLTC 105oC PVC-PVC unscreened 300V Cable	UL13 UL2250 ITC-PLTC 105oC PVC-PVC Overall Screen 300V Cable	UL13 UL2250 ITC-PLTC 105oC PVC-PVC ICAM/CAM 300V Cable	UL 1277 CAM/ICAM TC-ER 600V Cable	UL 1277 CAM TC-ER 600V Cable
Voltage Rating	300V			600V
Test Voltage	Core-Core: 1500V Core-Screen: 1500V			-
Temperature Rating	Fixed: -40°C +105°C During installation: -5°C +50°C			Dry: 90°C
Minimum Bending Radius	7.5 x overall diameter

UL Tray Cable Applications

Industrial Manufacturing
Power Generation and Distribution
Petrochemical Industry
Commercial Buildings
Data Centers and IT Infrastructure
Hazardous Locations

UL13 UL2250 ITC-PLTC 105oC PVC-PVC unscreened 300V Cable

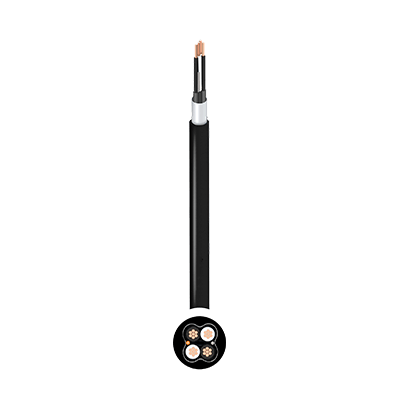

UL13 UL2250 ITC-PLTC 105oC PVC-PVC Overall Screen 300V Cable

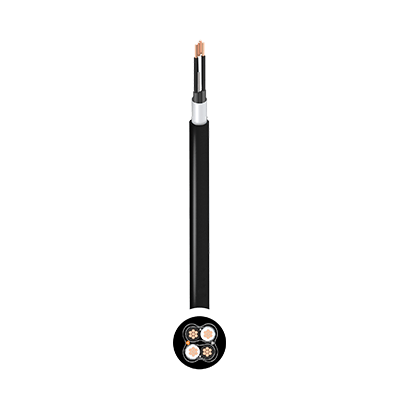

UL13 UL2250 ITC-PLTC 105oC PVC-PVC ICAM / CAM 300V Cable

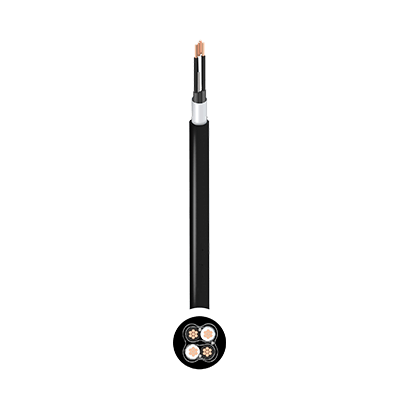

UL 1277 CAM / ICAM TC-ER 600V Cable

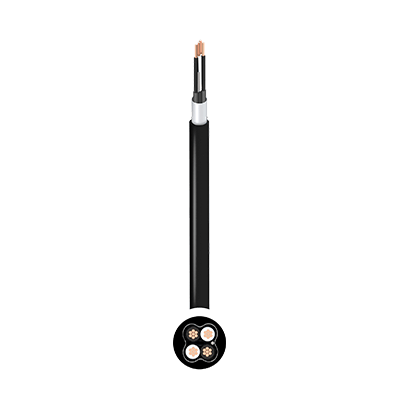

UL 1277 CAM TC-ER 600V Cable

NO. OF PAIRS/TRIADS	CONDUCTOR AWG	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1P	14	0.51	1.02	7.94	119
1P	16	0.38	0.89	6.48	76
1P	18	0.38	0.89	5.88	57
1P	20	0.3	0.89	5.08	40
2P	14	0.51	1.27	12.14	270
2P	16	0.38	1.27	10.14	182
2P	18	0.38	1.27	9.14	139
2P	20	0.3	1.02	7.34	86
4P	14	0.51	1.52	14.54	454
4P	16	0.38	1.27	11.74	289
4P	18	0.38	1.27	10.54	215
4P	20	0.3	1.27	8.84	147
6P	14	0.51	1.52	17.34	665
6P	16	0.38	1.52	14.44	440
6P	18	0.38	1.27	12.44	310
6P	20	0.3	1.27	10.34	207
10P	14	0.51	1.78	22.56	1128
10P	16	0.38	1.52	18.14	716
10P	18	0.38	1.52	16.14	529
10P	20	0.3	1.52	13.44	355
12P	14	0.51	1.78	23.26	1271
12P	16	0.38	1.78	19.26	837
12P	18	0.38	1.52	16.74	596
12P	20	0.3	1.52	13.84	395
18P	14	0.51	2.03	27.76	1870
18P	16	0.38	1.78	22.46	1195
18P	18	0.38	1.78	19.96	877
18P	20	0.3	1.52	16.04	556
24P	14	0.51	2.03	32.46	2525
24P	16	0.38	2.03	26.66	3220
24P	18	0.38	1.78	23.16	1176
24P	20	0.3	1.78	19.06	775
50P	14	0.51	2.29	44.08	4979
50P	16	0.38	2.29	35.98	3878
50P	18	0.38	2.03	31.36	2301
50P	20	0.3	1.78	25.16	1466
1T	14	0.51	1.02	8.34	154
1T	16	0.38	1.02	7.14	103
1T	18	0.38	0.89	6.18	73
1T	20	0.3	0.89	5.28	50
2T	14	0.51	1.27	13.44	362
2T	16	0.38	1.27	11.24	243
2T	18	0.38	1.27	10.14	181
2T	20	0.3	1.02	8.04	113
4T	14	0.51	1.52	16.14	616
4T	16	0.38	1.27	13.04	391
4T	18	0.38	1.27	11.64	289
4T	20	0.3	1.27	9.74	193
6T	14	0.51	1.78	19.86	940
6T	16	0.38	1.52	16.04	599
6T	18	0.38	1.52	14.34	441
6T	20	0.3	1.27	11.54	277
8T	14	0.51	1.78	22.36	1215
8T	16	0.38	1.52	18.04	771
8T	18	0.38	1.52	16.04	567
8T	20	0.3	1.27	12.84	358
10T	14	0.51	1.78	25.16	1544
10T	16	0.38	1.78	20.86	1011
10T	18	0.38	1.52	18.04	714
10T	20	0.3	1.52	14.94	475
12T	14	0.51	1.78	26.16	1759
12T	16	0.38	1.78	21.56	1146
12T	18	0.38	1.52	18.64	810
12T	20	0.3	1.52	15.44	534
16T	14	0.51	2.03	29.56	2305
16T	16	0.38	1.78	23.86	1472
16T	18	0.38	1.78	21.16	1070
16T	20	0.3	1.78	17.04	678
18T	14	0.51	2.03	31.16	2584
18T	16	0.38	1.78	25.16	1646
18T	18	0.38	1.78	22.36	1191
18T	20	0.3	1.78	17.94	756
24T	14	0.51	2.29	37.08	3551
24T	16	0.38	2.03	29.96	2267
24T	18	0.38	1.78	26.06	1612
24T	20	0.3	1.78	21.36	1052
50T	14	0.51	2.29	49.78	6945
50T	16	0.38	2.29	40.88	4470
50T	18	0.38	2.03	35.26	3177
50T	20	0.3	2.03	28.76	2056

NO. OF PAIRS/TRIADS	CONDUCTOR AWG	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1P	14	0.51	1.02	8.04	128
1P	16	0.38	0.89	6.58	83
1P	18	0.38	0.89	5.98	65
1P	20	0.3	0.89	5.18	47
2P	14	0.51	1.27	12.24	280
2P	16	0.38	1.27	10.24	191
2P	18	0.38	1.27	9.24	148
2P	20	0.3	1.02	7.44	94
4P	14	0.51	1.52	14.64	465
4P	16	0.38	1.27	11.84	298
4P	18	0.38	1.27	10.64	224
4P	20	0.3	1.27	8.94	156
6P	14	0.51	1.52	17.44	676
6P	16	0.38	1.52	14.54	451
6P	18	0.38	1.27	12.54	319
6P	20	0.3	1.27	10.44	215
8P	14	0.51	1.78	20.06	901
8P	16	0.38	1.52	16.24	577
8P	18	0.38	1.52	14.54	430
8P	20	0.3	1.27	11.64	272
10P	14	0.51	1.78	22.66	1141
10P	16	0.38	1.52	18.24	727
10P	18	0.38	1.52	16.24	538
10P	20	0.3	1.52	13.54	365
12P	14	0.51	1.78	23.36	1284
12P	16	0.38	1.78	19.36	848
12P	18	0.38	1.52	16.84	606
12P	20	0.3	1.52	13.94	404
16P	14	0.51	1.78	25.96	1646
16P	16	0.38	1.78	21.46	1080
16P	18	0.38	1.78	19.06	798
16P	20	0.3	1.78	15.34	511
18P	14	0.51	2.03	27.86	1884
18P	16	0.38	1.78	22.56	1208
18P	18	0.38	1.78	20.06	889
18P	20	0.3	1.52	16.14	569
24P	14	0.51	2.03	32.56	2542
24P	16	0.38	2.03	26.76	1663
24P	18	0.38	1.78	23.26	1189
24P	20	0.3	1.78	19.16	787
50P	14	0.51	2.29	44.18	5000
50P	16	0.38	2.29	36.08	3239
50P	18	0.38	2.03	31.46	2318
50P	20	0.3	1.78	25.26	1480
1T	14	0.51	1.02	8.44	162
1T	16	0.38	1.02	7.24	111
1T	18	0.38	0.89	6.28	80
1T	20	0.3	0.89	5.38	57
2T	14	0.51	1.27	13.54	373
2T	16	0.38	1.27	11.34	253
2T	18	0.38	1.27	10.24	190
2T	20	0.3	1.02	8.14	122
4T	14	0.51	1.52	16.24	629
4T	16	0.38	1.27	13.14	403
4T	18	0.38	1.27	11.74	298
4T	20	0.3	1.27	9.84	202
6T	14	0.51	1.78	19.96	955
6T	16	0.38	1.52	16.14	612
6T	18	0.38	1.52	14.44	454
6T	20	0.3	1.27	11.64	287
8T	14	0.51	1.78	22.46	1232
8T	16	0.38	1.52	18.14	786
8	18	0.38	1.52	16.14	580
8T	20	0.3	1.27	12.94	369
10T	14	0.51	1.78	25.36	1563
10T	16	0.38	1.78	20.96	1028
10T	18	0.38	1.52	18.14	730
10T	20	0.3	1.52	15.04	487
12T	14	0.51	1.78	26.26	1776
12T	16	0.38	1.78	21.66	1163
12T	18	0.38	1.52	18.74	823
12T	20	0.3	1.52	15.54	547
16T	14	0.51	2.03	29.66	2324
16T	16	0.38	1.78	23.96	1490
16T	18	0.38	1.78	21.26	1086
16T	20	0.3	1.52	17.14	692
18T	14	0.51	2.03	31.26	2605
18T	16	0.38	1.78	25.26	1665
18T	18	0.38	1.78	22.46	1210
18T	20	0.3	1.52	18.04	768
24T	14	0.51	2.29	37.18	3576
24T	16	0.38	2.03	30.06	2288
24T	18	0.38	1.78	26.16	1631
24T	20	0.3	1.78	21.46	1070
50T	14	0.51	2.29	49.88	6976
50T	16	0.38	2.29	40.68	4497
50T	18	0.38	2.03	35.36	3201
50T	20	0.3	2.03	28.86	2075

NO. OF PAIRS/TRIADS	CONDUCTOR AWG	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2P	14	0.51	1.27	13.44	324
2P	16	0.38	1.27	11.34	226
2P	18	0.38	1.27	10.24	177
2P	20	0.3	1.02	8.34	117
4P	14	0.51	1.52	16.14	538
4P	16	0.38	1.27	13.04	354
4P	18	0.38	1.27	11.84	271
4P	20	0.3	1.27	10.04	194
6P	14	0.51	1.52	19.34	785
6P	16	0.38	1.52	16.14	532
6P	18	0.38	1.27	14.04	389
6P	20	0.3	1.27	11.84	275
10P	14	0.51	1.78	25.16	1335
10P	16	0.38	1.52	20.34	870
10P	18	0.38	1.52	18.24	662
10P	20	0.3	1.52	15.44	464
12P	14	0.51	1.78	26.06	1499
12P	16	0.38	1.52	21.04	979
12P	18	0.38	1.52	18.84	741
12P	20	0.3	1.52	15.84	518
18P	14	0.51	1.78	30.46	2151
18P	16	0.38	1.78	25.16	1441
18P	18	0.38	1.78	22.46	1089
18P	20	0.3	1.52	18.44	729
20P	14	0.51	2.03	32.76	2445
20P	16	0.38	1.78	26.56	1600
20P	18	0.38	1.78	23.76	1206
20P	20	0.3	1.78	23.76	815
24P	14	0.51	2.03	36.36	2969
24P	16	0.38	2.03	29.96	1982
24P	18	0.38	1.78	26.26	1463
24P	20	0.3	1.78	26.06	1015
50P	14	0.51	2.29	49.38	5842
50P	16	0.38	2.29	40.48	3876
50P	18	0.38	2.03	35.56	2857
50P	20	0.3	1.78	29.06	1930
2T	14	0.51	1.27	14.84	429
2T	16	0.38	1.27	12.54	291
2T	18	0.38	1.27	11.24	230
2T	20	0.3	1.02	9.04	149
4T	14	0.51	1.52	17.74	718
4T	16	0.38	1.27	14.54	465
4T	18	0.38	1.27	12.94	355
4T	20	0.3	1.27	10.94	249
6T	14	0.51	1.52	21.34	1056
6T	16	0.38	1.52	17.94	706
6T	18	0.38	1.27	15.44	516
6T	20	0.3	1.27	12.94	359
8T	14	0.51	1.78	24.56	1411
8T	16	0.38	1.52	20.14	911
8T	18	0.38	1.52	17.84	696
8T	20	0.3	1.27	14.44	460
10T	14	0.51	1.78	27.86	1792
10T	16	0.38	1.52	22.84	1160
10T	18	0.38	1.52	20.24	879
10T	20	0.3	1.52	16.84	602
12T	14	0.51	1.78	28.86	2030
12T	16	0.38	1.78	24.16	1349
12T	18	0.38	1.52	20.84	990
12T	20	0.3	1.52	17.34	677
16T	14	0.51	1.78	32.06	2609
16T	16	0.38	1.78	26.76	1728
16T	20	0.3	1.52	19.24	860
18T	14	0.51	2.03	34.36	2975
18T	16	0.38	1.78	28.26	1935
18T	18	0.38	1.78	24.96	1453
18T	20	0.3	1.52	26.36	962
24T	14	0.51	2.03	40.36	4038
24T	16	0.38	2.03	33.66	2661
24T	18	0.38	1.78	29.16	1972
24T	20	0.3	1.78	24.16	1338
50T	14	0.51	2.29	55.08	7990
50T	16	0.38	2.29	45.68	5233
50T	18	0.38	2.03	39.66	3862
50T	20	0.3	1.78	32.06	2564

NO. OF PAIRS	CONDUCTOR AWG	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
2	16	0.51	1.14	12.38	230
2	18	0.51	1.14	11.18	171
3	16	0.51	1.14	13.18	296
3	18	0.51	1.14	11.88	219
4	16	0.51	1.14	14.48	374
4	18	0.51	1.14	12.98	274
5	16	0.51	1.52	16.64	481
5	18	0.51	1.52	14.94	355
7	16	0.51	1.52	18.04	622
7	18	0.51	1.52	16.24	455
8	16	0.51	1.52	20.24	737
12	16	0.51	1.52	23.74	1063
12	18	0.51	1.52	21.14	774
16	16	0.51	2.03	27.46	1423
16	18	0.51	2.03	24.46	1039
20	16	0.51	2.03	30.46	1766
20	18	0.51	2.03	27.16	1290
24	16	0.51	2.03	33.76	2140
24	18	0.51	2.03	30.46	1558
36	16	0.51	2.03	38.66	3030
36	18	0.51	2.03	34.36	2198
50	16	0.51	2.03	45.26	4191
50	18	0.51	2.03	40.06	3029

NO. OF PAIRS/TRIADS	CONDUCTOR AWG	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1P	16	0.51	1.14	6.8	83
1P	18	0.51	1.14	7.1	69
2P	16	0.51	1.14	11	145
2P	18	0.51	1.14	10	111
3P	16	0.51	1.14	11.7	184
3P	18	0.51	1.14	10.6	139
4P	16	0.51	1.52	13.6	252
4P	18	0.51	1.14	11.5	168
5P	16	0.51	1.52	14.8	297
5P	18	0.51	1.52	13.4	225
7P	16	0.51	1.52	16	378
7P	18	0.51	1.52	14.5	282
12P	16	0.51	1.52	20.9	596
12P	18	0.51	1.52	18.7	438
16P	16	0.51	2.03	24.2	816
16P	18	0.51	2.03	21.7	606
20P	16	0.51	2.03	26.8	986
20P	18	0.51	2.03	24	727
24P	16	0.51	2.03	29.6	1156
24P	18	0.51	2.03	26.5	849
36P	16	0.51	2.03	33.8	1625
36P	18	0.51	2.03	30.2	1176
50P	16	0.51	2.03	39.5	2180
50P	18	0.51	2.03	35.1	1567
1T	16	0.51	1.14	11.7	131
1T	18	0.51	1.14	7.5	83
