6381B Cable Description
Our 6381B cable complies with BS 7211 and IEC 60502-1 standards and features Low Smoke Zero Halogen (LSZH) insulation and outer sheath. This makes it suitable for use in locations where fire, smoke, and toxic gases may be present. It is also commonly referred to as conduit wiring.
The cable is available in blue, grey, or green/yellow as standard, but other colours are available on request.

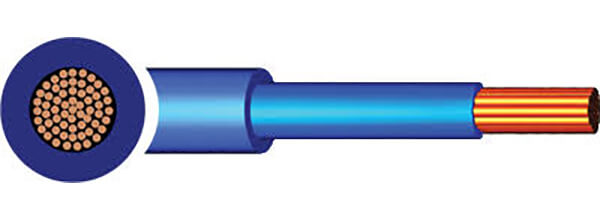

6381B Cable Construction
- Conductor
- Class 5 Flexible Stranded Annealed Copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
6381B Cable Characteristics
- Voltage Rating Uo/U
- Up to 35mm²: 450/750V
- 50mm² and above: 0.6/1kV
- Temperature Rating
- Fixed: 0°C to +90°C
- Maximum operating temperature: +90°C
- Short-circuit temperature: +250°C
- Minimum Bending Radius
- Up to 50mm²: 3 x overall diameter
- 70mm² and above: 4 x overall diameter
6381B Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL INSULATION THICKNESS mm | NOMINAL OUTER SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 1.5 | 1.51 | 0.7 | 0.8 | 4.5 | 30 |
| 1 | 2.5 | 1.95 | 0.7 | 0.8 | 4.95 | 40 |
| 1 | 4 | 2.45 | 0.7 | 0.9 | 5.65 | 58 |
| 1 | 6 | 3.6 | 0.7 | 0.8 | 6.5 | 78 |
| 1 | 10 | 3.96 | 0.7 | 0.8 | 7.2 | 120 |
| 1 | 16 | 5.15 | 0.7 | 0.9 | 8.5 | 178 |
| 1 | 25 | 6.5 | 0.9 | 0.9 | 10.3 | 263 |
| 1 | 35 | 7.5 | 0.9 | 1 | 11.5 | 361 |
| 1 | 50 | 9.5 | 1 | 1.1 | 14 | 518 |
| 1 | 70 | 11.35 | 1.1 | 1.1 | 16 | 704 |
| 1 | 95 | 12.9 | 1.1 | 1.2 | 18 | 918 |
| 1 | 120 | 14.8 | 1.2 | 1.2 | 20 | 1159 |
| 1 | 150 | 16.2 | 1.4 | 1.25 | 22 | 1437 |
| 1 | 185 | 17.9 | 1.6 | 1.25 | 24.5 | 1740 |
| 1 | 240 | 20.5 | 1.8 | 1.3 | 27 | 2252 |
