AXQJ Cable Description
AXQJ cables feature aluminum conductors, cross-linked polyethylene (XLPE) insulation, a halogen-free flame-retardant (HFFR) padding, and an outer sheath. This EMC version features copper wire and copper tape shielding, providing 100% electromagnetic compatibility.
Compared to FXQJ copper core cables, AXQJ cables are lighter and suitable for high-power distribution. Both are widely used in industrial and local power distribution projects.

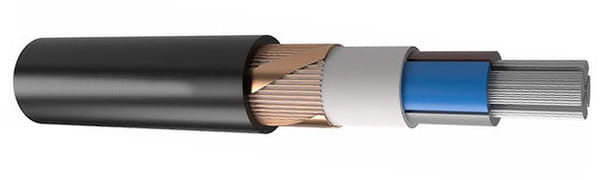

AXQJ Cable Construction
| AXQJ Cable | AXQJ EMC Cable | |
|---|---|---|
| Conductor | Class 2 sectorial shaped Aluminium | |
| Insulation | XLPE (Cross-linked Polyethylene) | |
| Bedding | HFFR (Halogen free Flame retardant) | HFFR (Halogen-free flame retardant) compound |
| Screen | Copper wires in an opposite open helix of copper tape | Copper wires with opposite open helix of copper tape |
| Outer Sheath | HFFR (Halogen-free flame retardant) compound | |
AXQJ Cable Characteristics
| AXQJ Cable | AXQJ EMC Cable | |
|---|---|---|
| Voltage Rating | 0.6/1kV | |
| Temperature Rating | Minmum installation: -10°C Operating: -30°C to +90°C Maximum Short-Circuit: 250°C | Minmum installation: 0°C Recommended minimum installation: 0°C Maximum Operating: 90°C Maximum Short-Circuit: 250°C |
| Minimum Bending Radius | Fixed: 8 x overall diameter Flexed: 12 x overall diameter | 12x overall diameter |
- AXQJ Cable
- AXQJ EMC Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 3 | 50 | 26 | 87 |
| 3 | 70 | 30 | 110 |
| 3 | 95 | 33.3 | 150 |
| 3 | 120 | 38 | 185 |
| 3 | 150 | 41 | 225 |
| 3 | 185 | 45 | 287 |
| 3 | 240 | 51 | 360 |
| 3 | 300 | 55 | 445 |
| 4 | 50 | 29.3 | 108 |
| 4 | 70 | 33.3 | 144.2 |
| 4 | 95 | 33 | 190 |
| 4 | 120 | 38 | 238.6 |
| 4 | 150 | 41 | 285 |
| 4 | 185 | 45 | 360 |
| 4 | 240 | 51 | 435 |
| 4 | 300 | 55 | 572 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 4 | 50 | 29 | 113 |
| 4 | 95 | 38 | 204 |
| 4 | 150 | 48 | 313 |
| 4 | 240 | 58 | 500 |
