BS7846 Cable

BS7846 Cable Description

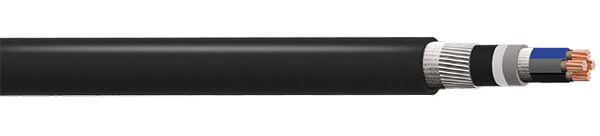

BS7846 cable features bare copper stranded conductors, mica fire-retardant tape, thermosetting cross-linked polyethylene (XLPE) insulation, a low-smoke halogen-free (LSZH) outer sheath, and gaskets. All components are protected by steel wire armor (SWA). It is crucial for applications such as emergency lighting and fire alarm systems.

BS7846 Cable Construction

Conductor
Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
SWA (Galvanised Steel Wire Armour)
Sheath
LSZH (Low Smoke Zero Halogen)

BS7846 Cable Characteristics

Voltage Rating
0.6/1kV
Operating Temperature
-20ºC to +90ºC
Minimum Bending Radius
During Installation: 8 x overall diameter

BS7846 Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	INSULATION RADIAL THICKNESS mm	GALVANISED STEEL ARMOUR WIRE DIAMETER mm	OUTER SHEATH RADIAL THICKNESS mm	OUTER SHEATH DIAMETER mm	NOMINAL WEIGHT kg/km
2	4	0.7	1.25	1.4	23.9	950
2	6	0.7	1.25	1.4	25.1	1100
2	10	0.7	1.25	1.5	26.4	1200
2	16	0.7	1.25	1.5	28.3	1400
2	25	0.9	1.25	1.6	31.4	1800
2	35	0.9	1.6	1.7	34.1	2250
3	4	0.7	1.25	1.4	23.4	950
3	6	0.7	1.25	1.4	24.7	1100
3	10	0.7	1.25	1.5	25.2	1200
3	16	0.7	1.25	1.6	27.4	1500
3	25	0.9	1.6	1.7	31.7	2000
3	35	0.9	1.6	1.8	34	2500
3	50	1	1.6	1.8	32.7	2750
3	70	1.1	1.6	1.9	36.4	3500
3	95	1.1	2	2.1	41	4750
3	120	1.2	2	2.2	44.5	5500
3	150	1.4	2.5	2.3	49.3	7000
3	185	1.6	2.5	2.4	53.4	8250
3	240	1.7	2.5	2.6	58.7	10500
3	300	1.8	2.5	2.7	63.7	12500
3	400	2	2.5	2.9	71.1	15500
4	4	0.7	1.25	1.4	24.7	1100
4	6	0.7	1.25	1.5	26.2	1200
4	10	0.7	1.25	1.5	27.8	1500
4	16	0.7	1.25	1.6	29.3	1700
4	25	0.9	1.6	1.7	34	2500
4	35	0.9	1.6	1.8	35.2	3000
4	50	1	1.6	1.9	36.6	3250
4	70	1.1	2	2.1	40.3	4500
4	95	1.1	2	2.2	44.6	5750
4	120	1.2	2.5	2.3	49.5	7250
4	150	1.4	2.5	2.4	54	8500
4	185	1.6	2.5	2.6	58.8	10500
4	240	1.7	2.5	2.7	64.8	13000
4	300	1.8	2.5	2.9	71.7	16000
4	400	2	3.15	3.2	82.5	21000
5	4	0.7	1.25	1.4	26.3	1200
5	6	0.7	1.25	1.5	27.9	1400
5	10	0.7	1.25	1.5	29.7	1700
5	16	0.7	1.25	1.6	32.2	2250
