CW1308 Cable Description
CW1308 is designed for indoor use and can be mounted on a wall or run through conduits. The standard CW1308 cable features a PVC outer sheath, whereas the low-smoke, halogen-free (LSZH) sheath version is more suitable for commercial and industrial applications.
CW1308 uses solid copper conductors and PVC insulation to provide fixed-line telephone connections as well as connections to other telephone points within the home. CW1308B features an aluminum/polyethylene shielding layer, making it suitable for outdoor environments.
CW1308 Cable Construction
| CW1308 Internal Telecom Cable | CW1308B Internal/External LSZH Telecom Cable | |
|---|---|---|
| Conductor | Class 1 Solid Copper | |
| Insulation | PVC (Polyvinyl Chloride) | |
| Separator | PET (Polyester Tape) | |
| Screen | - | AL/PE (Aluminium/Polyethylene) Tape |
| Outer Sheath | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) |
CW1308 Cable Characteristics
| CW1308 Internal Telecom Cable | CW1308B Internal/External LSZH Telecom Cable | |
|---|---|---|
| Temperature Rating | 0°C to +70°C | |
| Minimum Bending Radius | 8 x overall diameter | 15 x overall diameter |

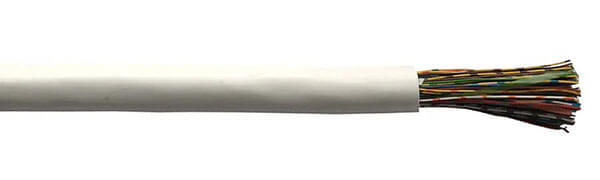

- CW1308 Internal Telecom Cable
- CW1308B Internal/External LSZH Telecom Cable
| NO. OF PAIRS | NOMINAL DIAMETER OF CONDUCTORS mm | CONSTRUCTION | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | 0.5 | 1 x 2PR | 3.5 | 18 |
| 3 | 0.5 | 1 x 3PR | 4.8 | 27 |
| 4 | 0.5 | 1 x 4PR | 5.8 | 32 |
| 6 | 0.5 | 1 x 6PR | 6.8 | 46 |
| 8 | 0.5 | 1 x 8PR | 7.6 | 58 |
| 10 | 0.5 + E | 1 x 10PR + E | 8.8 | 89 |
| 12 | 0.5 | 1 x 12PR | 9.1 | 85 |
| 15 | 0.5 | 1 x 15PR | 9.8 | 102 |
| 16 | 0.5 | 1 x 16PR | 7.9 | 101 |
| 20 | 0.5 + E | 1 x 20PR + E | 12 | 150 |
| 25 | 0.5 + E | 1 x 25PR + E | 11.4 | 160 |
| 30 | 0.5 + E | 3 x 10PR + E | 11.4 | 205 |
| 32 | 0.5 | 4 x 8PR | 12.4 | 200 |
| 40 | 0.5 + E | 4 x 10PR + E | 15 | 270 |
| 50 | 0.5 + E | 5 x 10PR + E | 17 | 330 |
| 64 | 0.5 + E | 1 x 16PR + 6 x 8PR + E | 14.8 | 386 |
| 80 | 0.5 + E | 1 x 20PR + 6 x 10PR + E | 22.5 | 520 |
| 100 | 0.5 + E | 1 x 20PR + 8 x 10PR + E | 27 | 660 |
| 160 | 0.5 + E | 4 x 10PR + 6 x 20PR + E | 30 | 1010 |
| 320 | 0.5 + E | 1 x 20PR + 5 x 20PR + 10 x 20PR + E | 39.5 | 1920 |
| NO. OF PAIRS | NOMINAL DIAMETER OF CONDUCTORS mm | CONSTRUCTION | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 10 | 0.5 + E | 20PR Unit | 7 | 98 |
| 20 | 0.5 + E | 20PR Unit | 9 | 155 |
| 50 | 0.5 + E | 20PR Unit | 13.5 | 325 |
| 75 | 0.5 + E | 20PR Unit | 16 | 470 |
| 80 | 0.5 + E | 20PR Unit | 16.5 | 495 |
| 100 | 0.5 + E | 20PR Unit | 19 | 610 |
| 200 | 0.5 + E | 20PR Unit | 25.6 | 1155 |
