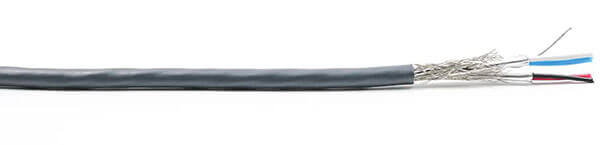

DeviceNet Cable Description
Designed for industrial automation networks, DeviceNet cables are used to connect industrial devices such as sensors and actuators to higher-level devices such as programmable logic controllers (PLCs) and PCs.
DeviceNet cables are available in two main configurations. Thick (backbone) cables are used for the main network backbone, transmitting power and data. Thin (drop) cables connect individual devices to the backbone and are typically used for short distances. Thin (drop) cables connect sensors, actuators, and switches to the DeviceNet™ thick (backbone) cables on Allen Bradley DeviceNet™ systems.
DeviceNet Cable Construction
| DeviceNet LSZH SWB Cable | DeviceNet Thin LSZH Cable | DeviceNet Thick LSZH Cable | |
|---|---|---|---|
| VOLTAGE | 125V | 300V | |
| CONDUCTOR | Data Pair: Class 2 Stranded Tinned Copper - 24AWG (0.25mm²) Power Pair: Class 2 Stranded Tinned Copper - 22AWG (0.35mm²) | Data Pair: Class 2 Stranded Tinned Copper Power Pair: Class 2 Stranded Tinned Copper |
|
| INSULATION | Data: Foam-Skin PE (Polyethylene) Power: Solid PE (Polyethylene) |
||
| SCREEN | Al/PET (Aluminium/Polyester Tape) | ||
| DRAIN WIRE | Tinned Copper | ||
| OVERALL SHIELD | TCWB (Tinned Copper Wire Braid) | ||
| BEDDING | FRNC-LSZH (Flame Retardant Non Corrosive - Low Smoke Zero Halogen) | - | |
| SEPARATOR | - | PET (Polyester Tape) | |
| ARMOUR | GSWB (Galvanised Steel Wire Braid) | - | |
| OUTER SHEATH | FRNC-LSZH (Flame Retardant Non Corrosive - Low Smoke Zero Halogen) | LSZH (Low Smoke Zero Halogen) | |
DeviceNet Cable Characteristics
| DeviceNet LSZH SWB Cable | DeviceNet Thin LSZH Cable | DeviceNet Thick LSZH Cable | |
|---|---|---|---|
| Voltage Rating | 125V | 300V | |
| Temperature Rating | Fixed: -20°C to +80°C Flexed: -5°C to +50°C | -30°C to +80°C | |
| Minimum Bending Radius | 10 x overall diameter | 15 x overall diameter | |
DeviceNet Cable Applications
- Connecting sensors, actuators, and other field devices to controllers like PLCs or PCs.
- Industrial automation networks
- Used in various industrial automation applications where reliable communication between devices is crucial.
- Cost-effective networking
- Provides an open standard for device-level communication, reducing installation and maintenance costs.

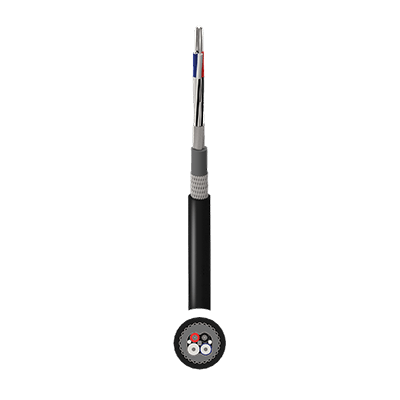

- DeviceNet LSZH SWB Cable
- DeviceNet Thin LSZH Cable

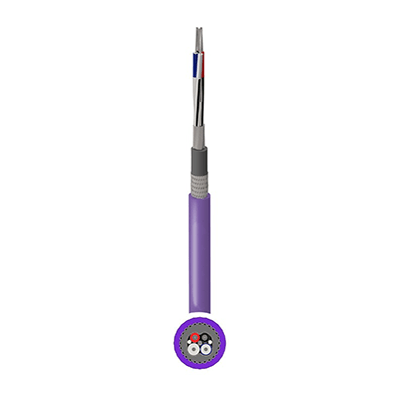

- DeviceNet Thick LSZH Cable
| NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR AWG | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|
| Data Pair | Power Supply Pair | Data Pair | Power Supply Pair | ||
| 0.25 | 0.25 | 24 | 22 | 10.3 | 160 |
| NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR AWG | NOMINAL DIAMETER OF OUTER SHEATH mm | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|
| Data Pair | Power Supply Pair | Data Pair | Power Supply Pair | ||
| 0.25 | 0.35 | 24/19 | 22/19 | 6.9 | 70 |
| NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR AWG | NOMINAL DIAMETER OF OUTER SHEATH mm | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|
| Data Pair | Power Supply Pair | Data Pair | Power Supply Pair | ||
| 0.93 | 1.93 | 18/19 | 15/19 | 11.9 | 220 |
