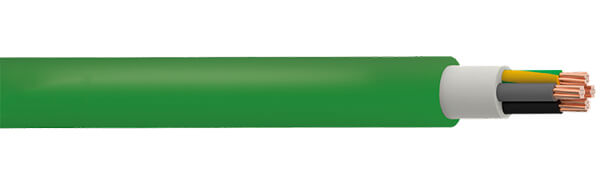

FR-N1 X1G1 Cable Description
FR-N1 X1G1 cables use copper or aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a halogen-free flame-retardant (HFFR) outer sheath. They can be used for power distribution in fixed applications such as cable trays, conduits, or buildings, but not for direct burial. Suitable for locations such as hotels, hospitals, and industrial plants, but not for applications requiring circuit integrity under fire conditions.
For the same specifications, aluminum core cables are lighter than copper core cables, but require a larger cross-sectional area to achieve the same current-carrying capacity. Therefore, copper core cables should be chosen when installation space is limited.
FR-N1 X1G1 Cable Construction
- Conductor
- Class 2 Copper / Aluminium
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Inner Sheath
- Halogen-free polymer or tape
- Outer Sheath
- HFFR (Halogen Free Flame Retardant)
FR-N1 X1G1 Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Temperature Rating
- Minimum laying temperature: -20ºC
- Operating temperature: -25ºC to +65ºC
- Maximum Conductor temperature: +90ºC
- Short Circuit Temperature
- 250°C
- Minimum Bending Radius
- Single core: 15 x overall diameter
- Multi-core: 12 x overall diameter
- FR-N1 X1G1 Cable
- FR-N1 X1G1-AR Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 25 | 10.4 | 300 |
| 1 | 35 | 11.3 | 390 |
| 1 | 50 | 12.7 | 510 |
| 1 | 70 | 14.5 | 720 |
| 1 | 95 | 16.5 | 975 |
| 1 | 120 | 18.1 | 1210 |
| 1 | 150 | 20 | 1485 |
| 1 | 185 | 22.1 | 1845 |
| 1 | 240 | 24.7 | 2385 |
| 1 | 300 | 27.5 | 3005 |
| 2 | 4 | 11 | 205 |
| 2 | 6 | 12.4 | 270 |
| 2 | 10 | 14.1 | 385 |
| 2 | 16 | 16.2 | 545 |
| 2 | 25 | 19.1 | 805 |
| 2 | 35 | 21 | 1035 |
| 3 | 4 | 11.6 | 245 |
| 3 | 6 | 13.1 | 325 |
| 3 | 10 | 14.9 | 475 |
| 3 | 16 | 17.1 | 685 |
| 3 | 25 | 20.3 | 1020 |
| 3 | 35 | 22.4 | 1335 |
| 3 | 50 | 28 | 1905 |
| 3 | 50/35 | 29.7 | 2203 |
| 3 | 70 | 32.1 | 2650 |
| 3 | 70/50 | 34.2 | 3105 |
| 3 | 95 | 36.2 | 3545 |
| 3 | 95/50 | 37.7 | 3950 |
| 3 | 120 | 39.8 | 4380 |
| 3 | 120/70 | 41.9 | 4995 |
| 3 | 150 | 20 | 1485 |
| 3 | 150/70 | 45.2 | 5905 |
| 3 | 185 | 48.6 | 6660 |
| 3 | 185/70 | 49.4 | 7150 |
| 3 | 240 | 54.2 | 8555 |
| 3 | 240/95 | 55.2 | 9250 |
| 3 | 300 | 59.9 | 10700 |
| 4 | 4 | 12.6 | 290 |
| 4 | 6 | 14.2 | 390 |
| 4 | 10 | 16.3 | 585 |
| 4 | 16 | 18.5 | 845 |
| 4 | 25 | 22.3 | 1285 |
| 4 | 35 | 24.8 | 1700 |
| 4 | 50 | 30.8 | 2405 |
| 4 | 70 | 35.3 | 3365 |
| 4 | 95 | 39.9 | 4505 |
| 4 | 120 | 44.1 | 5605 |
| 4 | 150 | 48.5 | 6845 |
| 4 | 185 | 53.9 | 8530 |
| 4 | 240 | 60.1 | 10970 |
| 4 | 300 | 66.7 | 13770 |
| 5 | 4 | 13.6 | 355 |
| 5 | 6 | 15.5 | 475 |
| 5 | 10 | 17.8 | 715 |
| 5 | 16 | 20.3 | 1035 |
| 5 | 25 | 24.5 | 1580 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 16 | RM | 9.5 | 110 |
| 1 | 25 | RM | 11 | 157 |
| 1 | 35 | RM | 12 | 193 |
| 1 | 50 | RM | 13 | 243 |
| 1 | 70 | RM | 15 | 322 |
| 1 | 95 | RM | 17 | 420 |
| 1 | 120 | RM | 18.5 | 514 |
| 1 | 150 | RM | 20.5 | 628 |
| 1 | 185 | RM | 23 | 810 |
| 1 | 240 | RM | 25.5 | 1023 |
| 1 | 300 | RM | 29 | 1255 |
| 1 | 400 | RM | 33 | 1615 |
| 1 | 500 | RM | 36.5 | 1940 |
| 2 | 16 | RM | 16 | 417 |
| 2 | 25 | RM | 19.5 | 615 |
| 2 | 35 | RM | 21.5 | 745 |
| 3 | 16 | RM | 17 | 455 |
| 3 | 25 | RM | 20.5 | 825 |
| 3 | 35 | RM | 23 | 825 |
| 3 | 50 | RM | 26 | 1045 |
| 3 | 50+35 | RM | 27.5 | 1170 |
| 3 | 70 | RM | 30.5 | 1410 |
| 3 | 70+35 | RM | 31.3 | 1495 |
| 3 | 70+50 | RM | 32.5 | 1580 |
| 3 | 95 | RM | 34 | 1810 |
| 3 | 95+50 | RM | 36 | 1965 |
| 3 | 120 | RM | 37.5 | 2260 |
| 3 | 120+70 | RM | 40 | 2480 |
| 3 | 150 | RM | 42 | 2760 |
| 3 | 150+70 | RM | 44 | 2940 |
| 3 | 185 | RM | 46.5 | 3510 |
| 3 | 185+70 | RM | 48 | 3680 |
| 3 | 240 | RM | 55.5 | 4640 |
| 4 | 16 | RM | 18.5 | 530 |
| 4 | 25 | RM | 22.5 | 785 |
| 4 | 35 | RM | 25 | 970 |
| 4 | 50 | RM | 28.5 | 1250 |
| 4 | 70 | RM | 33.5 | 1685 |
| 4 | 95 | SM | 37.5 | 2170 |
| 4 | 120 | RM | 42 | 2730 |
| 4 | 150 | RM | 46.5 | 3310 |
| 4 | 185 | RM | 54 | 4225 |
| 4 | 240 | RM | 60.5 | 5315 |
