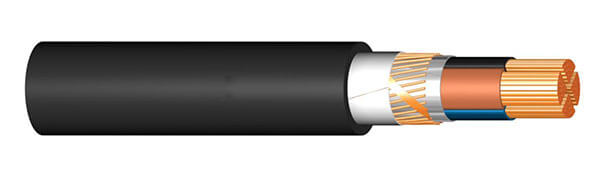

FXQJ Cable Description
FXQJ cable features copper conductors, cross-linked polyethylene (XLPE) insulation, a halogen-free flame-retardant (HFFR) underlay, and a low-smoke halogen-free (LSZH) outer sheath. The EMC version features copper wire and copper tape shielding, providing 100% electromagnetic compatibility coverage. An aluminum-core AXQJ cable is also available as a counterpart.
FXQJ Cable Construction
| FXQJ Cable | FXQJ EMC Cable | |
|---|---|---|
| Conductor | Class 2 stranded copper | |
| Insulation | XLPE (Cross-linked Polyethylene) | |
| Filler | HFFR (Halogen Free Flame Retardant) | |
| Screen | Copper wires in open helix | Copper wires and tape (100% coverage) |
| Outer Sheath | LSZH (Low Smoke Zero Halogen) | |
FXQJ Cable Characteristics
| FXQJ Cable | FXQJ EMC Cable | |
|---|---|---|
| Voltage Rating | 0.6/1kV | |
| Temperature Rating | Minimum installation Temp: -10°C Operating Temp: -40°C to +70°C Short-circuit max. conductor temperature: 250°C | Minimum installation Temp: -10°C Operating Temp: -40°C to +90°C |
| Minimum Bending Radius | Installation: 8 x overall diameter Operation: 12 x overall diameter | 8 x overall diameter |
- FXQJ Cable
- FXQJ EMC Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL CROSS SECTIONAL AREA OF SCREEN mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 4 | 2.5 | 2.5 | 14.5 | 29 |
| 4 | 6 | 6 | 17 | 50 |
| 4 | 10 | 10 | 20.2 | 75 |
| 4 | 16 | 16 | 23 | 106 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 3 | 2.5/2.5 | 13.0 | 280 |
| 3 | 6/6 | 16.0 | 460 |
| 3 | 10/10 | 19.0 | 680 |
| 3 | 16/16 | 21.0 | 930 |
| 3 | 25/16 | 25.0 | 1330 |
| 3 | 35/16 | 27.0 | 1680 |
| 3 | 50/25 | 27.0 | 1920 |
| 3 | 70/35 | 31.0 | 2690 |
| 3 | 95/50 | 35.0 | 3560 |
| 3 | 120/70 | 38.0 | 4480 |
| 3 | 150/70 | 41.0 | 5320 |
| 3 | 185/95 | 45.0 | 6550 |
| 3 | 240/120 | 52.0 | 8600 |
| 3 | 300/150 | 58.0 | 10500 |
| 4 | 2.5/2.5 | 14.5 | 300 |
| 4 | 6/6 | 17.5 | 520 |
| 4 | 10/10 | 20.5 | 780 |
| 4 | 16/16 | 22.5 | 1100 |
| 4 | 25/16 | 26.5 | 1600 |
| 4 | 35/16 | 29.0 | 1990 |
| 4 | 50/25 | 29.0 | 2900 |
| 4 | 70/35 | 34.0 | 3220 |
| 4 | 95/50 | 38.0 | 4370 |
| 4 | 120/70 | 42.0 | 5600 |
| 4 | 150/70 | 47.5 | 6800 |
| 4 | 185/95 | 51.5 | 8300 |
| 4 | 240/120 | 58.0 | 10800 |
| 4 | 300/150 | 65.0 | 13500 |
