2491B Cable Description
2491B / 6701B is designed for applications such as switch controls, relays, and instrument panels for power switchgear, as well as internal connectors in rectifier equipment, motor starters, and controllers. Its flexibility makes it easier to install in tight spaces such as control cabinets and conduits.
2491B / 6701B uses EI5 type thermosetting LSZH insulation material. These cables do not produce corrosive gases when burned, which is particularly important for installing electronic equipment.

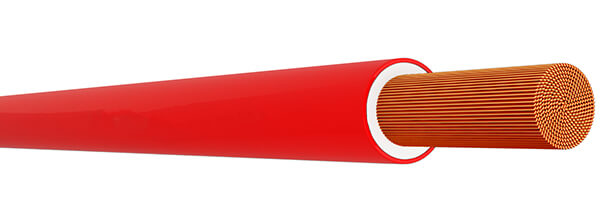

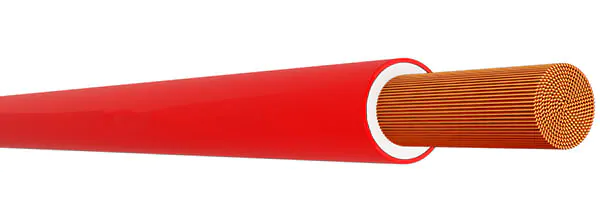

2491B Cable Construction
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- LSZH (Low Smoke Zero Halogen)
2491B Cable Characteristics
- Voltage Rating Uo/U
- H05Z-K – 0.5mm² to 1mm²: 300/500V
- H07Z-K – 1.5mm² to 240mm²: 450/750V
- Temperature Rating
- -25°C to +90°C
- Minimum Bending Radius
- Up to 35mm2: 4 x overall diameter
- 50mm2 and above: 6 x overall diameter
2491B Cable Colur Code
Green/Yellow, Black, Blue, Brown, Red, White, Yellow, Grey, Violet, Grey, Orange, Pink
2491B Cable Specifications
| NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | MINIMUM RESISTANCE OF INSULATION AT 90°C Mohms/km | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|
| Lower Limit | Upper Limit | ||||
| 0.5 | 0.6 | 2.1 | 2.6 | 0.015 | 8.7 |
| 0.75 | 0.6 | 2.2 | 2.8 | 0.011 | 11.3 |
| 1 | 0.6 | 2.4 | 2.9 | 0.01 | 13.9 |
| 1.5 | 0.7 | 2.8 | 3.5 | 0.01 | 19.3 |
| 2.5 | 0.8 | 3.4 | 4.3 | 0.009 | 30.9 |
| 4 | 0.8 | 3.9 | 4.9 | 0.007 | 44.9 |
| 6 | 0.8 | 4.4 | 5.5 | 0.006 | 64.2 |
| 10 | 1 | 5.7 | 7.1 | 0.0056 | 108.2 |
| 16 | 1 | 6.7 | 8.4 | 0.0046 | 163.4 |
| 25 | 1.2 | 8.4 | 10.6 | 0.0044 | 248.1 |
| 35 | 1.2 | 9.7 | 12.1 | 0.0038 | 340.6 |
| 50 | 1.4 | 11.5 | 14.4 | 0.0037 | 484.2 |
| 70 | 1.4 | 13.2 | 16.6 | 0.0032 | 671 |
| 95 | 1.6 | 15.1 | 18.8 | 0.0032 | 895.8 |
| 120 | 1.6 | 16.7 | 20.9 | 0.0029 | 1111.1 |
| 150 | 1.8 | 18.6 | 23.3 | 0.0029 | 1389.2 |
| 185 | 2 | 20.6 | 25.8 | 0.0029 | 1724.1 |
| 240 | 2.2 | 23.5 | 29.4 | 0.0028 | 2225.4 |
