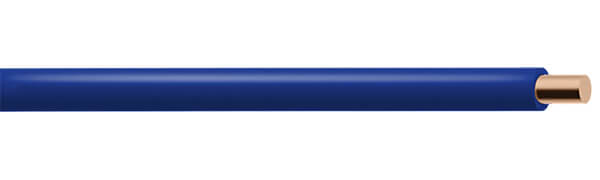

H05Z-U and H07Z-U Cable Description
H05Z-U and H07Z-U use Category 1 solid copper conductors and low-smoke halogen-free (LSZH) insulation. Their insulation reduces the emission of smoke and corrosive gases in a fire, making them suitable for installation environments where both sensitive equipment and safe evacuation of personnel must be considered in the event of a fire.
This cable is a Category 1 solid copper version of the 2491B H05Z-K/H07Z-K cable (Category 5 flexible stranded cable) and the 6491B H07Z-R cable (Category 2 stranded cable).
H05Z-U and H07Z-U Cable Construction
- Conductor
- Class 1 solid Copper
- Insulation
- LSZH (Low Smoke Zero Halogen)
H05Z-U and H07Z-U Cable Characteristics
- Voltage Rating
- H05Z-U: 300/500V
- H07Z-U: 450/750V
- Temperature Rating
- Maximum conductor operating temperature: 90°C
- Maximum conductor short-circuit temperature: 250°C
- Minimum installation temperature: 5°C
- H05Z-U Cable
- H07Z-U Cable
| NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL CABLE WEIGHT kg/km |
|---|---|---|---|
| 0.5 | 1.9 | 2.4 | 7.1 |
| 0.75 | 2.1 | 2.6 | 9.7 |
| 1 | 2.2 | 2.8 | 12.1 |
| NOMINAL CROSS SECTIONAL AREA mm² | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL CABLE WEIGHT kg/km |
|---|---|---|---|
| 1.5 | 2.6 | 3.3 | 18 |
| 2.5 | 3.2 | 4 | 29 |
| 4 | 3.6 | 4.6 | 44 |
| 6 | 4.1 | 5.2 | 62 |
| 10 | 5.3 | 6.6 | 103 |
