H05Z1-K / H07Z1-K Cable Description
This cable uses bare copper or tinned copper conductors and halogen-free flame-retardant insulation. It is designed for internal wiring in distribution panels, electrical appliances, and protected fixtures. It can be installed on, inside, and beneath drywall, as well as in enclosed conduits. Suitable for public places with high fire risk or high pedestrian traffic (such as airports, hospitals, schools, and shopping malls).

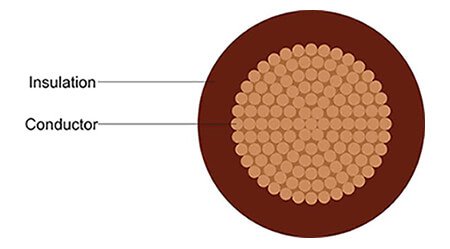

H05Z1-K / H07Z1-K Cable Construction
- Conductor
- Class 5 stranded plain or tinned copper
- Insulation
- Halogen-free thermoplastic compound
H05Z1-K / H07Z1-K Cable Characteristics
- Voltage Rating
- H05Z1-K: 300 / 500V
- H07Z1-K: 450 / 750V
- Temperature Range
- -30°C to +70°C
H05Z1-K / H07Z1-K Cable Specification
| Nominal Cross Sectional Area (Sq. mm) | Nominal Thickness of Insulation (mm) | Mean Overall Diameter‑Lower Limit (mm) | Mean Overall Diameter‑Upper Limit (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| H05Z1‑K | ||||
| 0.5 | 0.6 | 2.1 | 2.5 | 9.5 |
| 0.75 | 0.6 | 2.2 | 2.7 | 12.5 |
| 1 | 0.6 | 2.4 | 2.8 | 15.5 |
| H07Z1‑K | ||||
| 1.5 | 0.7 | 2.8 | 3.4 | 21.5 |
| 2.5 | 0.8 | 3.4 | 4.1 | 33.5 |
| 4 | 0.8 | 3.9 | 4.8 | 48 |
| 6 | 0.8 | 4.4 | 5.3 | 67 |
| 10 | 1.0 | 5.7 | 6.8 | 113 |
| 16 | 1.0 | 6.7 | 8.1 | 171 |
| 25 | 1.2 | 8.4 | 10.2 | 262 |
| 35 | 1.2 | 9.7 | 11.7 | 360 |
| 50 | 1.4 | 11.5 | 13.9 | 513 |
| 70 | 1.4 | 13.2 | 16.0 | 705 |
| 95 | 1.6 | 15.1 | 18.2 | 931 |
| 120 | 1.6 | 16.7 | 20.2 | 1175 |
| 150 | 1.8 | 18.6 | 22.5 | 1264 |
| 185 | 2.0 | 20.6 | 24.9 | 1783 |
| 240 | 2.2 | 23.5 | 28.4 | 2341 |
