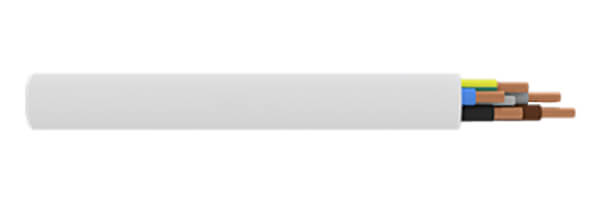

318-B / H05Z1Z1-F Cable Description
Common uses for 318B cable include pendant lights, general power wiring, and wiring in public areas where fire safety is critical, such as hospitals, shopping centers, and airports. It is typically available in white or black sheaths, with a variety of core colors.
The cable is manufactured by BS EN 50525-3-11. 318B is equivalent to coordination code H05Z1Z1-F.
318-B / H05Z1Z1-F Cable Construction
- Conductor
- Class 5 Flexible Stranded Copper
- Insulation
- LSZH (Low Smoke Zero Halogen)
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
318-B / H05Z1Z1-F Cable Characteristics
- Voltage Rating (Uo/U)
- 300/500V
- Temperature Rating
- +5°C to +70°C
- Minimum Bending Radius
- 5 x overall diameter
318-B / H05Z1Z1-F Cable Colur Code
- 2 Core: Brown and Blue.
- 3 Core: Brown, Blue, and Green/Yellow.
- 4 Core: Brown, Black, Grey, and Green/Yellow.
- 5 Core: Brown, Black, Grey, Blue, and Green/Yellow.
- 6 Core: Brown, Black, Blue, Red, White, and Green/Yellow.
- 7 Core: Center White, surrounded by Brown, Black, Green, Blue, Red, and Yellow.

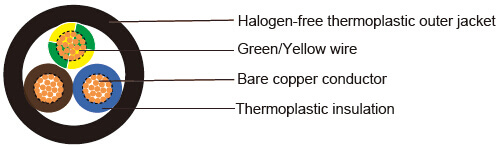

318-B / H05Z1Z1-F Cable Diagram
318-B / H05Z1Z1-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | 0.75 | 0.6 | 6.3 | 57 |
| 2 | 1 | 0.6 | 6.6 | 65 |
| 2 | 1.5 | 0.7 | 7.4 | 84 |
| 2 | 2.5 | 0.8 | 9 | 130 |
| 2 | 4 | 0.8 | 10.4 | 180 |
| 3 | 0.75 | 0.6 | 6.7 | 68 |
| 3 | 1 | 0.6 | 7 | 78 |
| 3 | 1.5 | 0.7 | 8 | 107 |
| 3 | 2.5 | 0.8 | 9.9 | 163 |
| 3 | 4 | 0.8 | 11.1 | 212 |
| 4 | 0.75 | 0.6 | 7.3 | 83 |
| 4 | 1 | 0.6 | 7.9 | 100 |
| 4 | 1.5 | 0.7 | 9 | 134 |
| 4 | 2.5 | 0.8 | 10.8 | 201 |
| 4 | 4 | 0.8 | 12.2 | 290 |
| 5 | 0.75 | 0.6 | 8.1 | 103 |
| 5 | 1 | 0.6 | 8.3 | 130 |
| 5 | 1.5 | 0.7 | 10.4 | 170 |
| 5 | 2.5 | 0.8 | 12.1 | 255 |
| 5 | 4 | 0.8 | 15 | 360 |
