6491B / H07Z-R Cable Description
6491B / H07Z-R cable has Low Smoke Zero Halogen (LSZH) insulation and is suitable for installation in public buildings where smoke and toxic gases pose a threat to life and equipment in the event of a fire. A variety of colours are available, including brown, blue, black, green/yellow, and grey.
The cable complies with BS EN 50525-3-41. Also known as Low Smoke Zero Halogen Single Strand or LSZH Ground Cable.

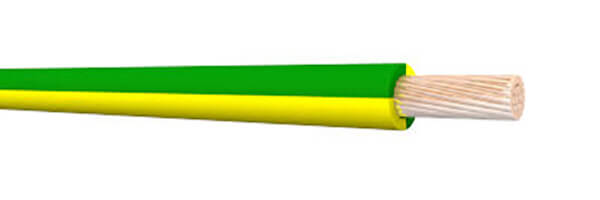

6491B / H07Z-R Cable Construction
- Conductor
- Class 2 Stranded Copper
- Outer Sheath
- LSZH (Low Smoke Zero Halogen)
6491B / H07Z-R Cable Characteristics
- Voltage Rating Uo/U
- 450/750V
- Temperature Rating
- Fixed: 0°C to +90°C
- Minimum Bending Radius
- 6 x overall diameter
6491B / H07Z-R Cable Applications
For use in conduits, raceways and other fixed protection installations including lighting, appliances and switchgear.
6491B / H07Z-R Cable Specifications
| NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1.5 | 0.7 | 3.4 | 22 |
| 2.5 | 0.8 | 4.1 | 35 |
| 4 | 0.8 | 4.7 | 50 |
| 6 | 0.8 | 5.4 | 72 |
| 10 | 1 | 6.8 | 121 |
| 16 | 1 | 8 | 182 |
| 25 | 1.2 | 9.8 | 285 |
| 35 | 1.2 | 11 | 390 |
| 50 | 1.4 | 13.2 | 510 |
| 70 | 1.4 | 15.1 | 710 |
| 95 | 1.6 | 17 | 980 |
| 120 | 1.6 | 19 | 1220 |
| 150 | 1.8 | 21 | 1500 |
| 185 | 2 | 23.5 | 1910 |
| 240 | 2.2 | 26.5 | 2490 |
| 300 | 2.4 | 29.5 | 3100 |
| 400 | 2.6 | 33.5 | 3950 |
| 500 | 2.8 | 37 | 5000 |
| 630 | 2.8 | 41 | 6350 |
